Removal (Air Suspension)
- Disconnect fuse on air supply system so that there is no unintentional system regulation. Slacken pipes on distributor block so as to reduce system pressure.
- Raise wheel carrier with workshop. Release locking clip (1). See Figure.
- Remove wheel.
- Remove collar nut. See Fig 1.
- Press out axle shaft with special tool (33 2 111/116/117) with 5 wheel studs (1). Grip with tire iron (2) in so doing. See Fig 2.
- Remove handbrake shoes with brake shoe expander. Remove ABS speed sensor. See appropriate article in BRAKES.
- Remove nut and screw for swinging arm. See Figure.

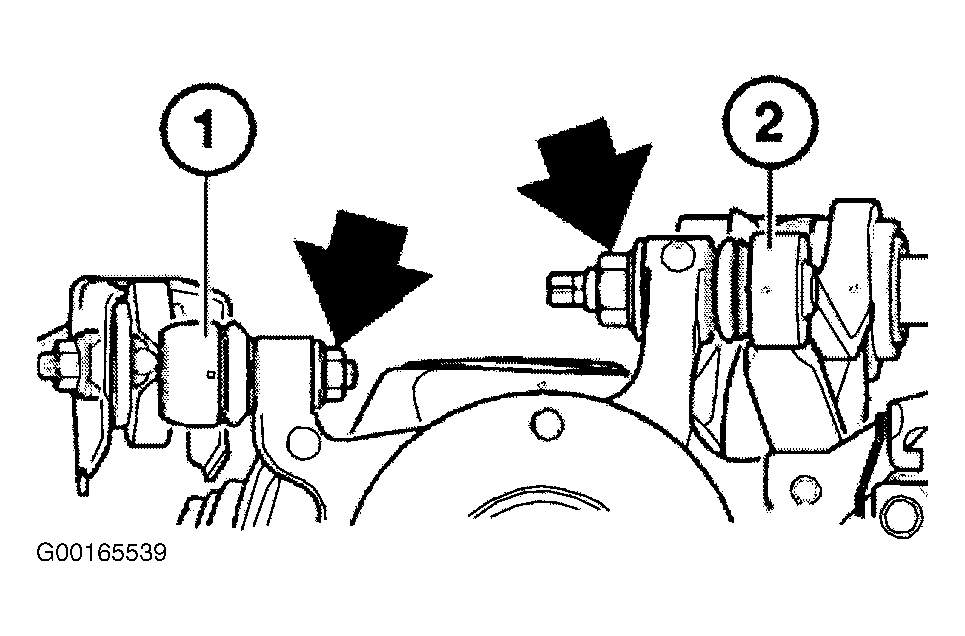

- Unfasten nut from traction strut (1) and control arm (2) on wheel carrier. Brace on hexagon if necessary. See Fig 3.
- Remove wheel carrier.
- To install, reverse removal procedure. Ensure tapered pins and holes are free of grease. Replace nuts. Tighten fasteners to specification. See TORQUE SPECIFICATIONS
.
- When pulling in axle shaft, lightly oil axle shaft splines and insert into drive flange splines. Screw special tool (33 2 118) onto axle shaft. Screw on special tool (33 2 116) with 5 wheel studs (1). Install axle shaft with special tool (33 2 115). See Fig 4.
- Replace collar nut and tighten to specification. See TORQUE SPECIFICATIONS
. Secure collar nut by calking it at flat area of shaft. See Fig 1.
- The lug (1) must lie in the recess of the wheel carrier hole. See Figure.
