Suspension - Rear: Description

The X5 (E53) uses independent rear suspension. The differential is mounted to the rear axle carrier with rubber mounts. The shock absorber and coil springs are installed separately. See Fig 1.

For information on electronic air suspension system, see ELECTRONIC - X5 article.

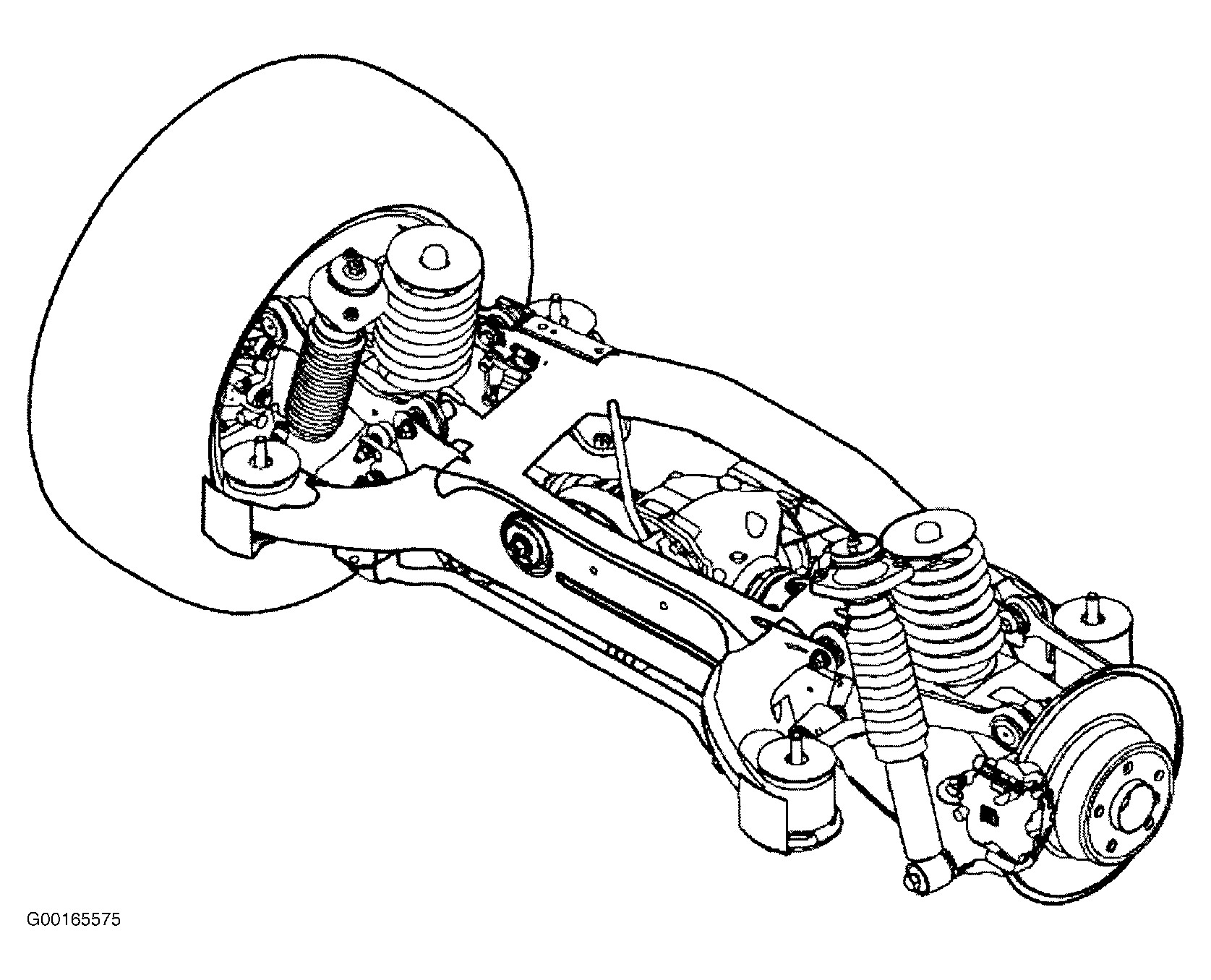

Fig 1: Identifying Rear Axle Assembly

Courtesy of BMW OF NORTH AMERICA, INC.
