65 52 010 Removing and installing on-board monitor

Remove center fresh air grill. Refer to 64 22 161 REMOVING AND INSTALLING/REPLACING FRESH-AIR GRILL CENTER .

Detach felt strips (1) in lower area and fold upwards.

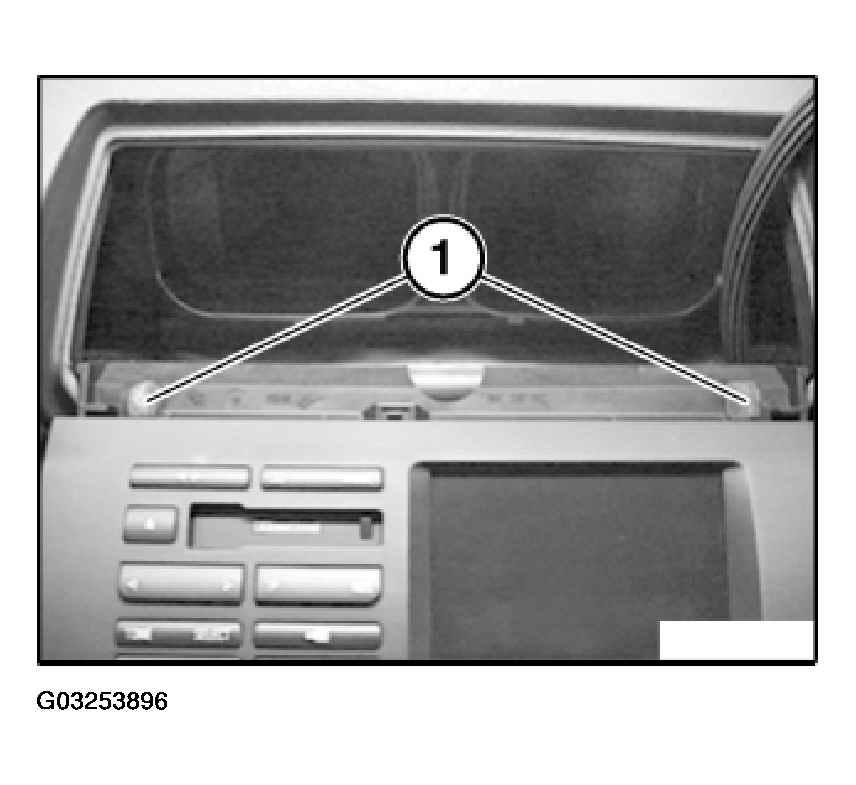

Fig 1: Detaching Felt Strips In Lower Area

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

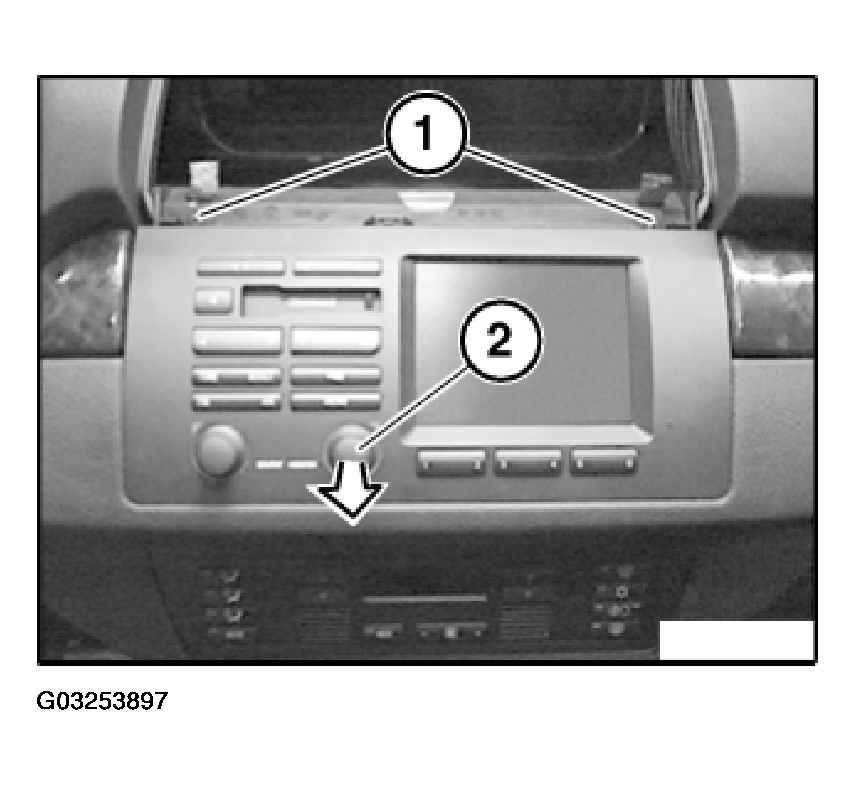

Fig 2: Detaching Rotary Knob

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rotary knob (2).

Insert suitable screwdriver in aperture.

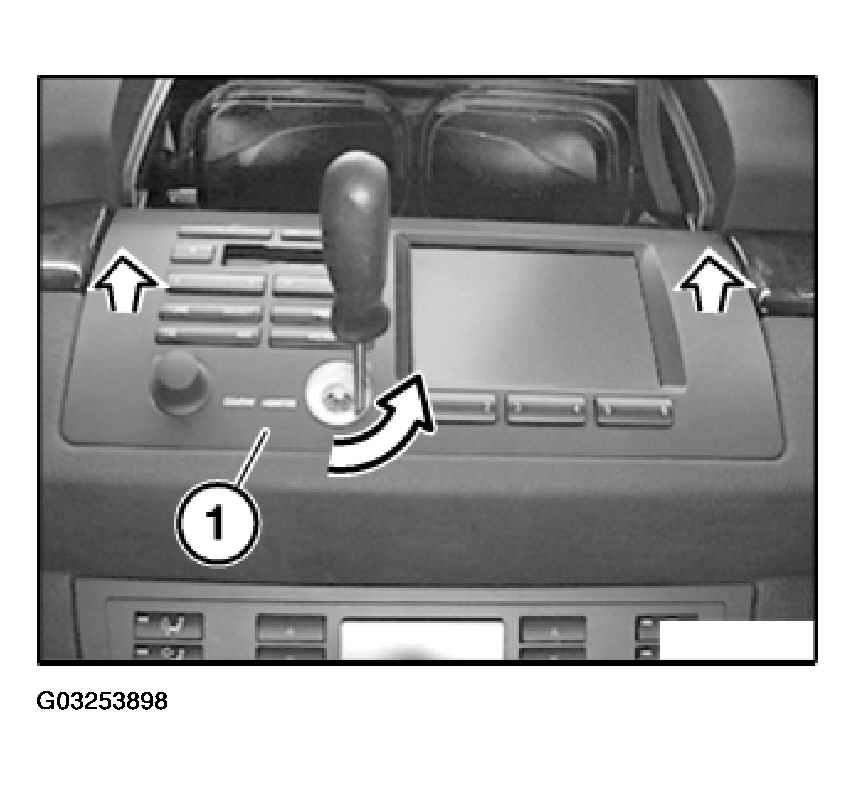

Fig 3: Unlocking On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Turn screwdriver approx. 45° in direction of arrow and unlock on-board monitor.

Withdraw on-board monitor (1) and disconnect plug connections.

Installation:

On-board monitor (1) must snap securely into place in lower lock.
