65 13 070 Removing and installing/replacing speaker (on window frame, left or right)

WARNING: This page is about a different variant/trim than selected.

Remove front left or right door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Gently press trim (1) to one side.

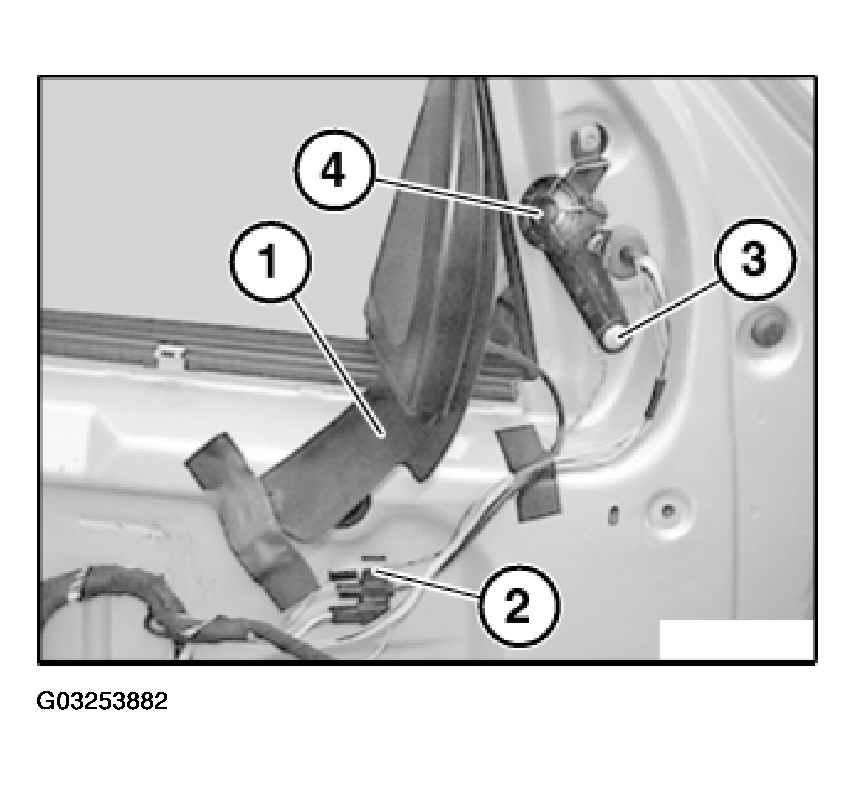

Fig 1: Removing Speaker
G03253882Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (2).

Release screw (3) and remove speaker (4).
