65 24 100 Removing and installing/replacing antenna (AM sensor)

Remove upper trim for rear lid upper section. Refer to 51 49 056 REMOVING AND INSTALLING/REPLACING UPPER TRIM FOR REAR LID UPPER SECTION .

Remove rear spoiler. Refer to 51 71 412 REMOVING AND INSTALLING REAR SPOILER .

Disconnect plug connection (1) and insert through opening.

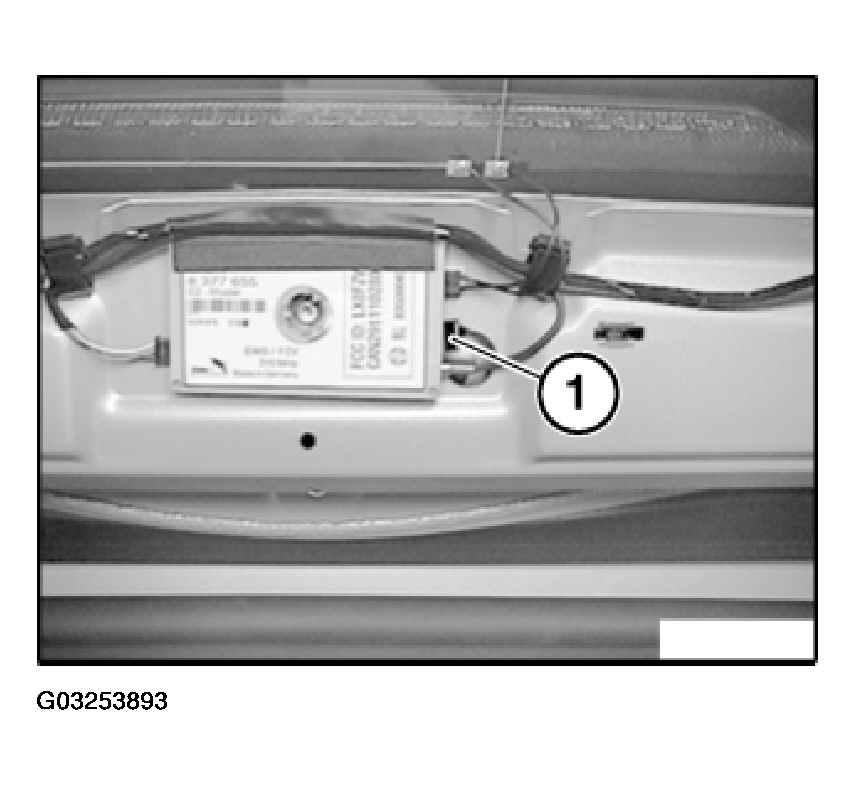

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out rubber grommet (1).

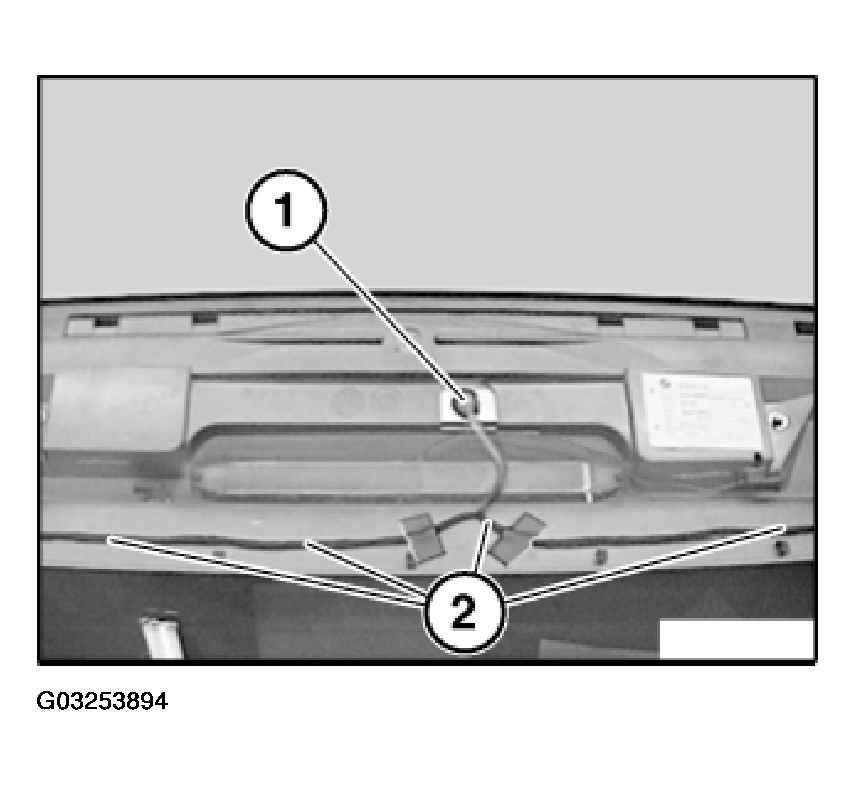

Fig 2: Removing Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

Detach antenna (2) and remove.

Installation:

Clean glued area.
