65 81 010 Removing And Installing/Replacing MULTIINFORMATION Display

WARNING: This page is about a different variant/trim than selected.

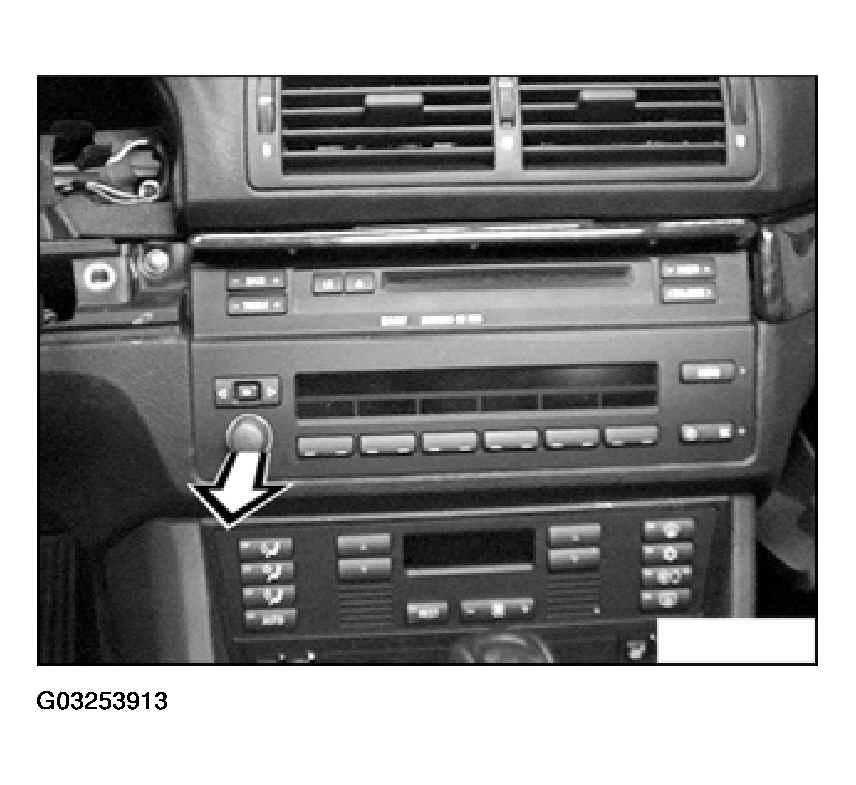

Remove volume control knob.

Fig 1: Removing Volume Control Knob

Courtesy of BMW OF NORTH AMERICA, INC.

Turn lock with Torx screwdriver through approx. 90° and pull out multi-information display.

Fig 2: Removing Multi-Information Display

Courtesy of BMW OF NORTH AMERICA, INC.

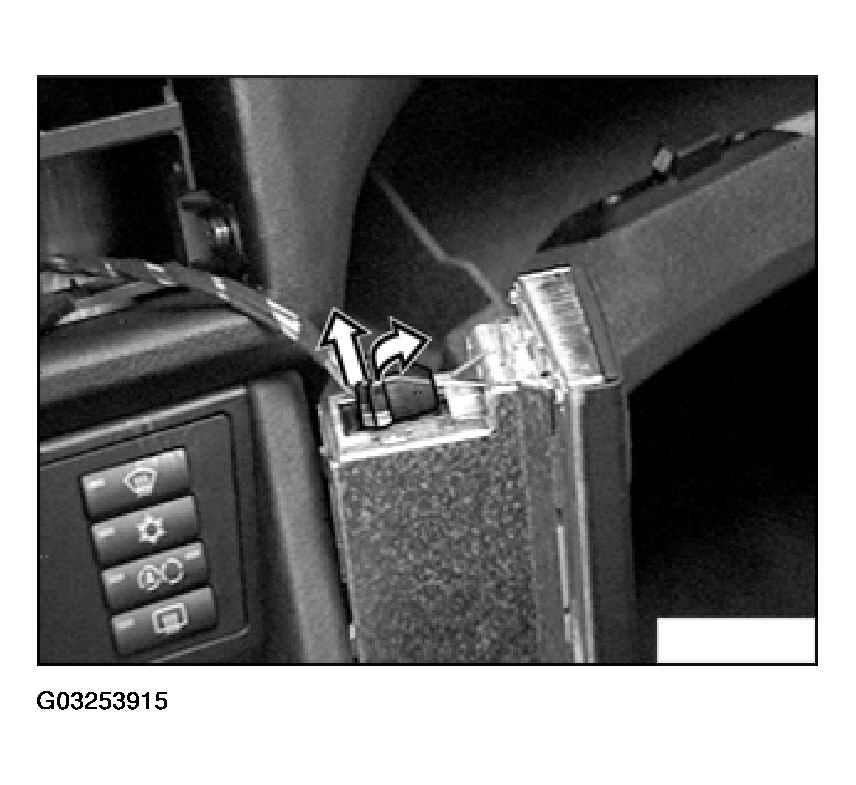

Disconnect plug connection.

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
