65 90 540 Removing and installing/replacing antenna of Global Positioning System (GPS)

WARNING: This page is about a different variant/trim than selected.

Remove rear spoiler lower section. Refer to 51 71 415 REMOVING AND INSTALLING REAR SPOILER LOWER SECTION .

Disconnect antenna plug (1) and unclip antenna cable.

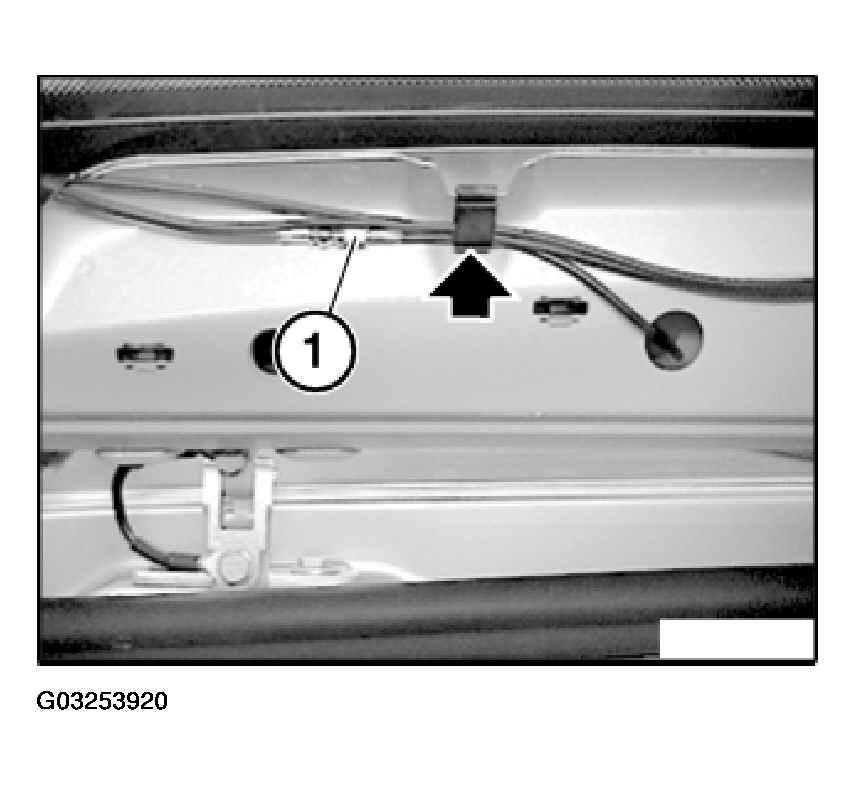

Fig 1: Disconnecting Antenna Plug
G03253920Courtesy of BMW OF NORTH AMERICA, INC.

Pull out rubber grommet (1).

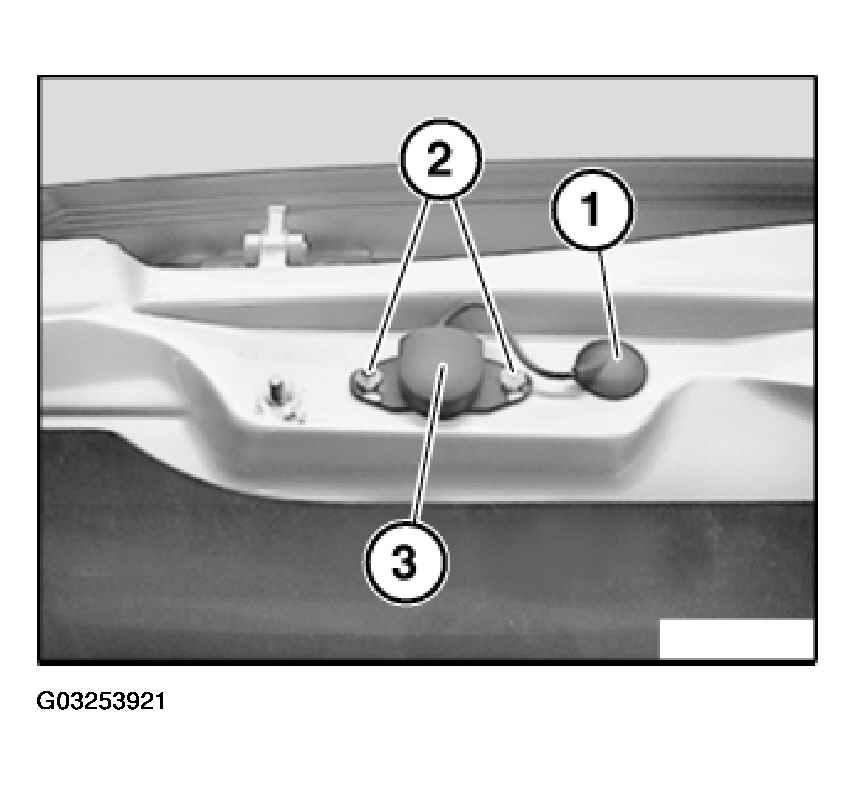

Fig 2: Removing Antenna Of Global Positioning System
G03253921Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (2) and remove antenna of Global Positioning System (3).
