65 90 520 Removing and installing/replacing receiver module of Global Positioning System (GPS)

Remove flap in luggage compartment trim panel on left. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

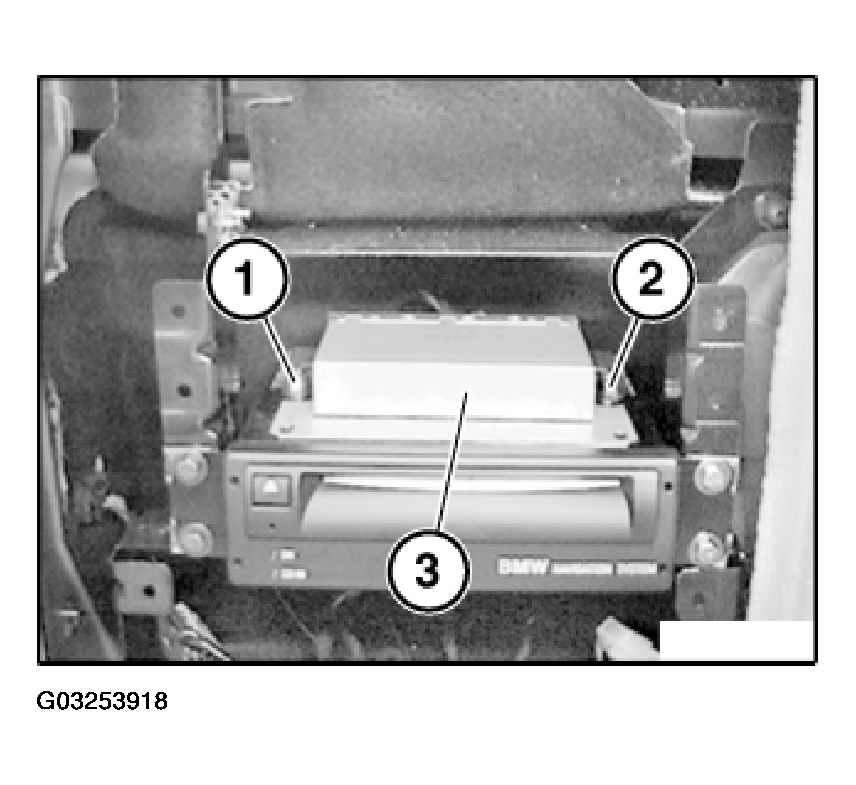

Release nut (1) gently and release nut (2).

Remove receiver module (3).

Fig 1: Removing Receiver Module

Courtesy of BMW OF NORTH AMERICA, INC.

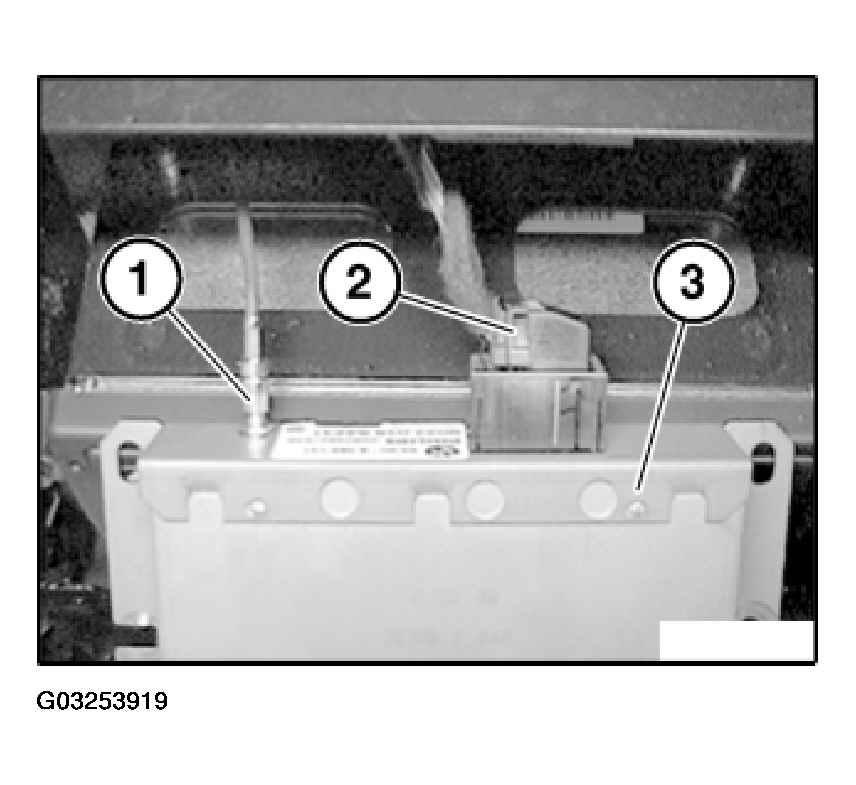

Disconnect antenna plug (1) and plug connection (2).

Fig 2: Disconnecting Antenna Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Remove receiver module (3).
