65 90 510 Removing And Installing/Replacing Navigation Computer With Cd-Drive
WARNING: This page is about a different variant/trim than selected.
Special tools required:
- 65 5 400
Replacement:
Load operating software and carry out coding (refer to Diagnosis and Information System).
Remove flap in luggage compartment trim panel on left. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

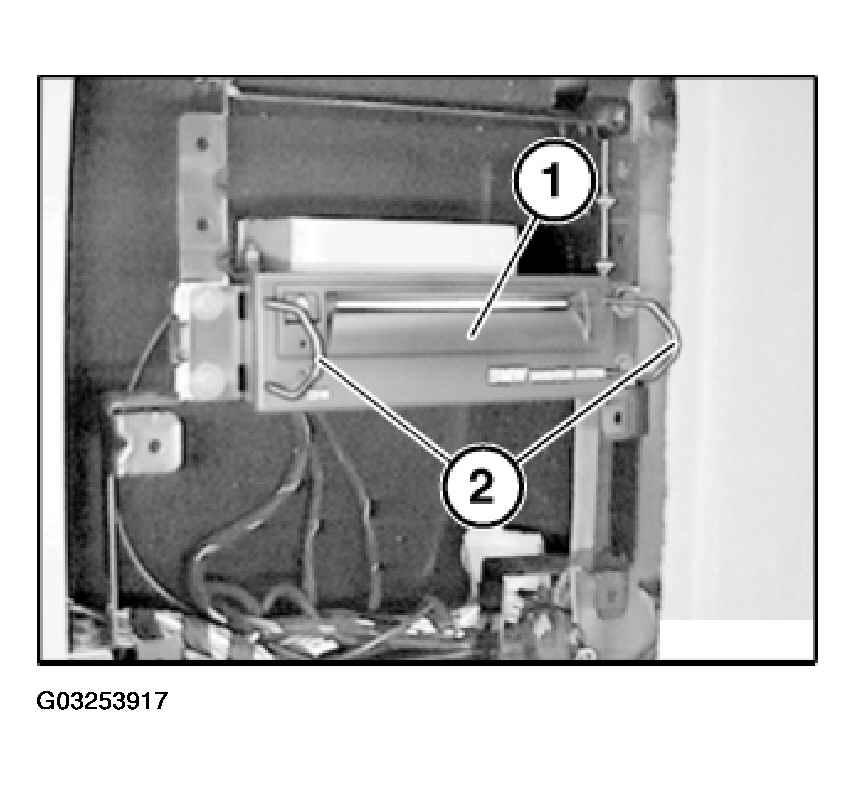

Release navigation computer (1) with special tool 65 5 400 (2) and pull out.
Unfasten plug connection.
