65 11 070 Removing And Installing/Replacing Cd Changer

WARNING: This page is about a different variant/trim than selected.

Remove flap in luggage compartment trim panel on left. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

Release screws (1).

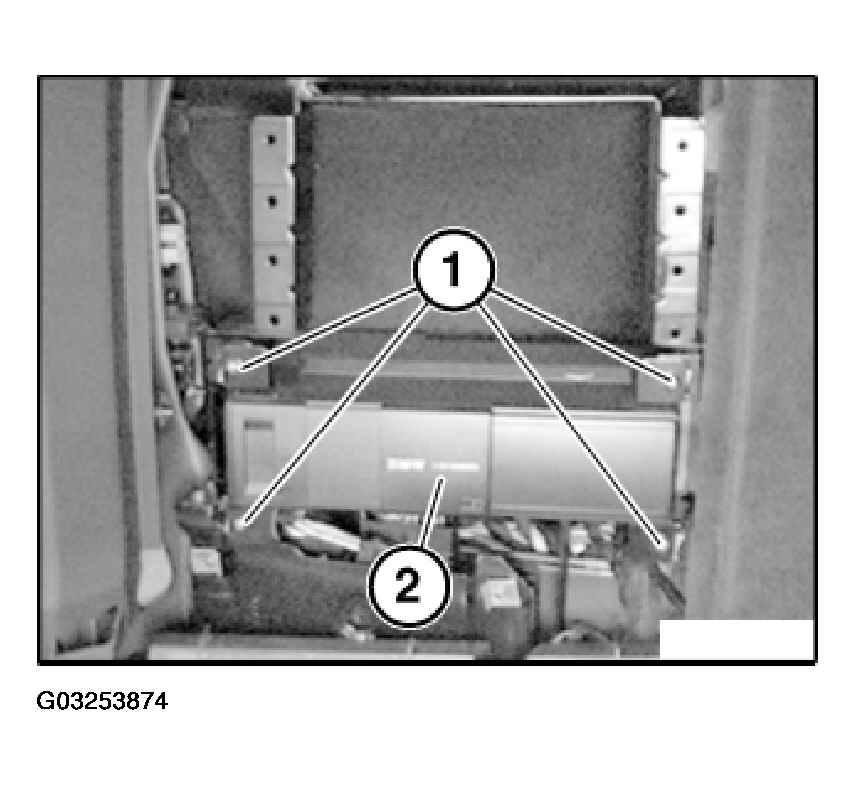

Fig 1: Removing CD Changer
G03253874Courtesy of BMW OF NORTH AMERICA, INC.

Pull out CD changer (2) and disconnect plug connections.

Replacement:

Remove CD changer holder.
