65 11 055 Removing and installing / replacing radio receiver (with board monitor)

WARNING: This page is about a different variant/trim than selected.

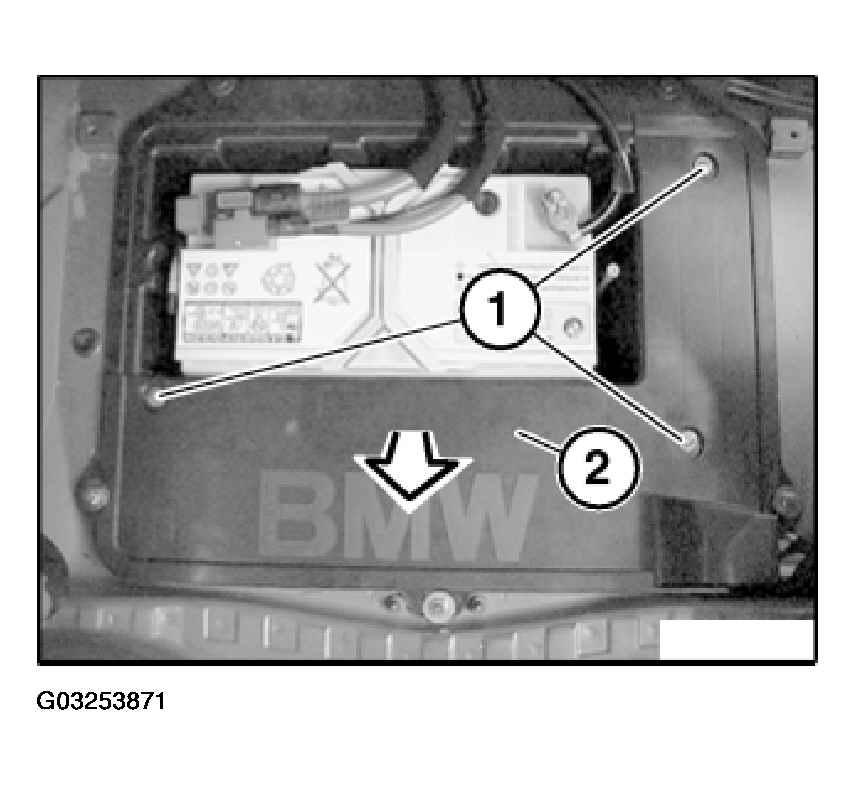

Loosen screws (1).

Fig 1: Removing Multifunction Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Remove multifunction tray (2) towards top.

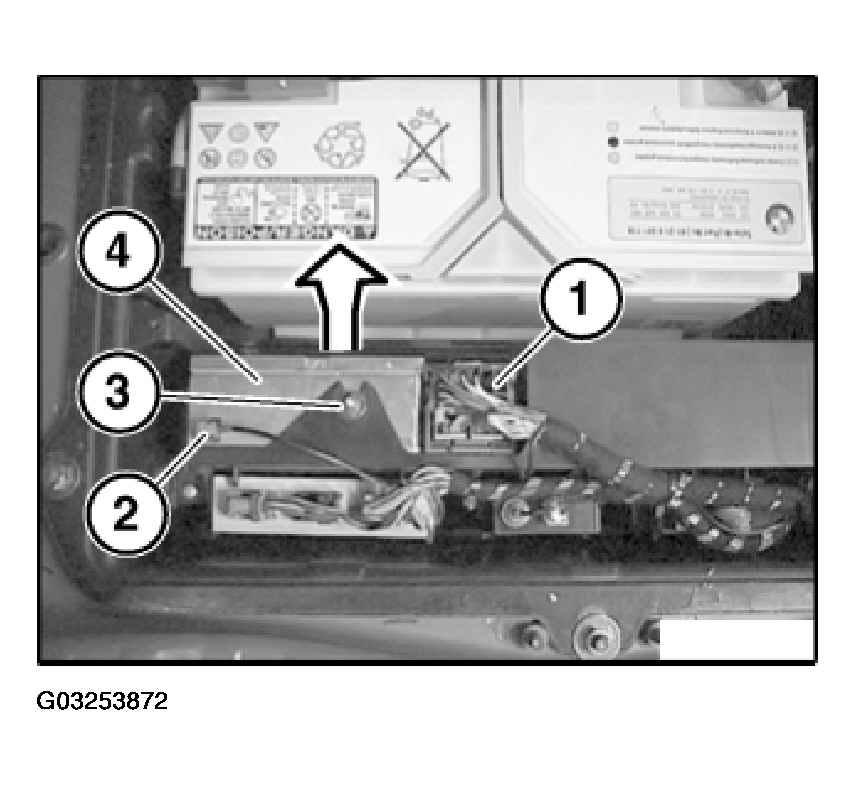

Unlock plug connections (1) and (2) and disconnect.

Fig 2: Removing Radio Receiver

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen nut (3).

Feed out radio receiver (4) in direction of arrow and remove.

Installation:

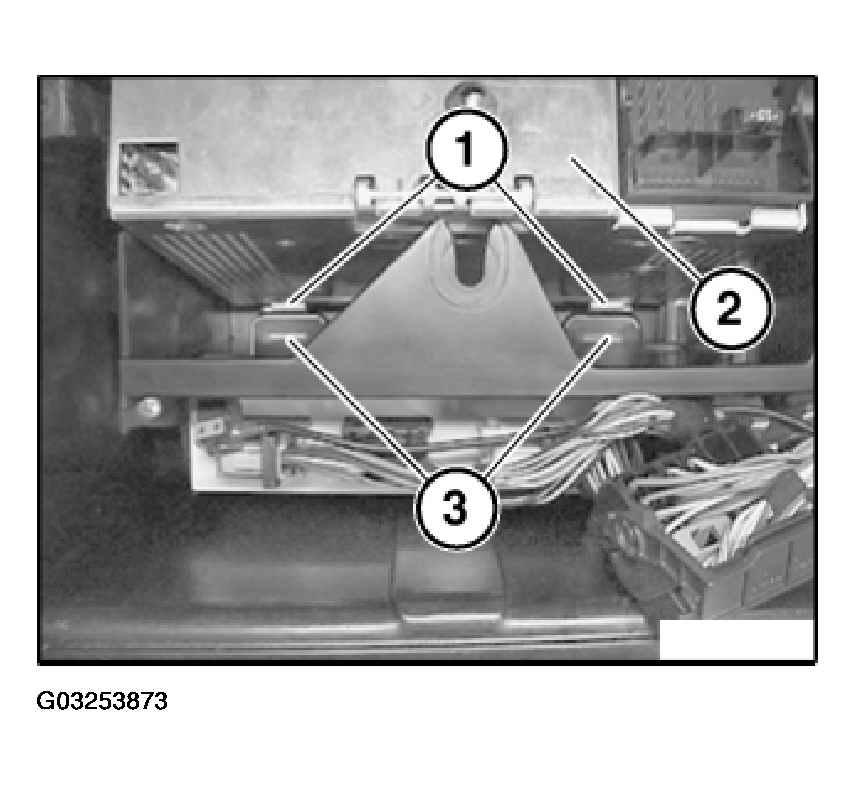

Metal tabs (1) of radio receiver (2) must be seated in mountings (3).

Fig 3: Identifying Metal Tabs Of Radio Receiver

Courtesy of BMW OF NORTH AMERICA, INC.
