65 75 565 Removing and installing/replacing ultrasound module

WARNING: This page is about a different variant/trim than selected.

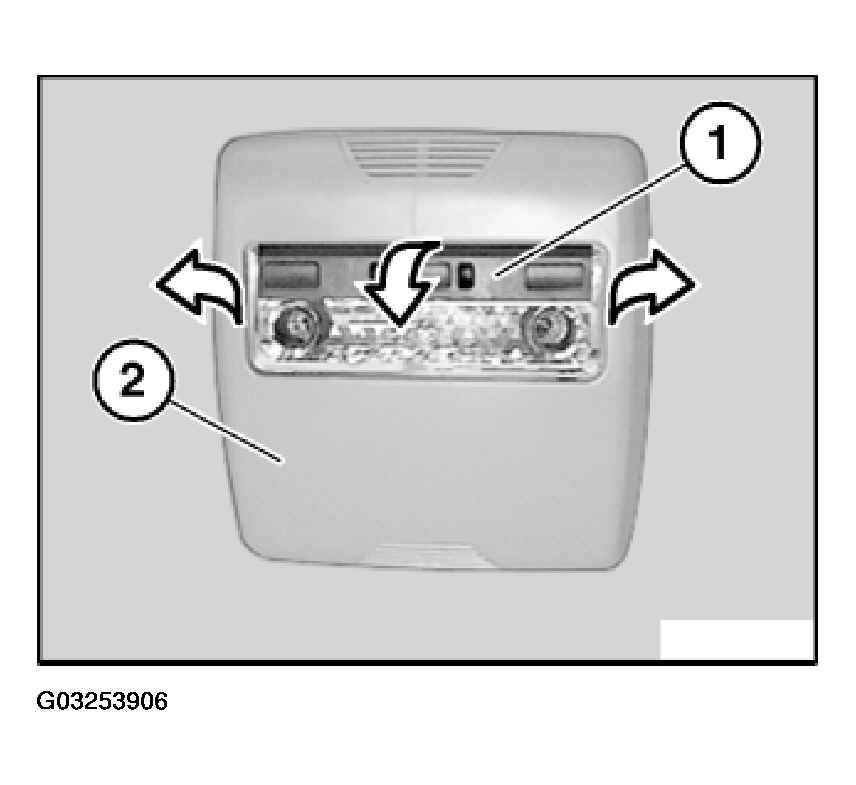

Lever out ceiling light (1) in direction of arrow and disconnect plug connection.

Fig 1: Levering Out Ceiling Light

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim (2) and disconnect plug connection.

Replacement:

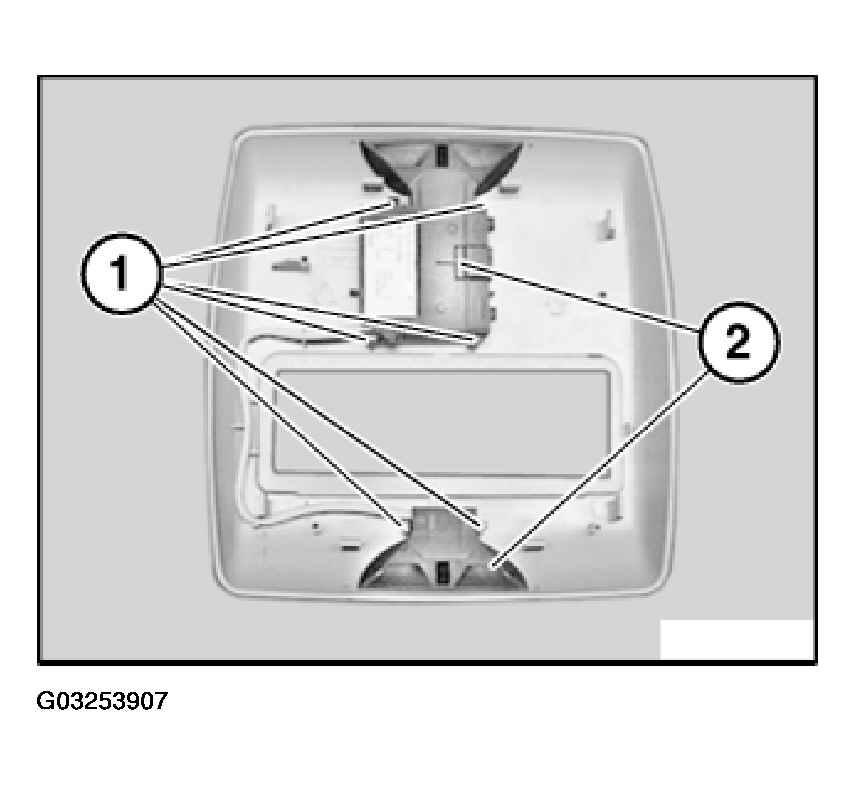

Lever out ultrasonic module (2) at retaining clips (1) and remove.

Fig 2: Levering Out Ultrasonic Module

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure correct cable routing.
