65 75 551 Removing and installing/replacing pitch sensor

WARNING: This page is about a different variant/trim than selected.

Remove right glovebox. Refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

Disconnect plug connection (1).

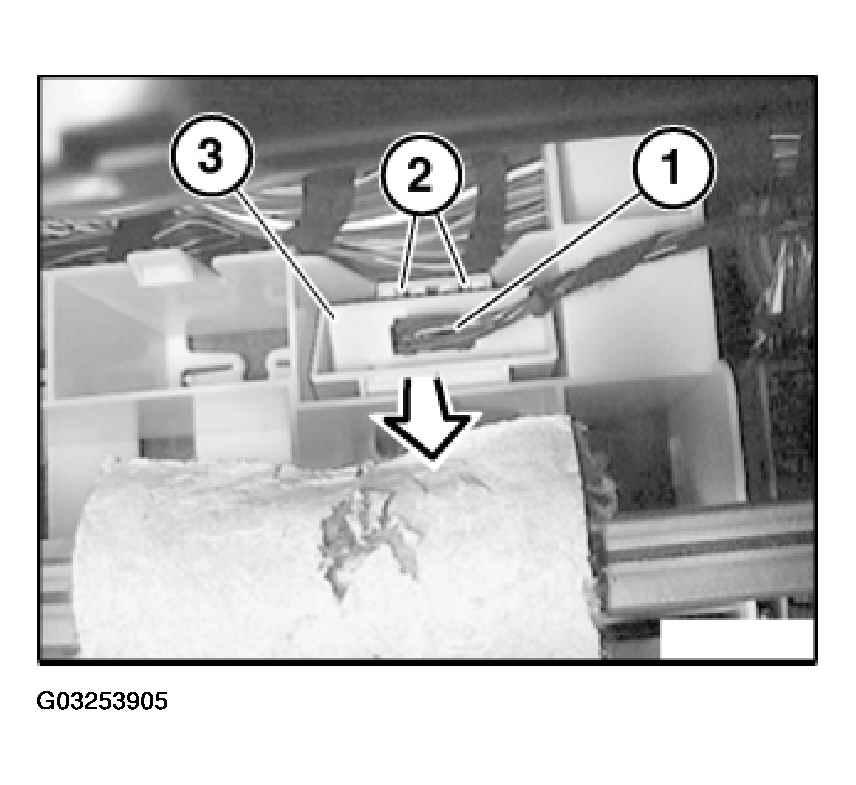

Fig 1: Pulling Out Pitch Sensor
G03253905Courtesy of BMW OF NORTH AMERICA, INC.

Press together catch (2) and pull out pitch sensor (3) in direction of arrow.
