64 11 938 Removing and installing/replacing interior temperature sensor (A/C control)
WARNING: This page is about a different variant/trim than selected.
Remove trim for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

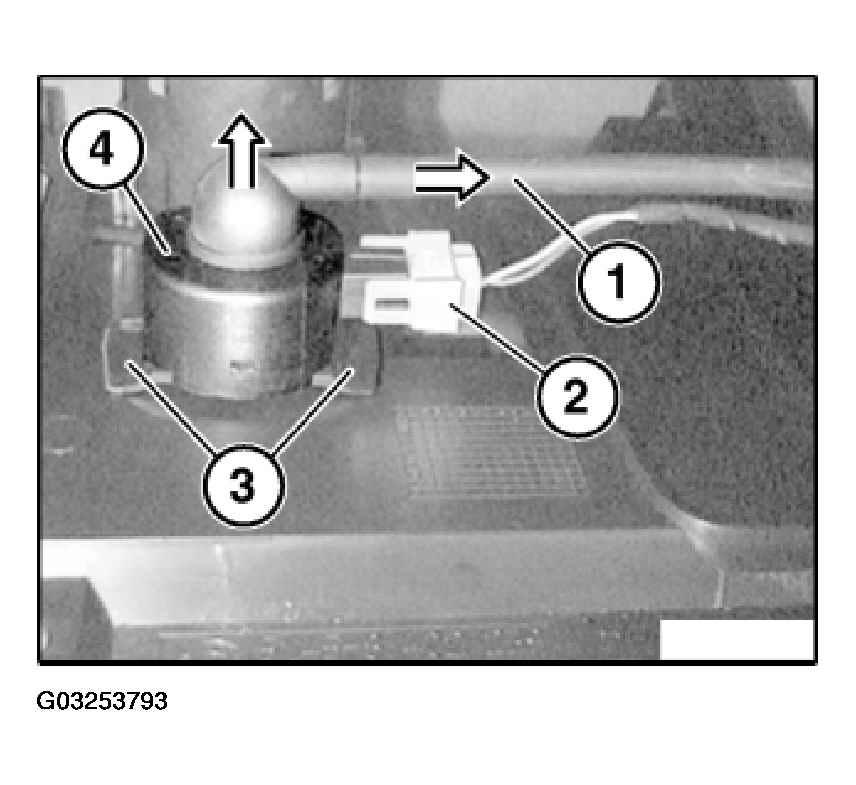

Detach hose (1) in direction of arrow.
Disconnect connector (2).
Unlock catches (3) and remove temperature sensor (4) in direction of arrow.
