64 11 937 Replacing evaporator temperature sensor (automatic A/C)
WARNING: This page is about a different variant/trim than selected.
Remove trim for instrument panel, bottom right. Refer to 51 45 181 REMOVING AND INSTALLING/REPLACING TRIM FOR INSTRUMENT PANEL, BOTTOM RIGHT .
Remove side carpet on right side of center console. Refer to 51 16 200 REMOVING AND INSTALLING CENTER CONSOLE .

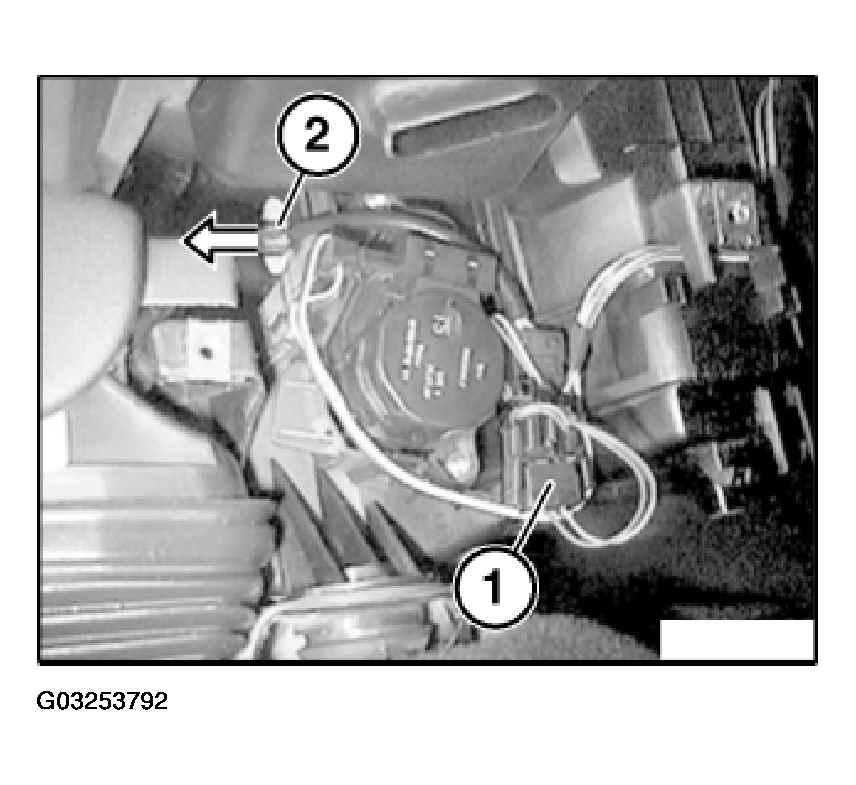

Disconnect plug connection (1).
Pull out evaporator temperature sensor (2) in direction of arrow.
Installation:
Ensure evaporator temperature sensor (2) is correctly seated.
