64 11 932 Replacing evaporator temperature sensor (A/C control)

Remove right glovebox. Refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

E39 only:

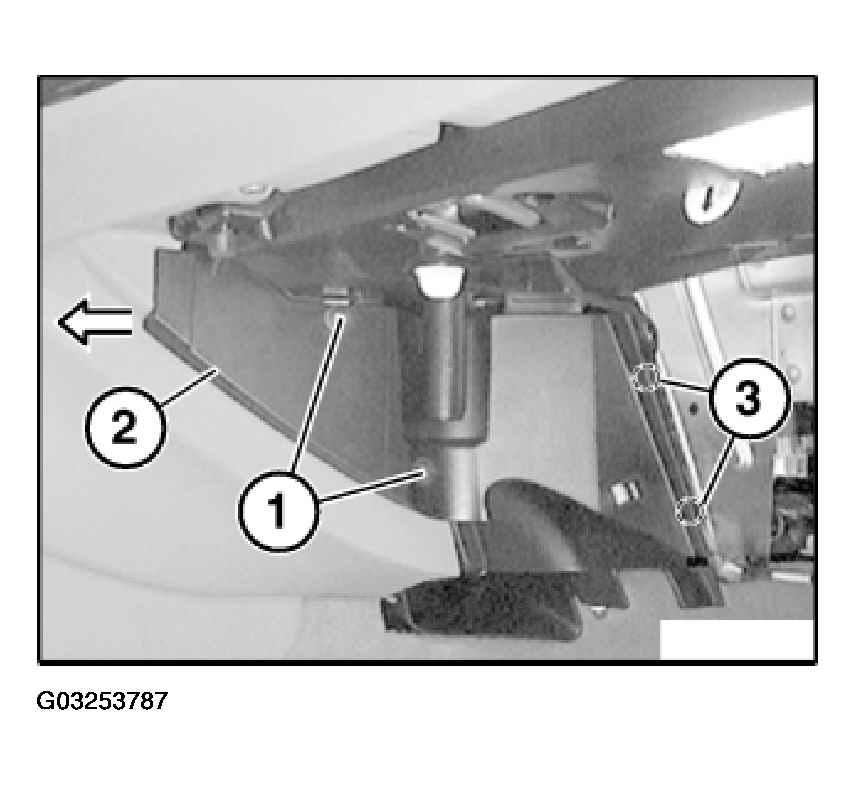

Release screws (1).

Fig 1: Removing Cover On Glovebox On Left

Courtesy of BMW OF NORTH AMERICA, INC.

Pull cover on glovebox on left (2) in direction of arrow out of guides (3) and remove.

E39, E53:

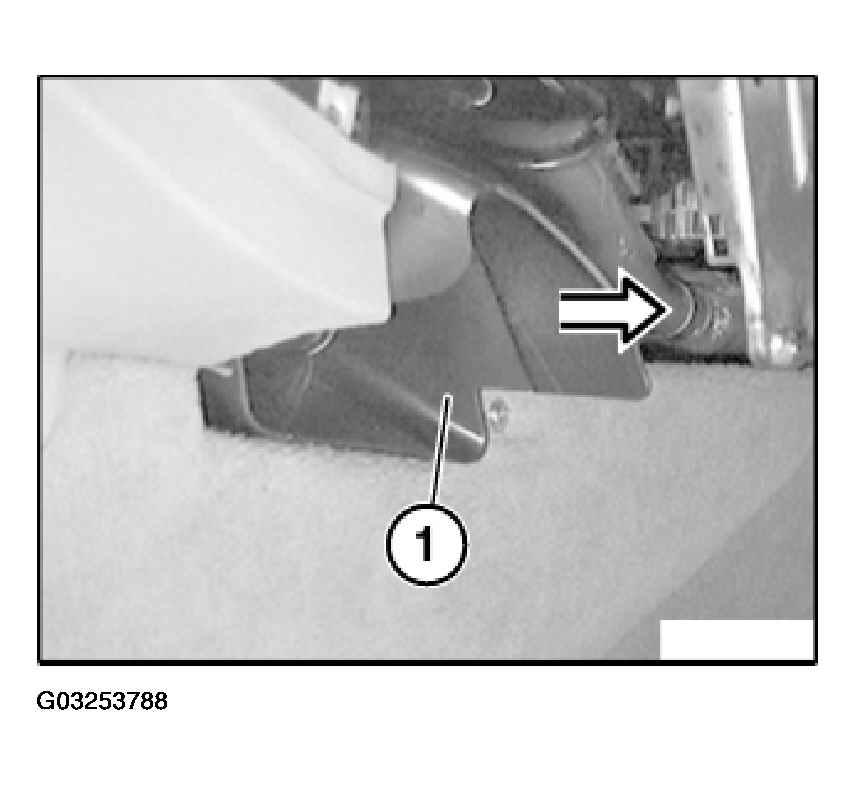

Unclip air duct for right footwell (1) and pull out in direction of arrow.

Fig 2: Removing Air Duct For Right Footwell

Courtesy of BMW OF NORTH AMERICA, INC.

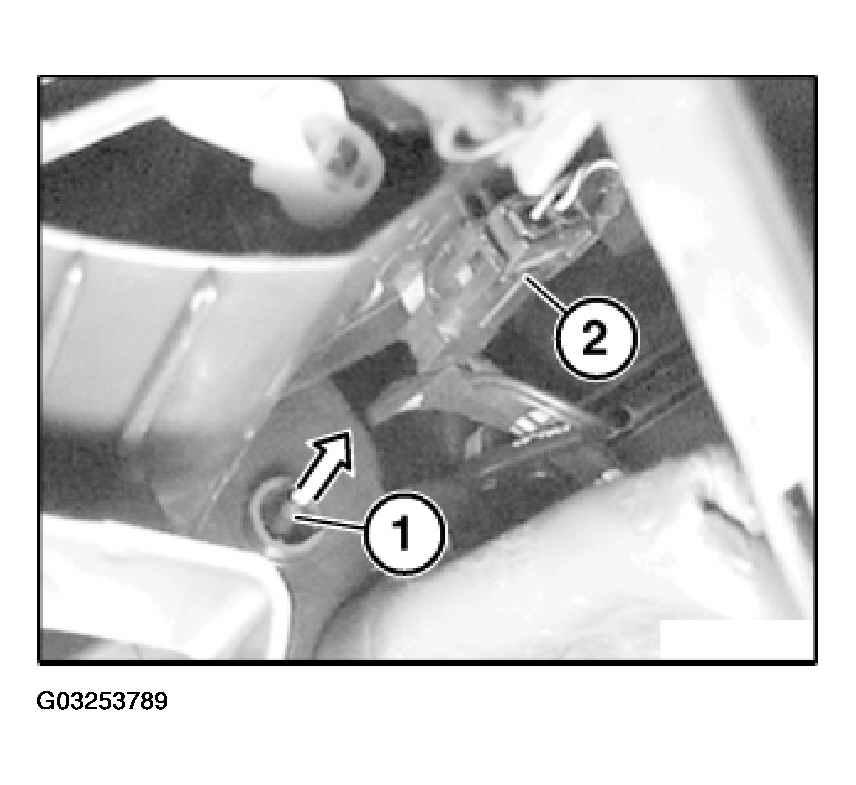

Break out repair cover (1) with pointed pliers in direction of arrow.

Fig 3: Breaking Out Repair Cover

Courtesy of BMW OF NORTH AMERICA, INC.

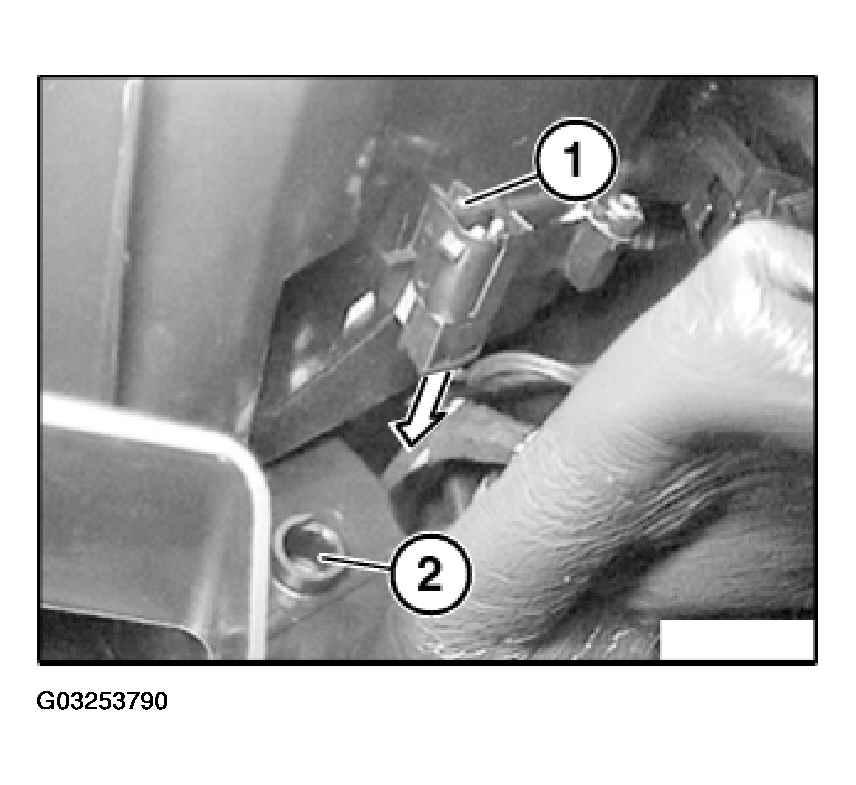

Disconnect connector (2).

Unlock plug of faulty evaporator temperature sensor (1) and pull out in direction of arrow.

Fig 4: Removing Evaporator Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Insert new evaporator temperature sensor in opening (2) and lock into place.

Installation:

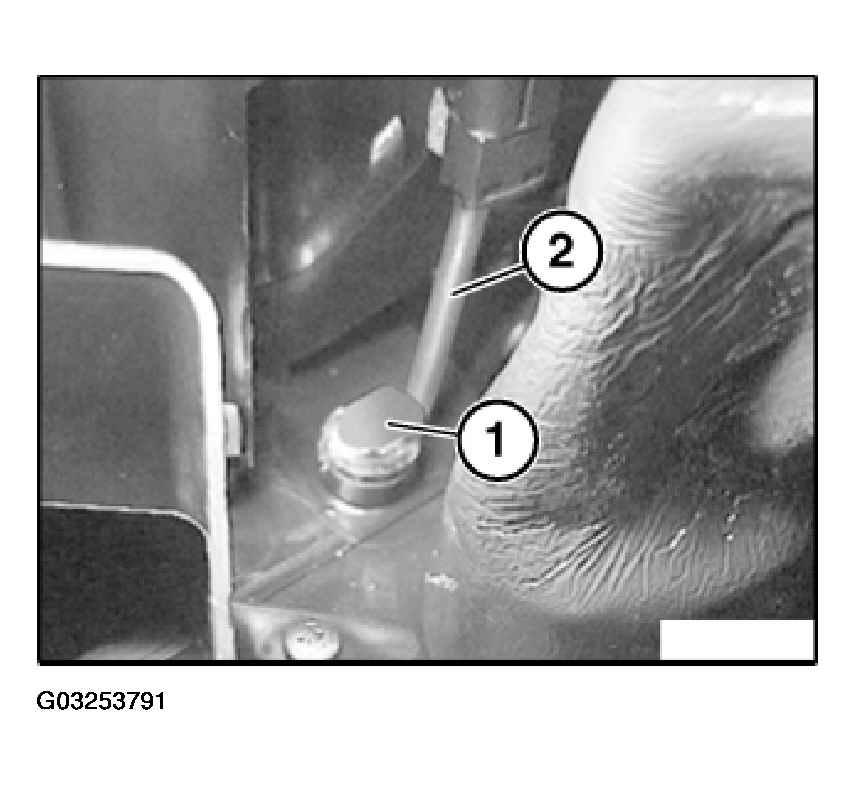

Make sure evaporator temperature sensor (1) and cable (2) are correctly seated.

Fig 5: Installing Evaporator Temperature Sensor And Cable

Courtesy of BMW OF NORTH AMERICA, INC.
