64 11 850 Replacing servodrive of rear compartment flap (automatic A/C)

Remove trim for instrument panel, bottom right. Refer to 51 45 181 REMOVING AND INSTALLING/REPLACING TRIM FOR INSTRUMENT PANEL, BOTTOM RIGHT .

Remove side carpet on right side of center console. Refer to 51 16 200 REMOVING AND INSTALLING CENTER CONSOLE .

Disconnect plug connection (1).

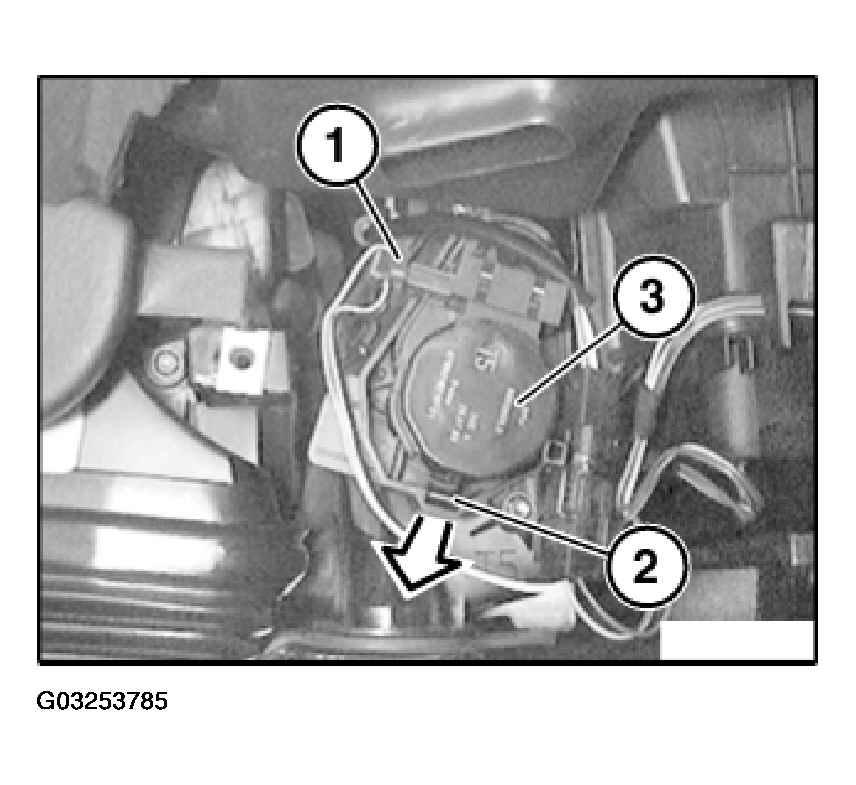

Fig 1: Pulling Out Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

Installation:

If necessary, align shaft of rear compartment flap to position of servodrive.

Fig 2: Aligning Shaft Of Rear Compartment Flap To Position Of Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
