64 11 845 Replacing servodrive of defrosting flaps (automatic A/C)

Remove trim for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

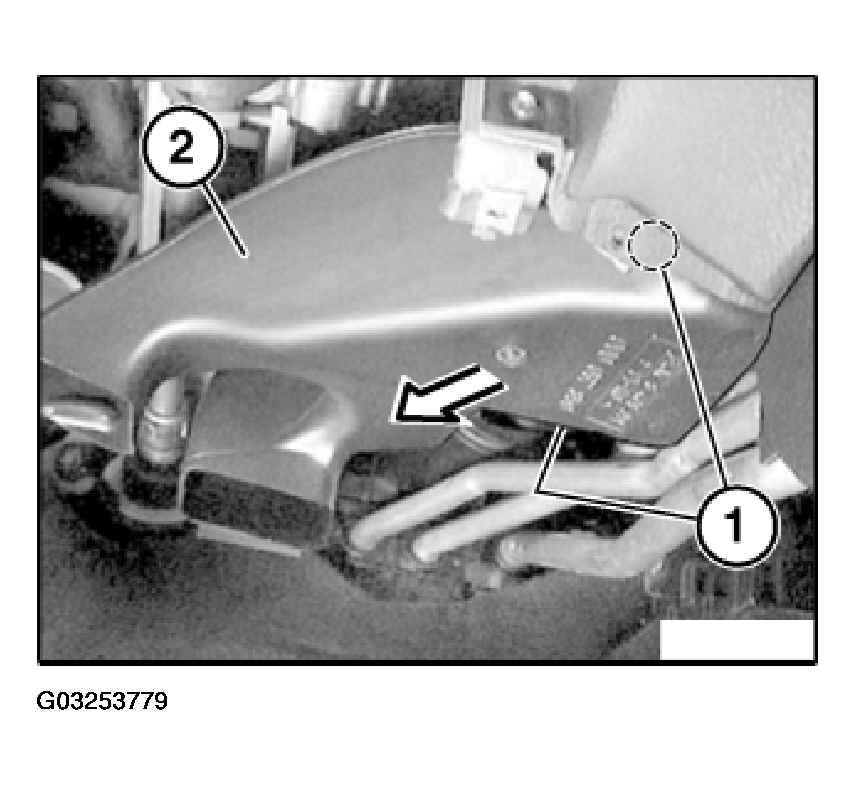

Unclip air duct for footwell on left (2) at mounts (1) and remove in direction of arrow.

Fig 1: Removing Air Duct For Footwell On Left

Courtesy of BMW OF NORTH AMERICA, INC.

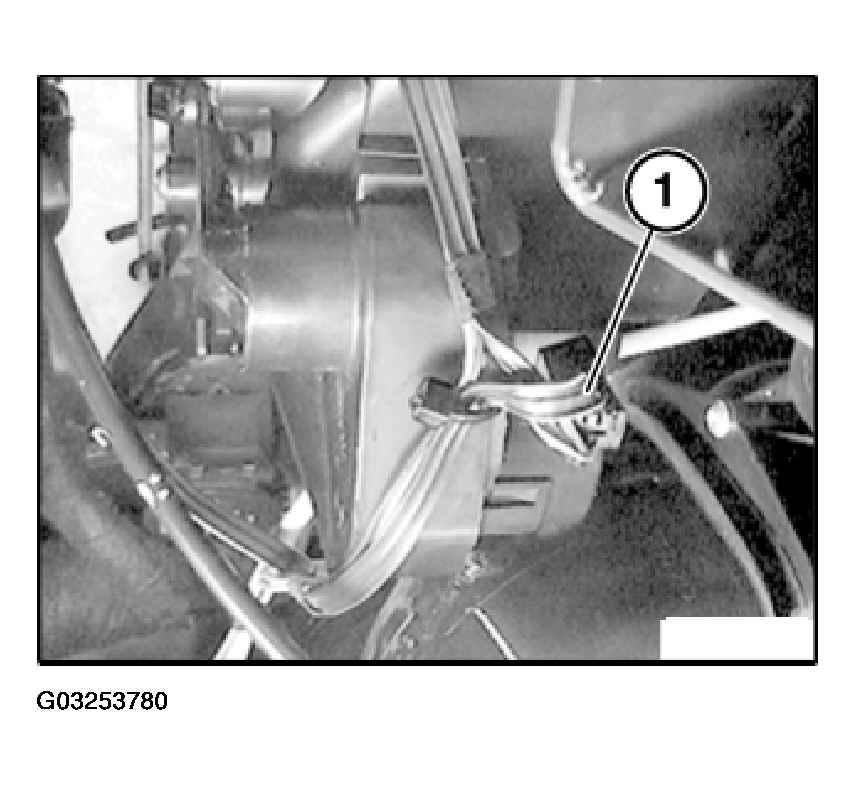

Disconnect plug connection (1).

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

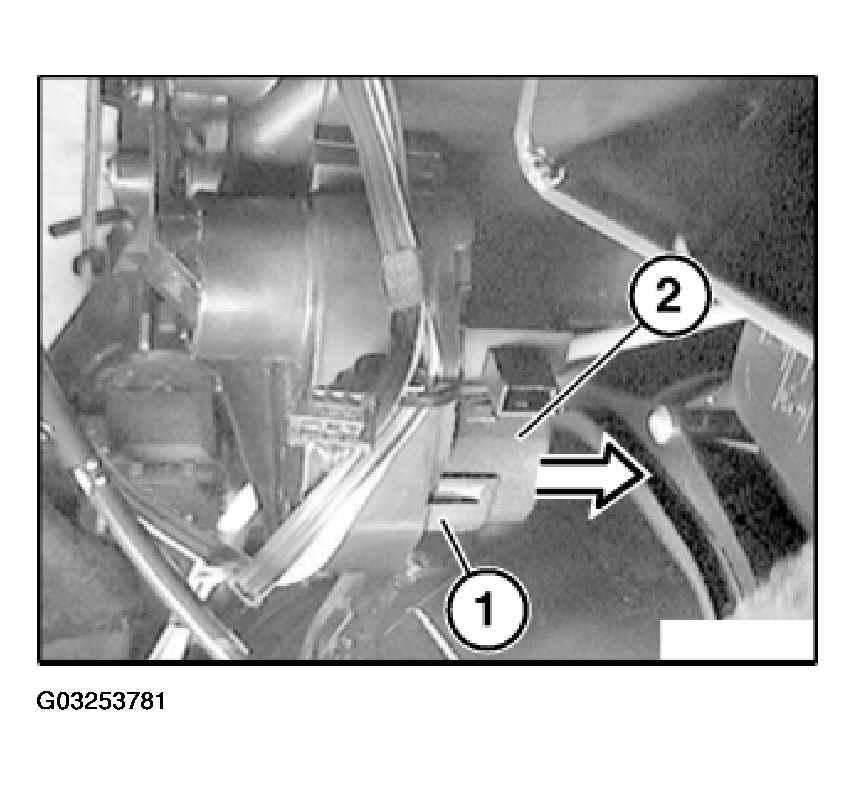

Unclip lock (1) and pull out servodrive (2) in direction of arrow.

Fig 3: Pulling Out Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of defrosting flaps to position of servodrive.

Fig 4: Aligning Shaft Of Defrosting Flaps To Position Of Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
