64 11 839 Replacing SERVODRIVE Of FOOTWELL Flap (Automatic A/C)

Remove right glovebox. Refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

Disconnect plug connection (1).

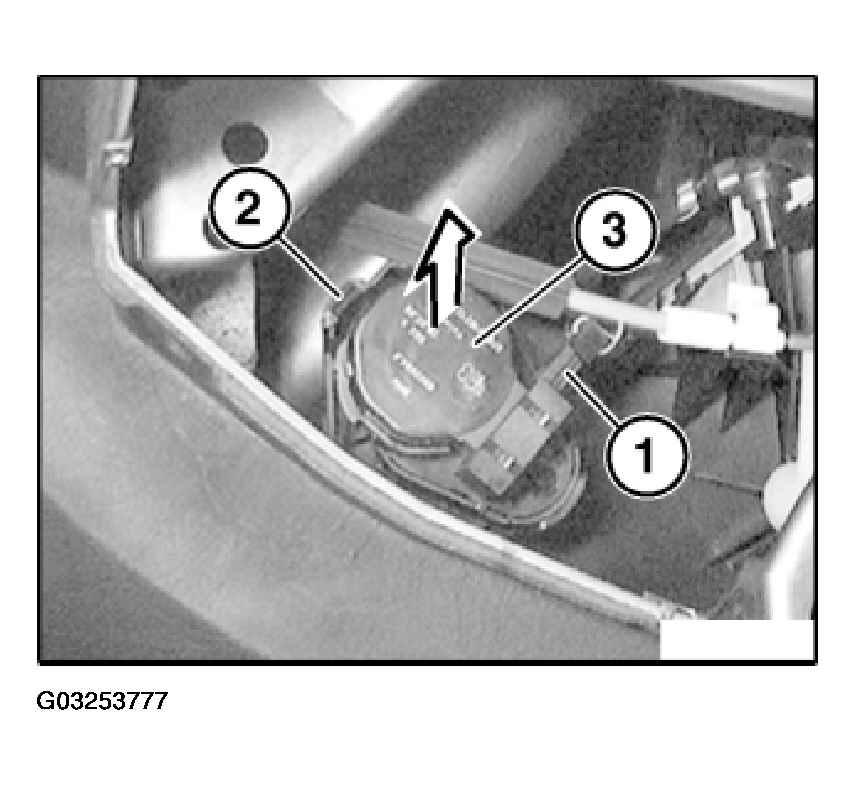

Fig 1: Pulling Out Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

Installation:

If necessary, align shaft of footwell flap to position of servodrive.

Fig 2: Aligning Shaft Of Footwell Flap To Position Of Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
