64 11 829 Replacing servodrive of ventilation flaps (automatic A/C)

Remove trim for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Unclip air duct for footwell on left (2) at mounts (1) and remove in direction of arrow.

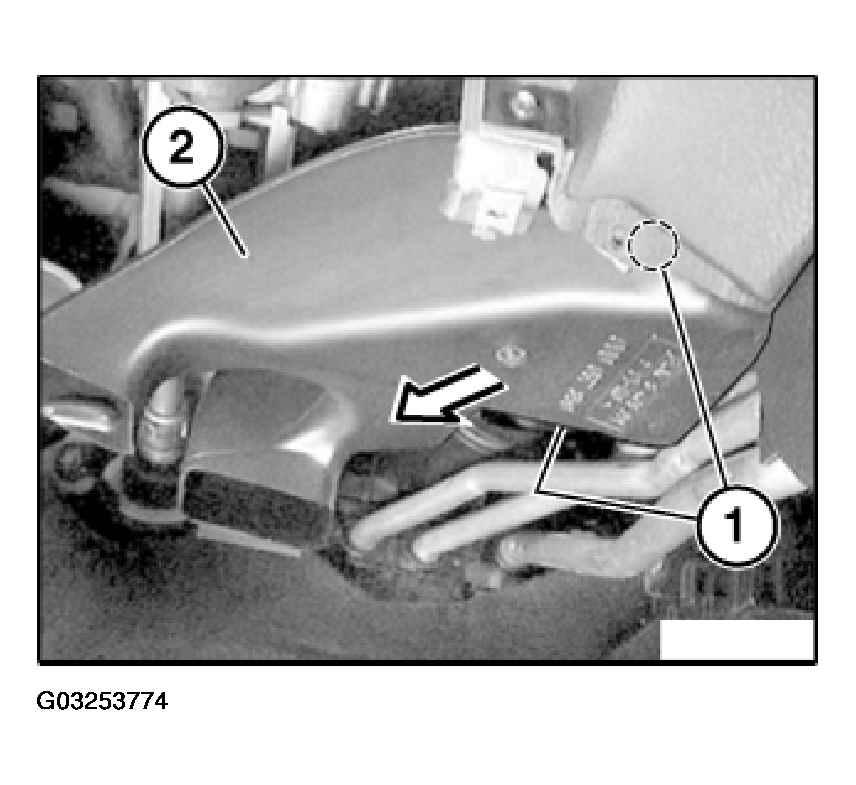

Fig 1: Removing Air Duct For Footwell On Left

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

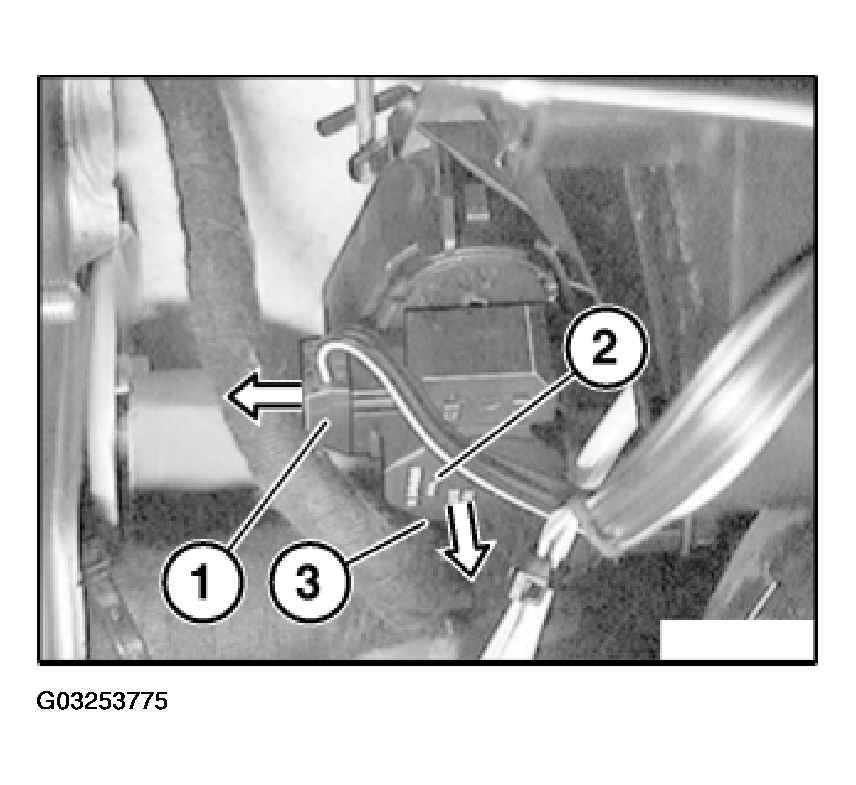

Fig 2: Pulling Out Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

Installation:

If necessary, align shaft of ventilation flaps to position of servodrive.

Fig 3: Aligning Shaft Of Ventilation Flaps To Position Of Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
