64 11 826 Replacing servodrive of recirculated air flaps (A/C control)

Remove trim for instrument panel, bottom right. Refer to 51 45 181 REMOVING AND INSTALLING/REPLACING TRIM FOR INSTRUMENT PANEL, BOTTOM RIGHT .

Remove side carpet on right side of center console. Refer to 51 16 200 REMOVING AND INSTALLING CENTER CONSOLE .

Unclip lock (1).

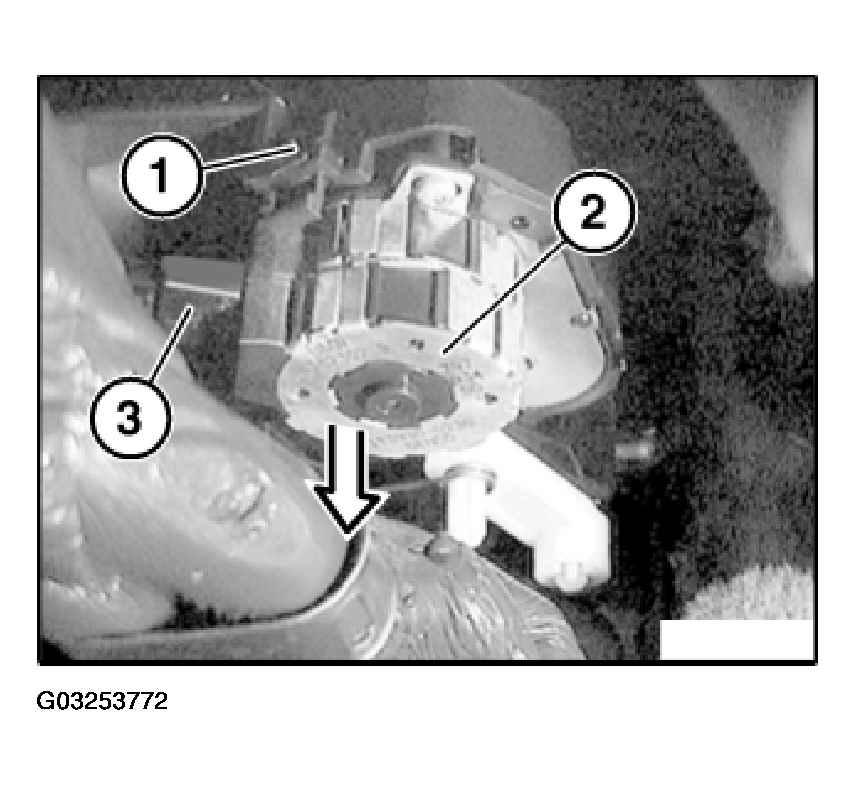

Fig 1: Pulling Out Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out servodrive (2) in direction of arrow and disconnect plug connection (3).

Installation:

If necessary, align shaft of recirculated air flaps to position of servodrive.

Fig 2: Aligning Shaft Of Recirculated Air Flaps To Position Of Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
