64 11 805 Replacing servodrive of fresh air/recirculated air flap (automatic A/C)

Remove trim for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

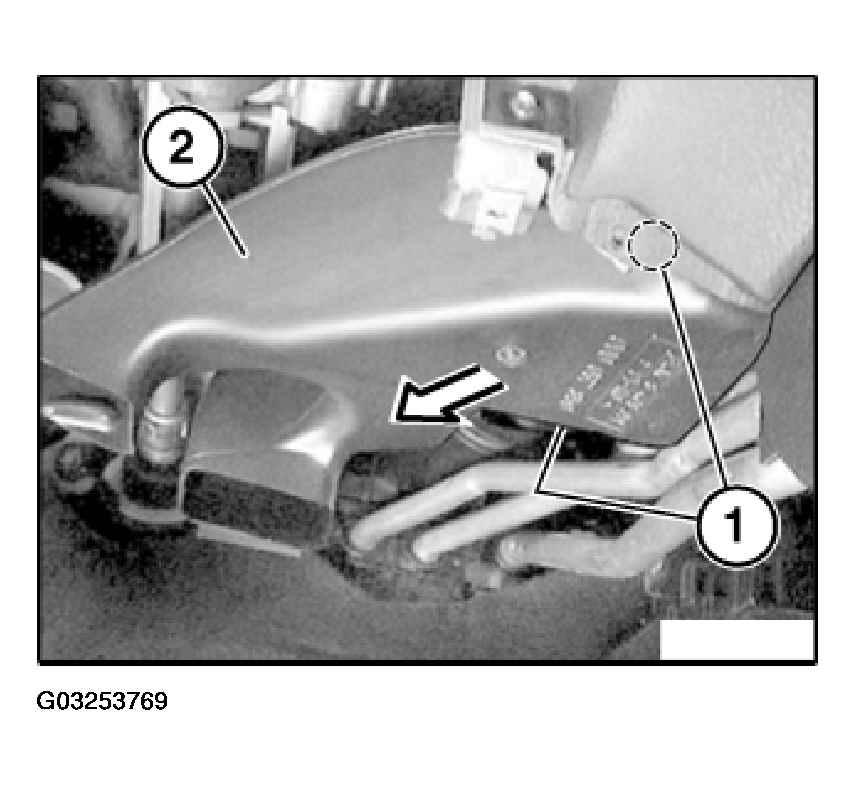

Unclip air duct for footwell on left (2) at mounts (1) and remove in direction of arrow.

Fig 1: Removing Air Duct For Footwell On Left

Courtesy of BMW OF NORTH AMERICA, INC.

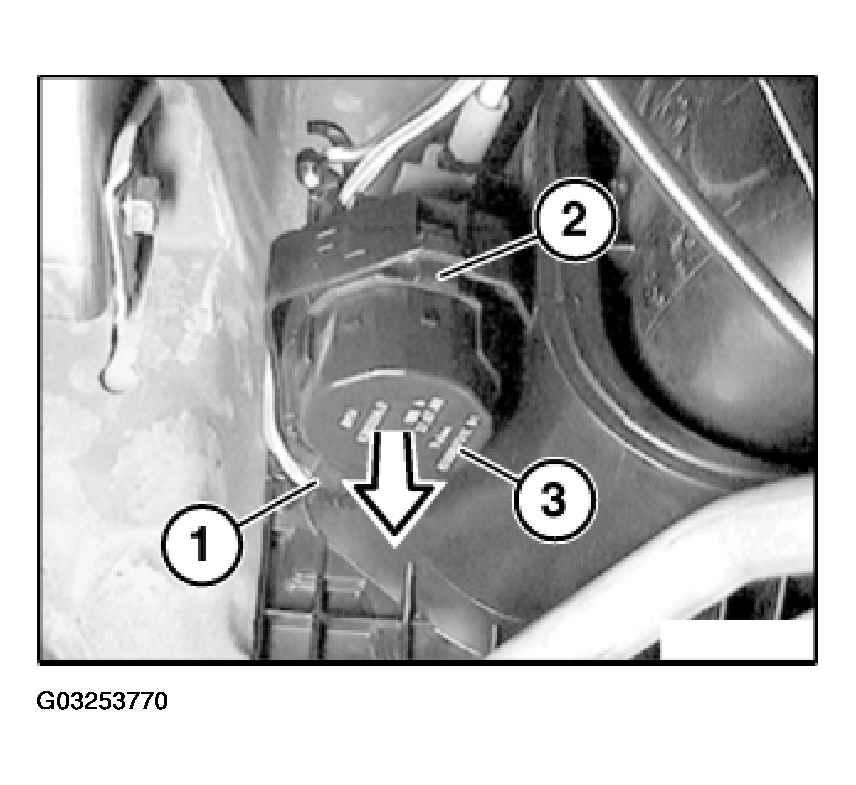

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

Fig 2: Pulling Out Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Installation:

If necessary, align shaft of fresh air/recirculated air flap to position of servodrive.

Fig 3: Aligning Shaft Of Fresh Air/Recirculated Air Flap To Position Of Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
