64 11 794 Removing and installing/replacing the controller for the rear fan

WARNING: This page is about a different variant/trim than selected.

Unclip cover (1) on right on storage tray.

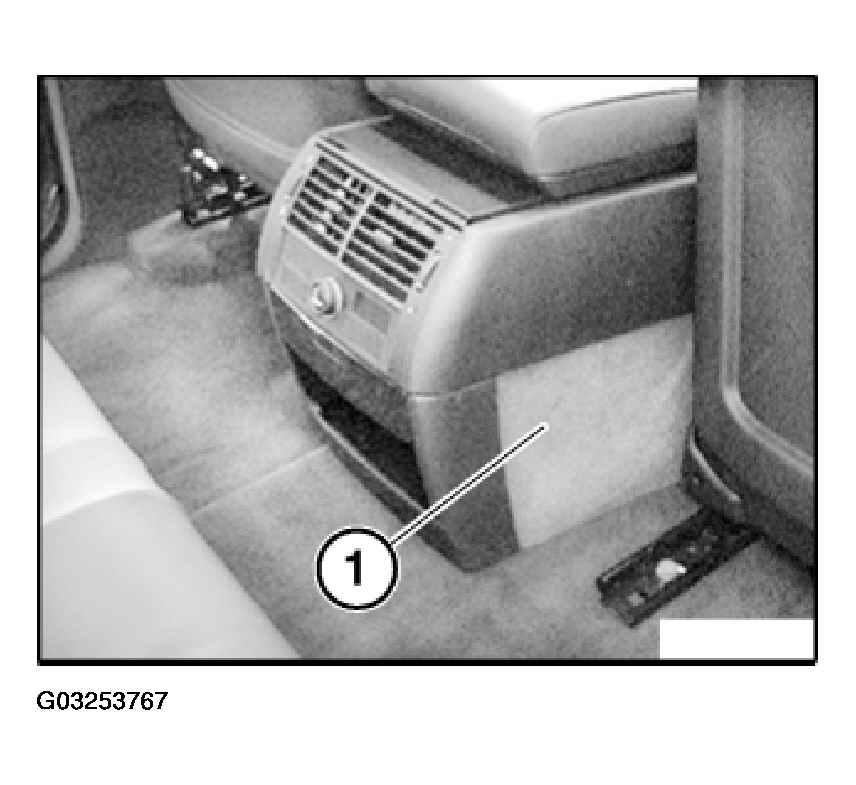

Fig 1: Locating Cover On Right On Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1).

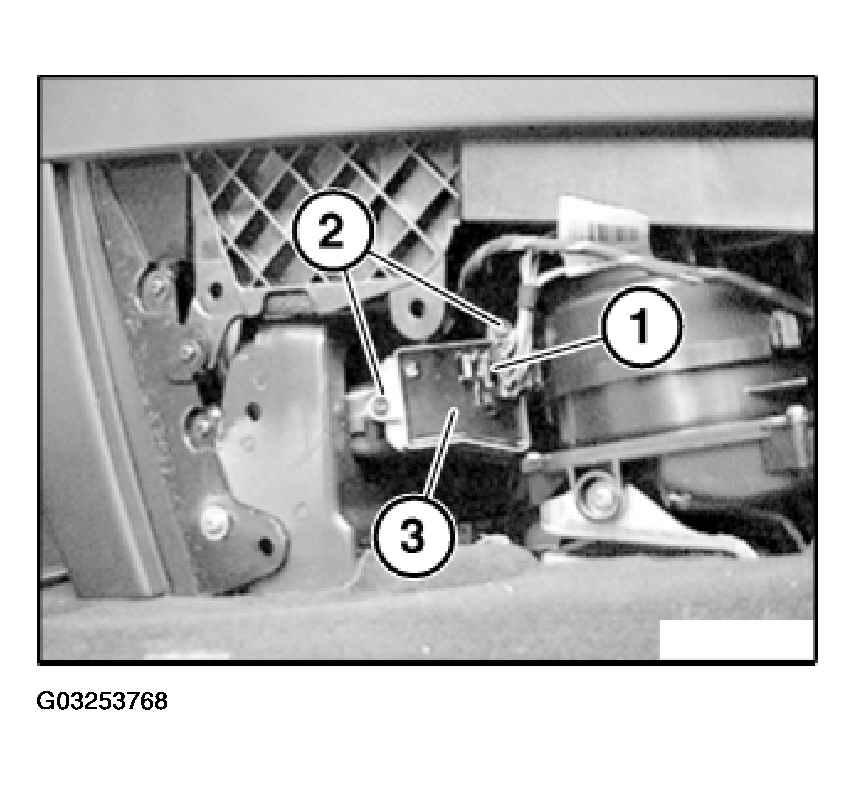

Fig 2: Removing Controller

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and pull out controller for rear compartment fan (3).
