64 11 748 Removing And Installing Heater Controls (A/C Control)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Unlock heating controls (1) with special tool 64 1 010 and pull out in direction of arrow.

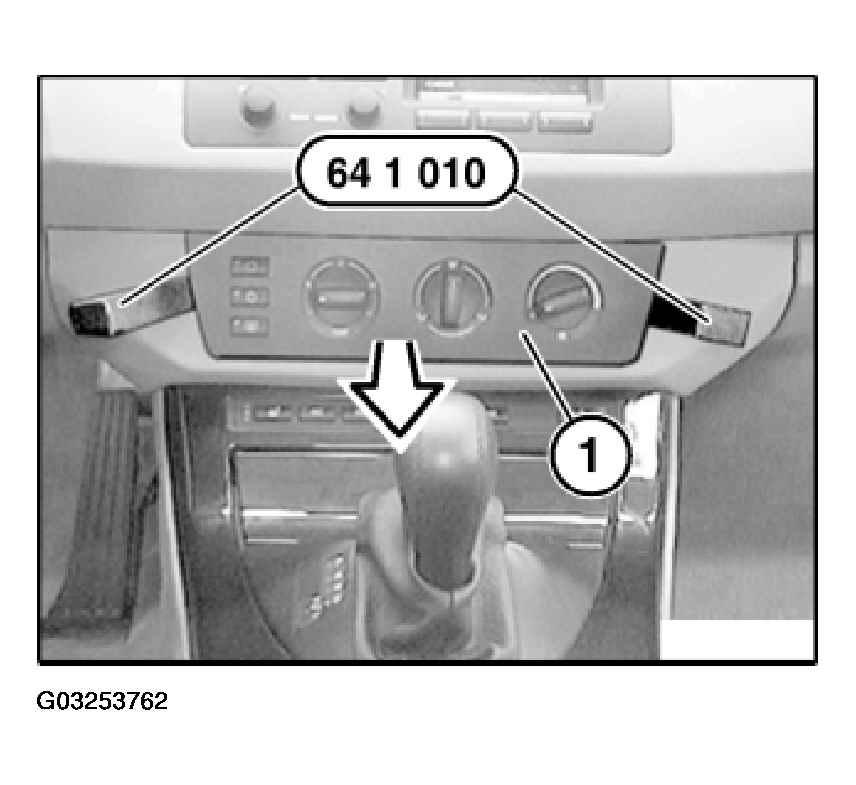

Fig 1: Unlocking Heating Controls

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection.

Remove Bowden cables (1).

Fig 2: Removing Bowden Cables

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe color coding of Bowden cables.

NOTE: Unclip Bowden cable holder (1) in direction of arrow.
Remove eye (2) from deflector (3).

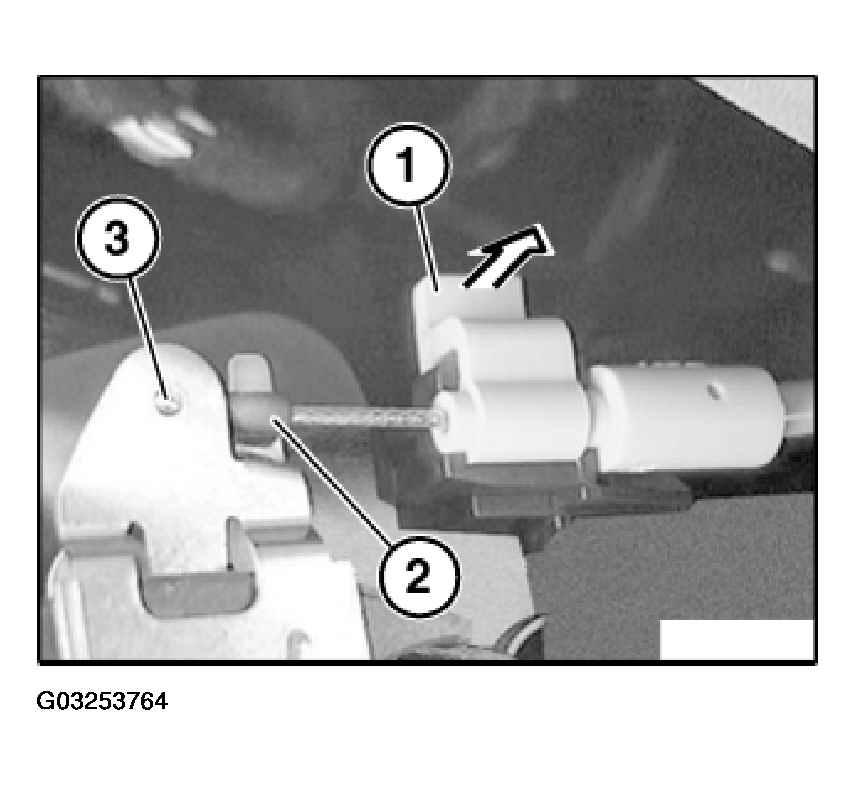

Fig 3: Unclipping Bowden Cable Holder

Courtesy of BMW OF NORTH AMERICA, INC.
