64 11 227 Replacing Limit Switch For Fan Of Heater/Air Conditioner (Climate Control)

Remove right glovebox. Refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

Remove trim on center console. Refer to 51 16 220 REPLACING TRIMS FOR CENTER CONSOLE .

Unhook holder (1).

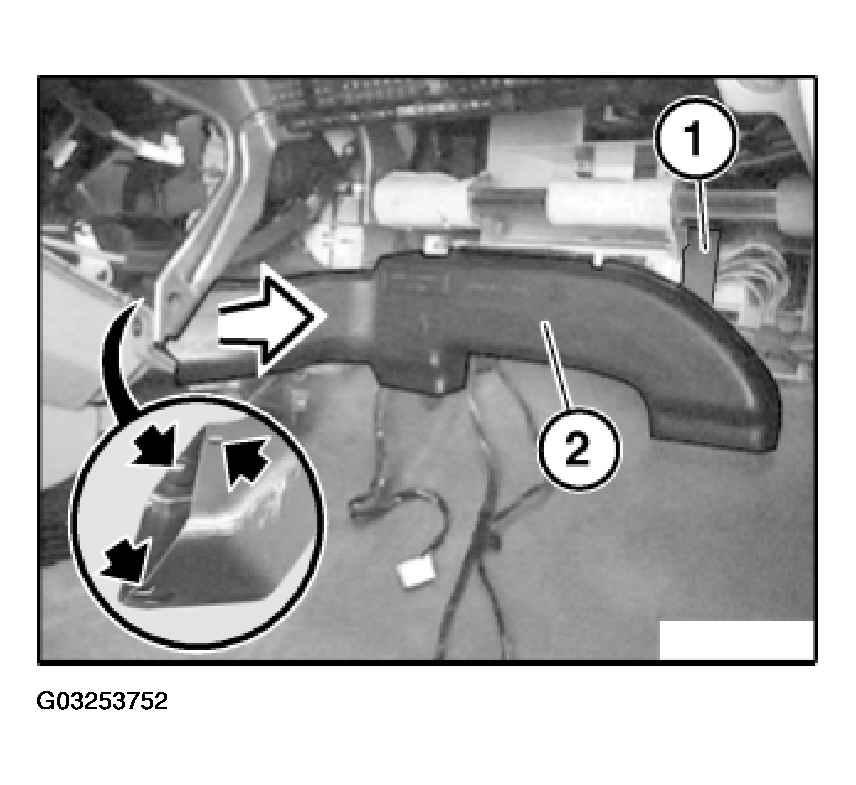

Fig 1: Removing Heating Duct For Right Footwell

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip heating duct for right footwell (2) and remove in direction of arrow.

Installation:

Ensure heating channel for right footwell (2) is correctly seated.

Disconnect plug connection (1).

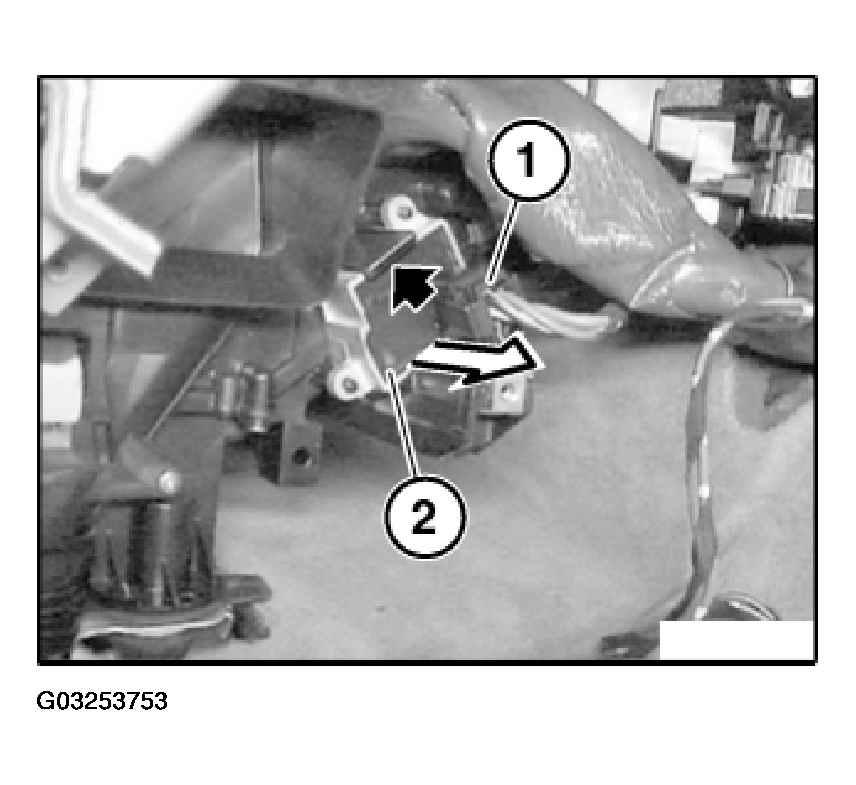

Fig 2: Removing Limit Switch For Fan

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock limit switch for fan (2) and pull out in direction of arrow.
