64 11 213 Removing and installing/replacing heater - A/C fan

WARNING: This page is about a different variant/trim than selected.

NOTE: For purposes of clarity, illustration shows heater/air conditioner removed.

Unclip retainers (1).

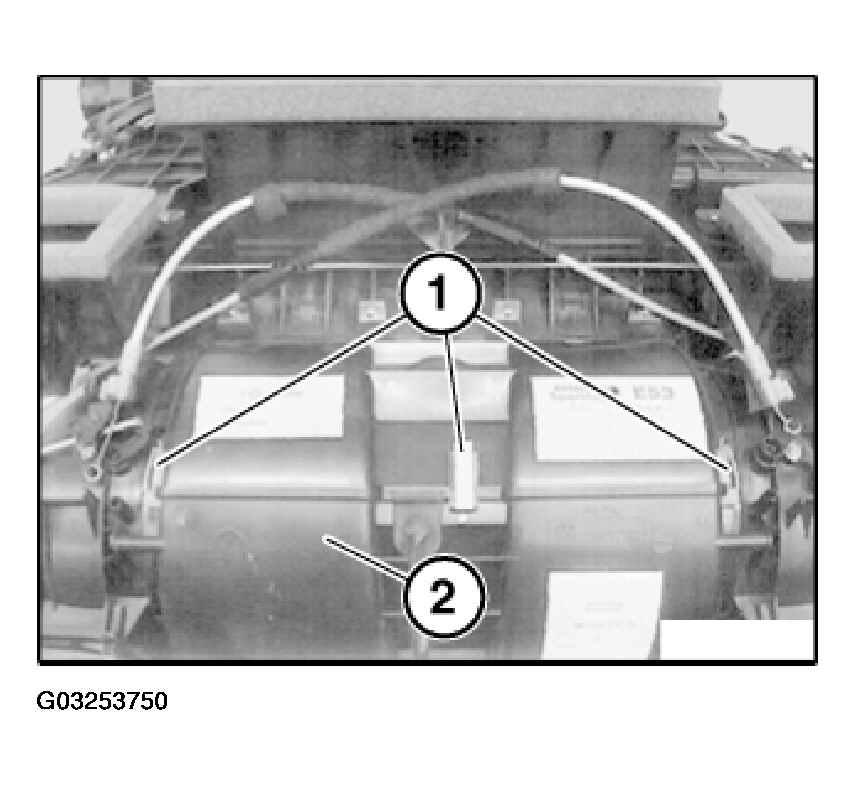

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (2).

NOTE: For purposes of clarity, illustration shows heater/air conditioner removed.

Disconnect plug connection (1).

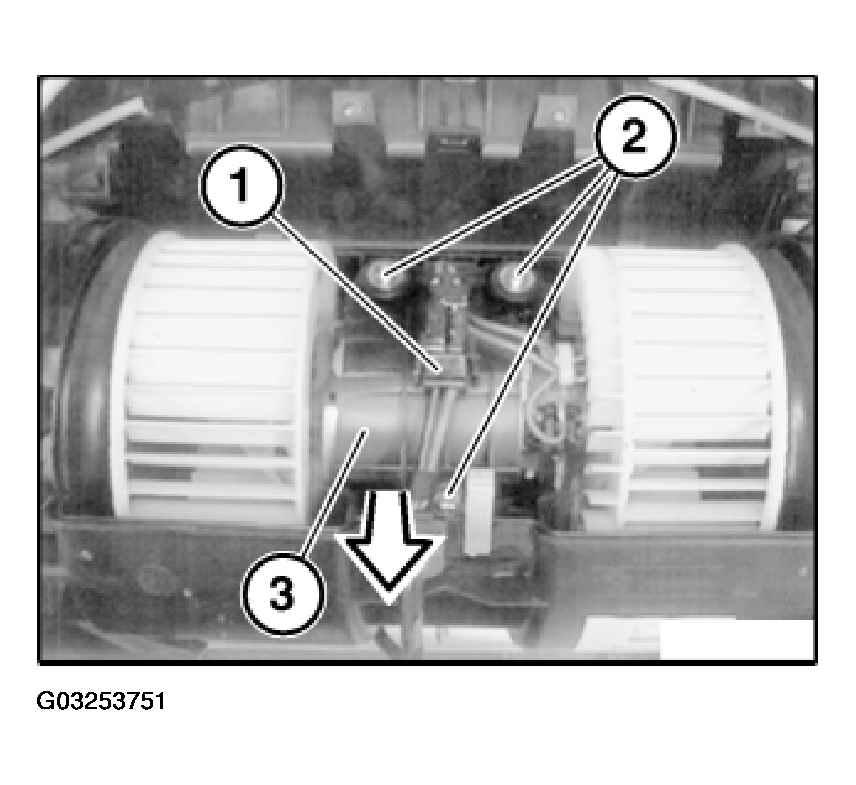

Fig 2: Removing Heater-A/C Fan

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (2).

Remove heater - A/C fan (3) in direction of arrow.
