64 11 ... Installing servodrive

WARNING: This page is about a different variant/trim than selected.

Installation:

If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.

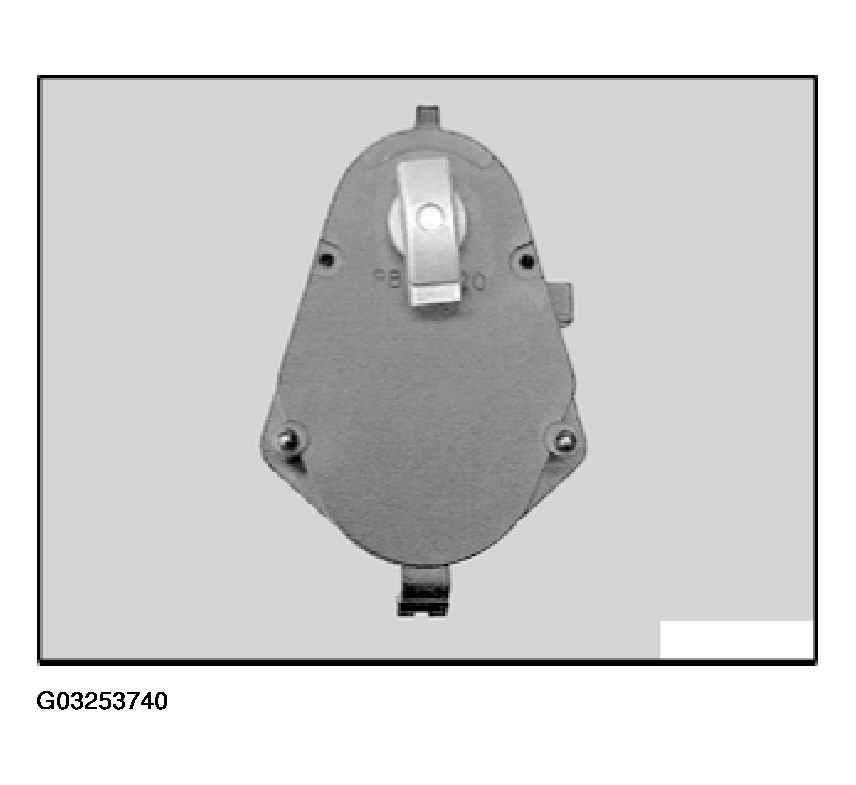

Fig 1: Aligning Shaft Of Flap
G03253740Courtesy of BMW OF NORTH AMERICA, INC.
