64 53 550 Removing And Installing Or Replacing Condenser For Air Conditioner
WARNING: This page is about a different variant/trim than selected.
A/C system is drawn off. Refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .
Remove intake hood. Refer to 17 11 031 REPLACING FAN COWL (M62 / M54) .
M54, M62 only:
Remove intake filter housing.

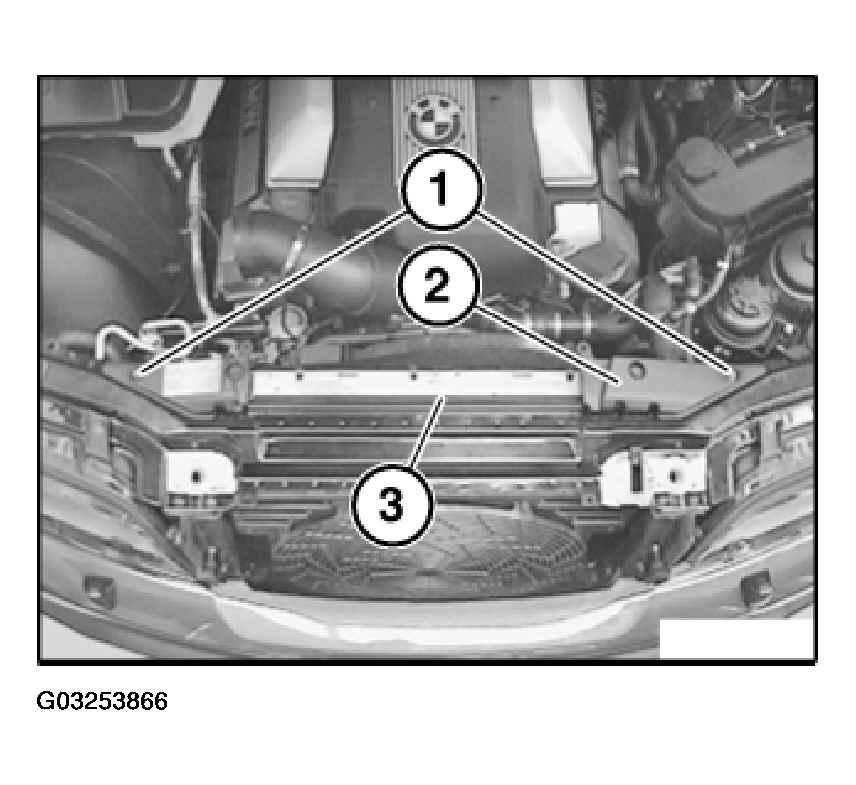

Release screws (1) and remove radiator bracket (2).
Detach rubber strip (3).

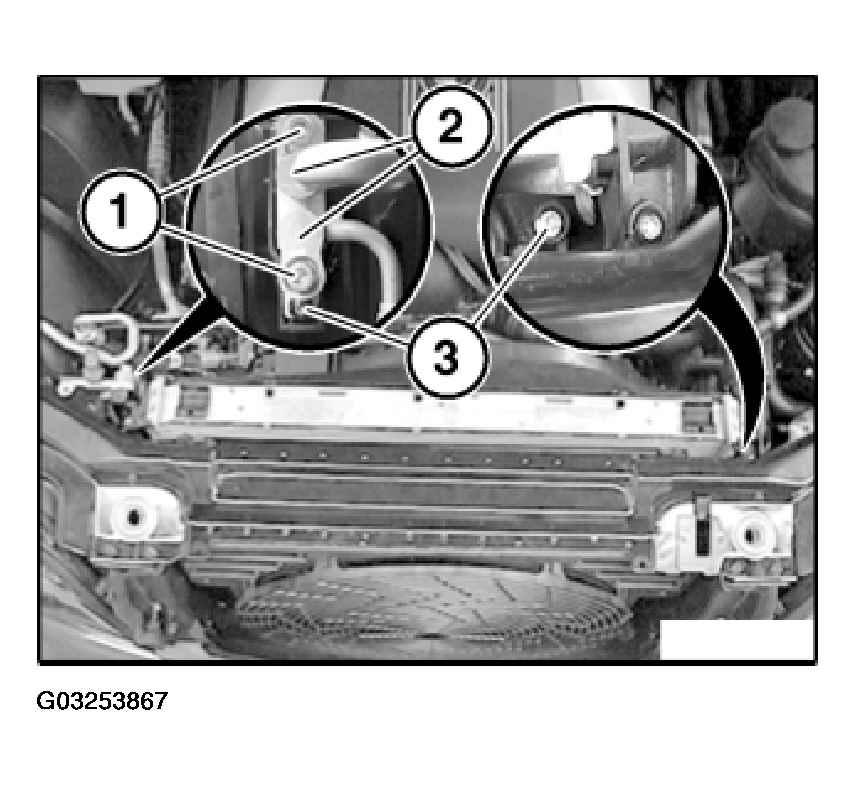

Release screws (1) and detach lines (2).
Installation:
Replace sealing rings.
Release screws (3).

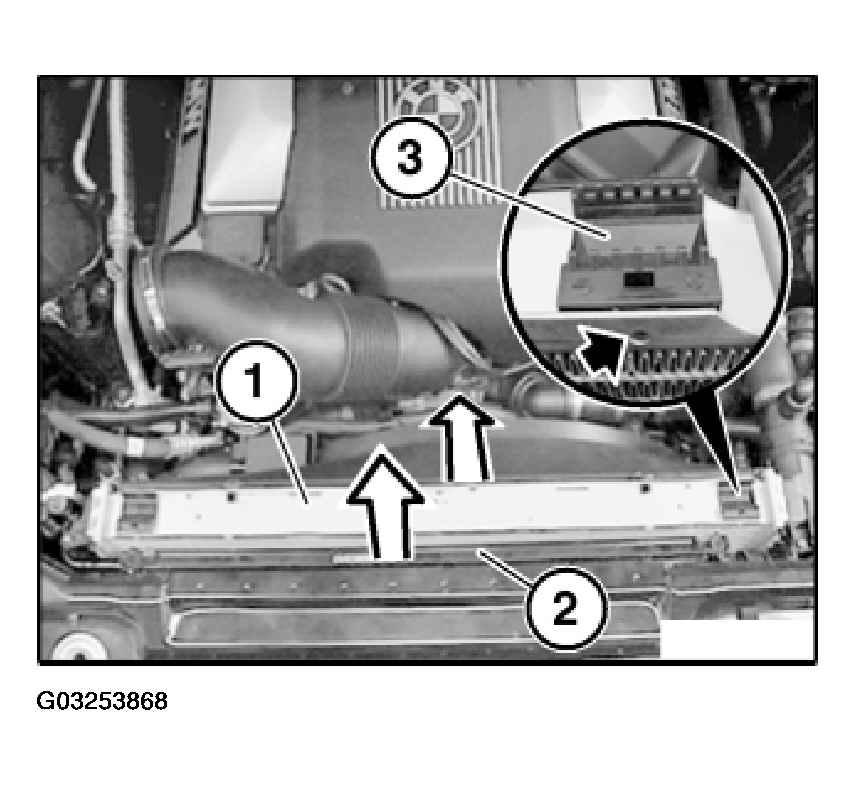

Gently press cooler (1) towards rear and lift out A/C condenser (2).
Installation:
Lugs of plastic guides (3) must be securely engaged in bores.
Replace faulty plastic guides.
Installation:
If A/C system is opened for more than 24 hours:
Replace desiccator insert. Refer to 64 53 515 REPLACING DRIER INSERT FOR A/C SYSTEM .
