64 12 579 Removing and installing/replacing exhaust pipe (top)

WARNING: This page is about a different variant/trim than selected.

M57 only:

Release fuel cooler and place to one side.

All:

Disconnect plugs (1) and (2).

CAUTION: To avoid damage during installation, it is absolutely essential to adhere to the following contacting sequence for the plug connections:

Plug connection (2)
Plug connection (1)

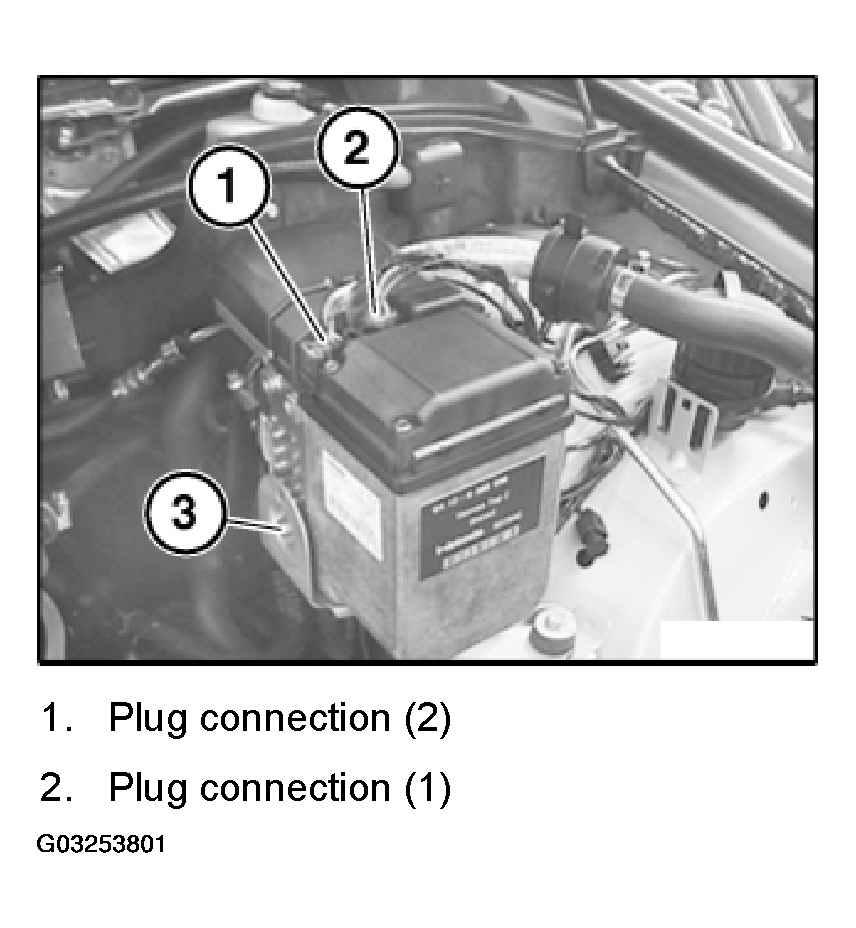

Fig 1: Disconnecting Plugs
Courtesy of BMW OF NORTH AMERICA, INC.

M57 only:

Release screw (3) and remove retaining fixture with centering for fuel cooler.

Installation:

Make sure retaining fixture with centering for fuel cooler is correctly seated.

M54, M62 only:

Release screw (3).

All:

Detach hose clamp (2) from intake hose (3).

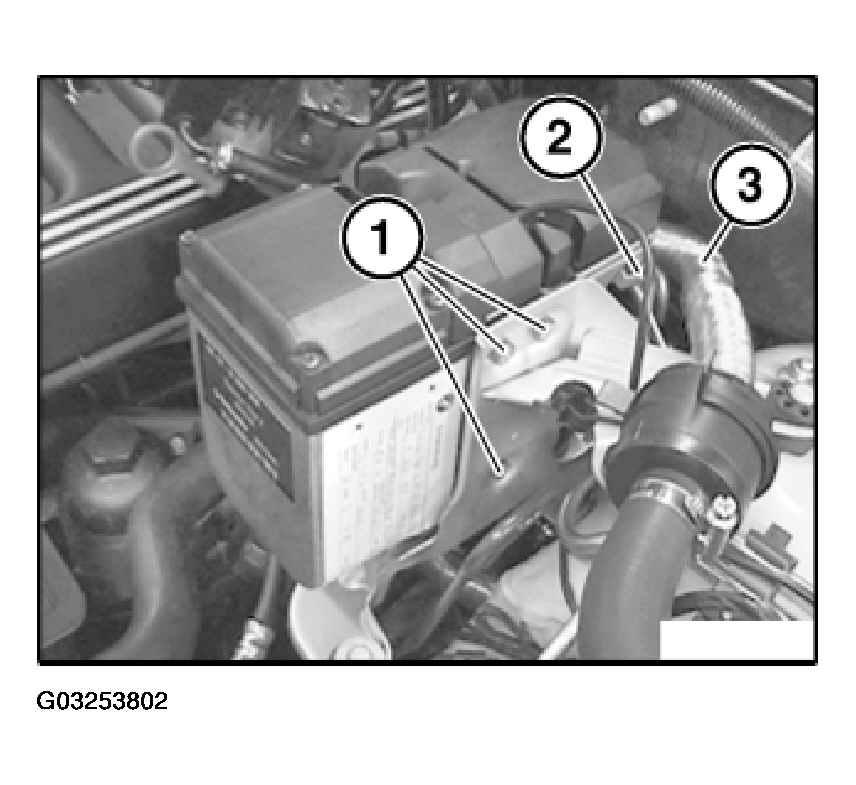

Fig 2: Detaching Hose Clamp From Intake Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Detach intake hose (3) from heater (4) and place to one side.

Loosen screws (1).

Raise heater (1) and detach exhaust pipe (4) from flange (2).

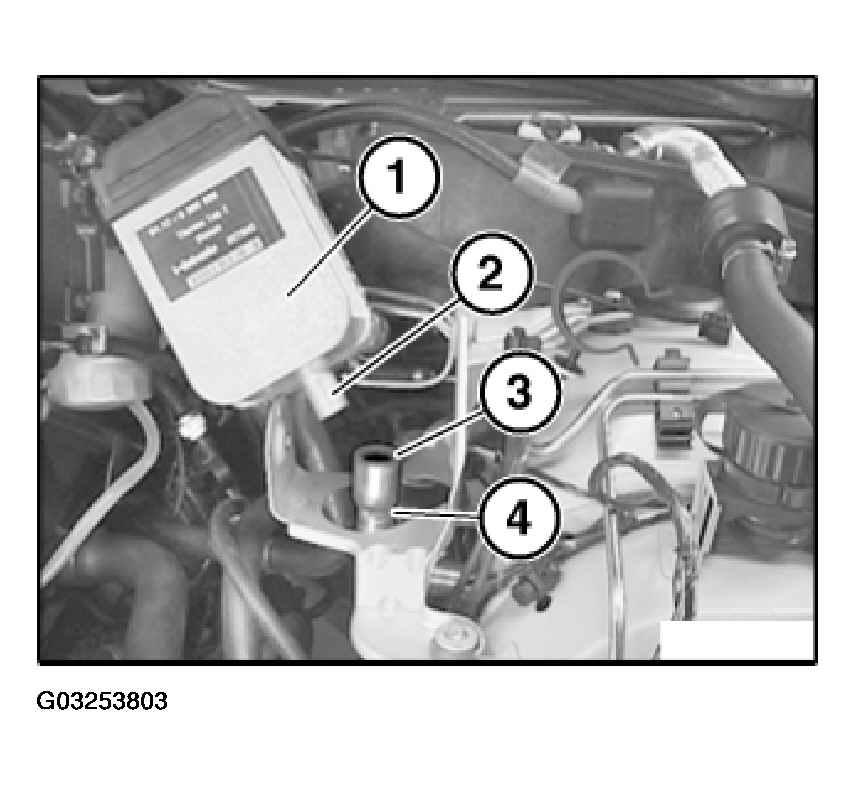

Fig 3: Detaching Exhaust Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure gasket (3) is correctly seated.

Remove front left wheel.

Remove wheel arch cover at front left.

Fold back plug connection holder (1) in direction of arrow.

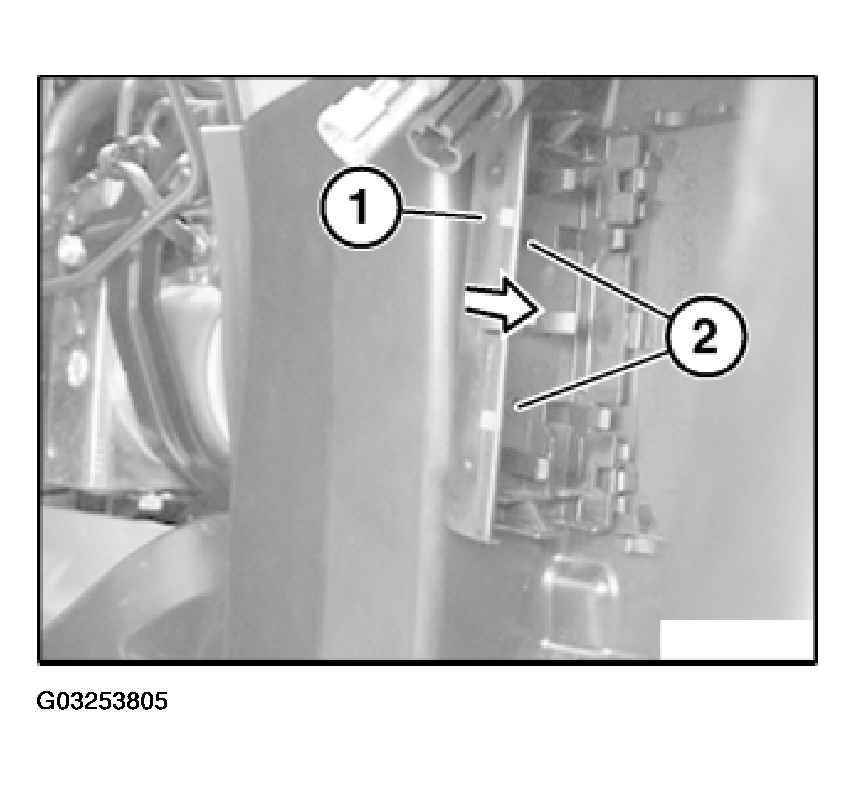

Fig 4: Folding Back Plug Connection Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plug connections (2) and (3) and disconnect.

Pull out pins (2) with aid of appropriate metal screw.

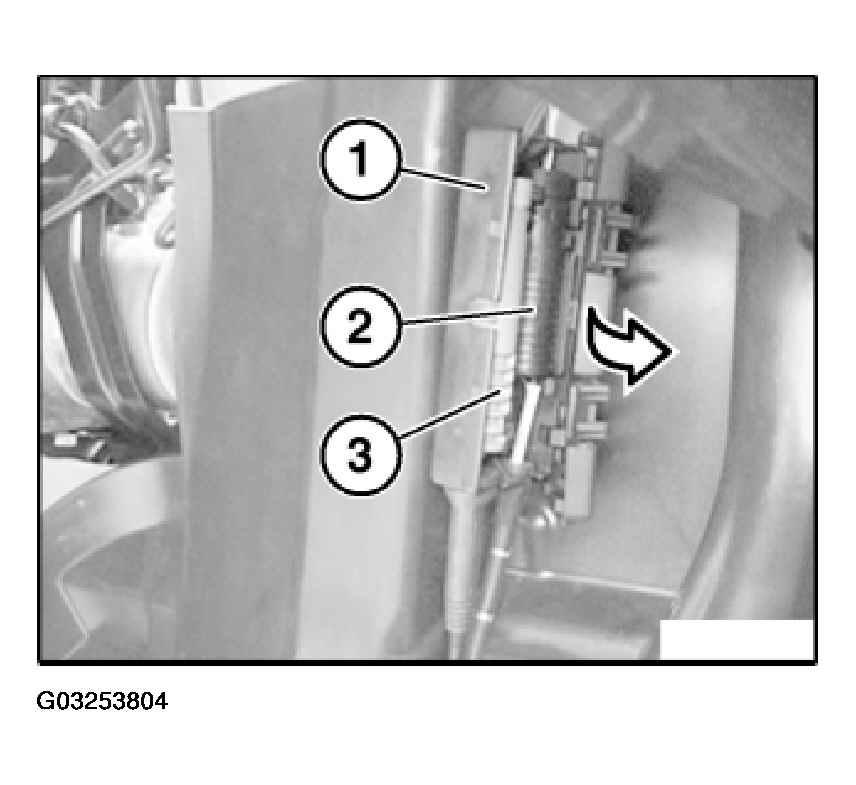

Fig 5: Unclipping Plug Connection Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plug connection holder (1) in direction of arrow.

Loosen screws (2).

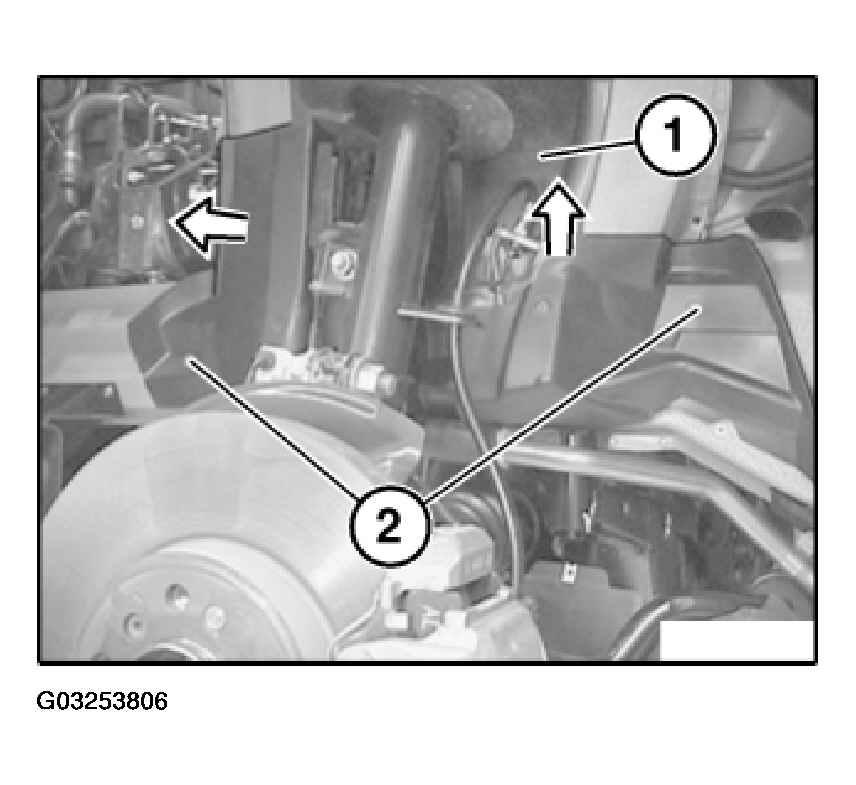

Fig 6: Detaching Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cover (1) at front in direction of arrow a little and push upwards.

NOTE: For purposes of clarity, illustration shows exhaust pipe (bottom) removed.

Loosen screws (1).

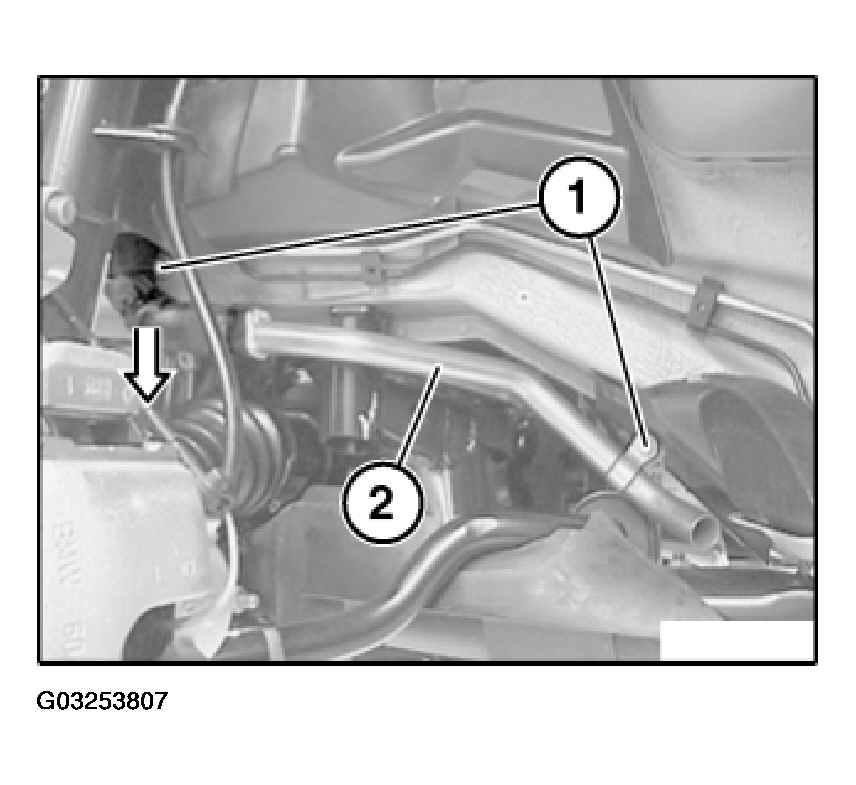

Fig 7: Pulling Out Exhaust Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out exhaust pipe (2) downwards.

Installation:

Make sure rubber seal (1) and heat insulation (2) are correctly seated.

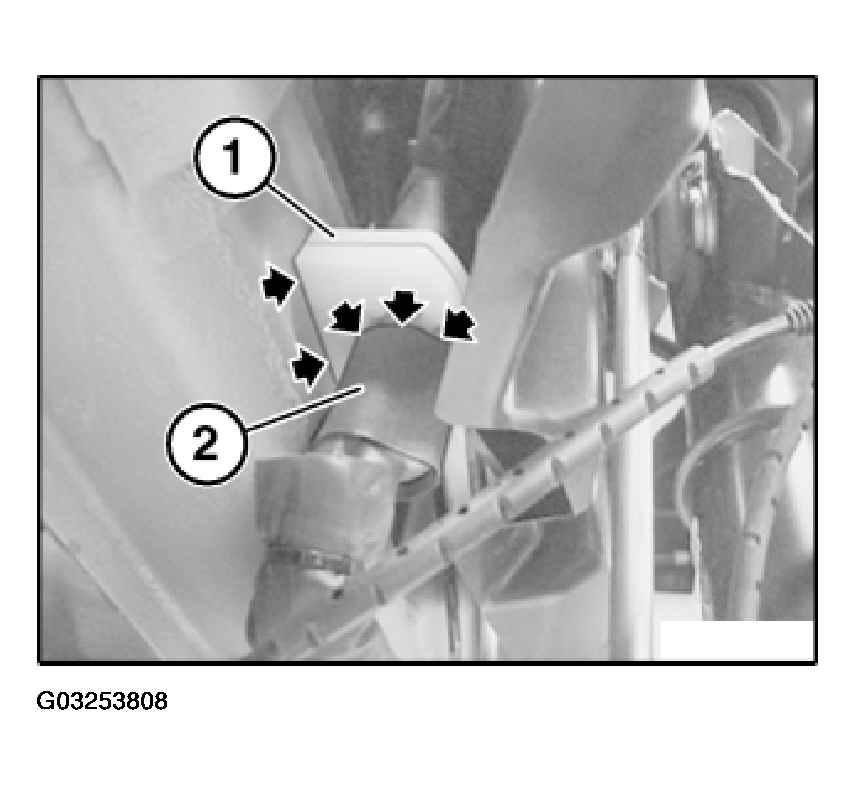

Fig 8: Checking Rubber Seal And Heat Insulation

Courtesy of BMW OF NORTH AMERICA, INC.
