63 13 200 Removing And Installing/Replacing Front Left Or Right Auxiliary Turn Indicator Light

WARNING: This page is about a different variant/trim than selected.

Slide auxiliary turn indicator light (1) forwards and remove.

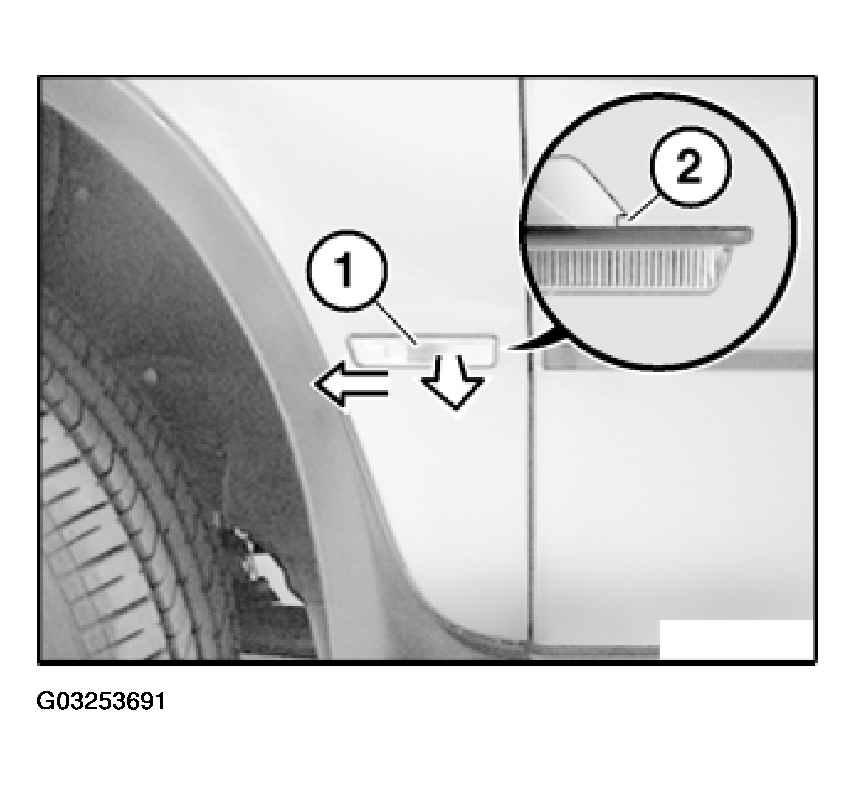

Fig 1: Removing Auxiliary Turn Indicator Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure that seal is correctly seated.

If necessary, replace seal.

Snap retaining hook (2) into fender.

Disconnect plug connection (1) and remove auxiliary turn indicator light (2).

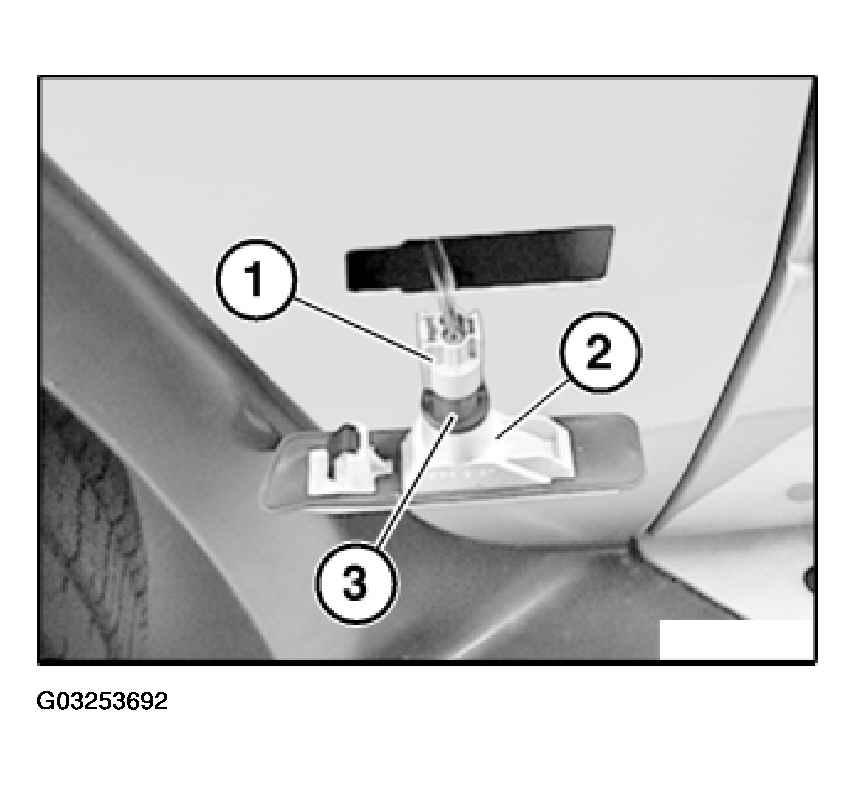

Fig 2: Removing Auxiliary Turn Indicator Light Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb holder (3) counterclockwise through approx. 45° and remove.

Pull bulb out of holder.

NOTE: Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb.
Note type of bulb. Refer to 63 13 TURN SIGNALS E53 .
