63 21 183 Removing And Installing/Replacing Left Or Right Rear Light (In Rear Lid Lower Section)

WARNING: This page is about a different variant/trim than selected.

Lever out insert (1) in rear lid lower section panel in direction of arrow and remove.

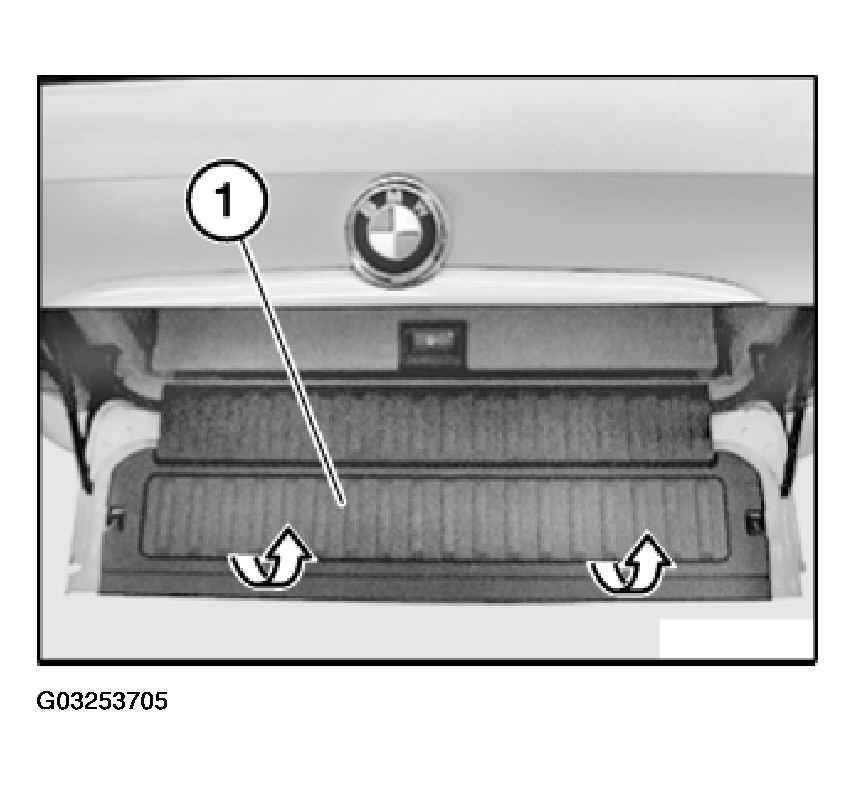

Fig 1: Removing Insert

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure rear light against falling out.

Disconnect plug connection (1).

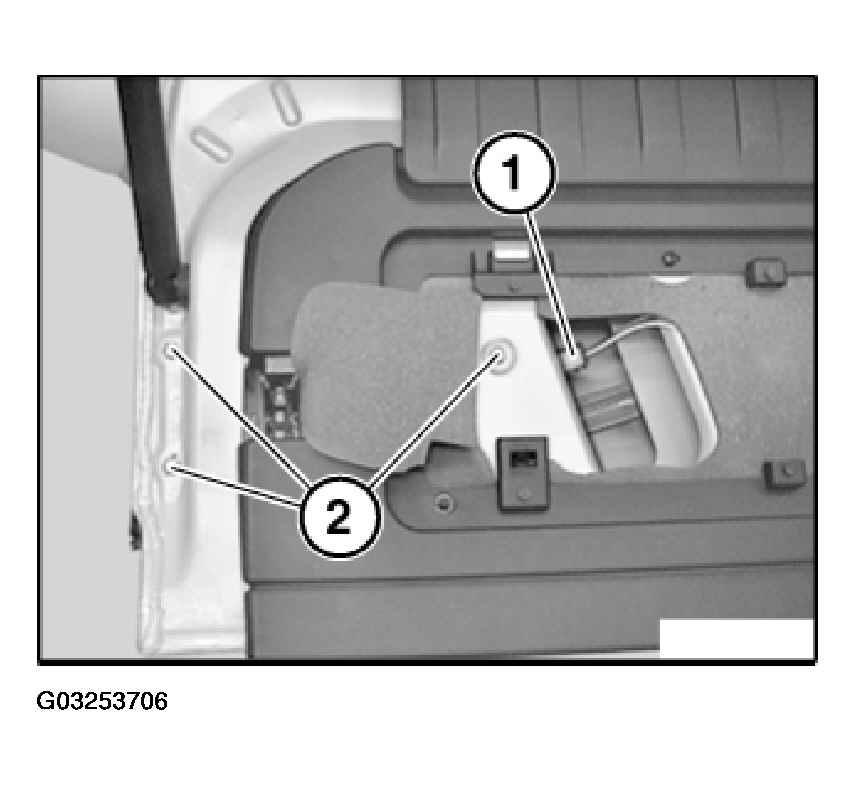

Fig 2: Removing Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove rear light.

Installation:

If necessary, replace tail light seal.
