63 21 180 Removing And Installing/Replacing Left Or Right Tail Light

WARNING: This page is about a different variant/trim than selected.

Remove flap in luggage compartment trim panel. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

NOTE: For purposes of clarity, illustration shows fixture for CD changer/navigation computer removed.

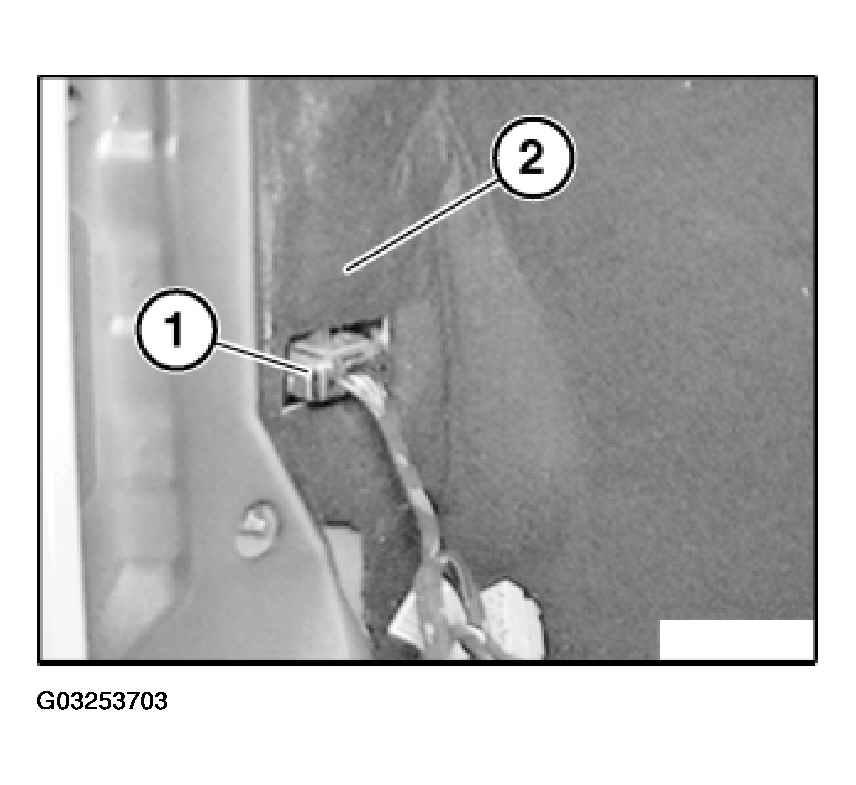

Disconnect plug connection (1) and fold sound insulation (2) to one side.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

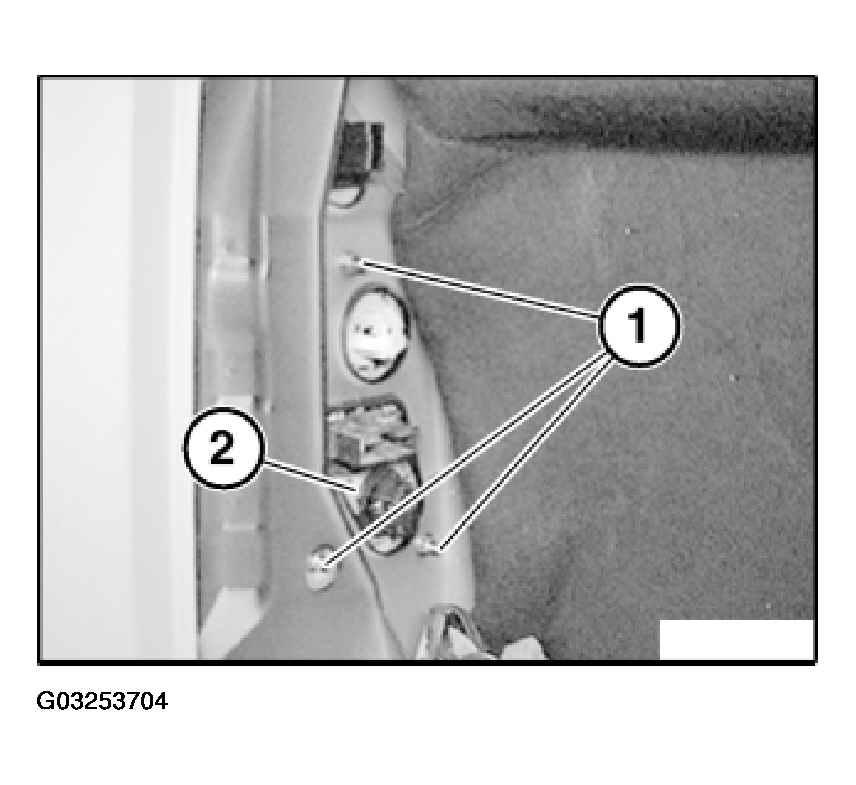

Release nuts (1) and remove rear light (2).

Fig 2: Removing Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace tail light seal.
