63 99 431 Replacing light bulb(s) for ceiling light

WARNING: This page is about a different variant/trim than selected.

CAUTION: Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Version with inside reading lamps:

Remove complete ceiling light (with inside reading lamps). Refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT .

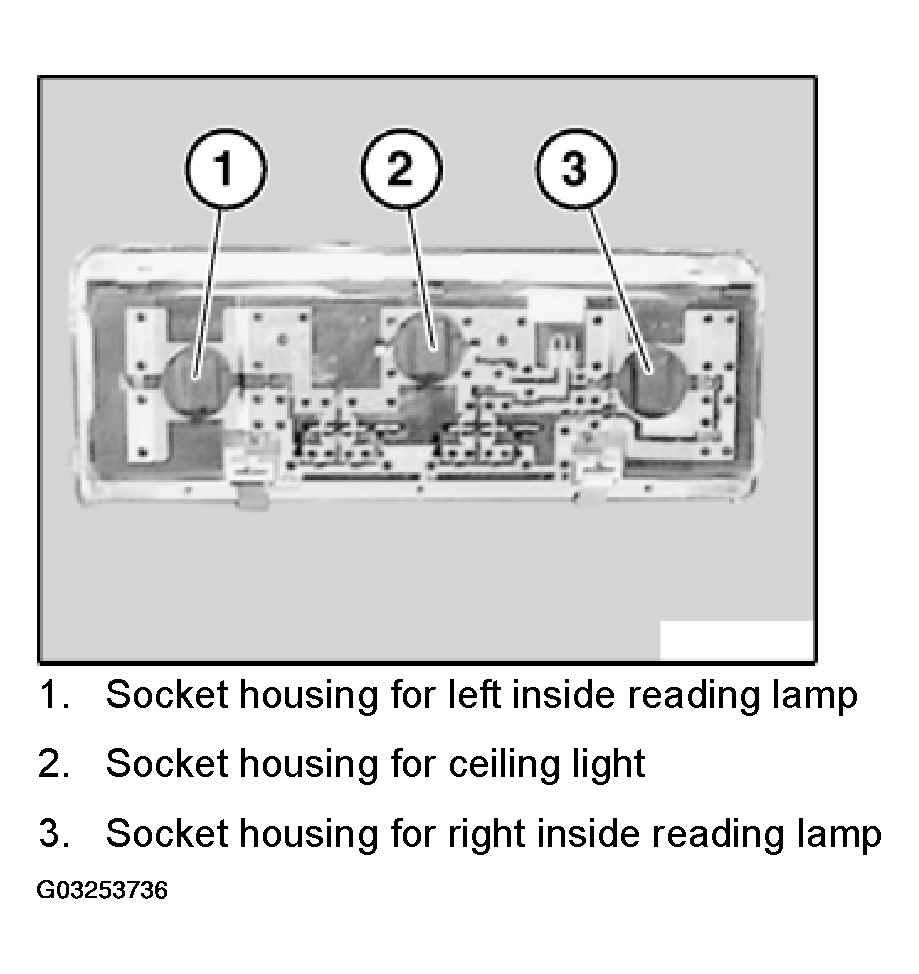

Turn socket housing for bulb counterclockwise and remove.

Fig 1: Removing Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bulb.

NOTE:

Version without inside reading lamps:

Remove complete ceiling light (without inside reading lamps).

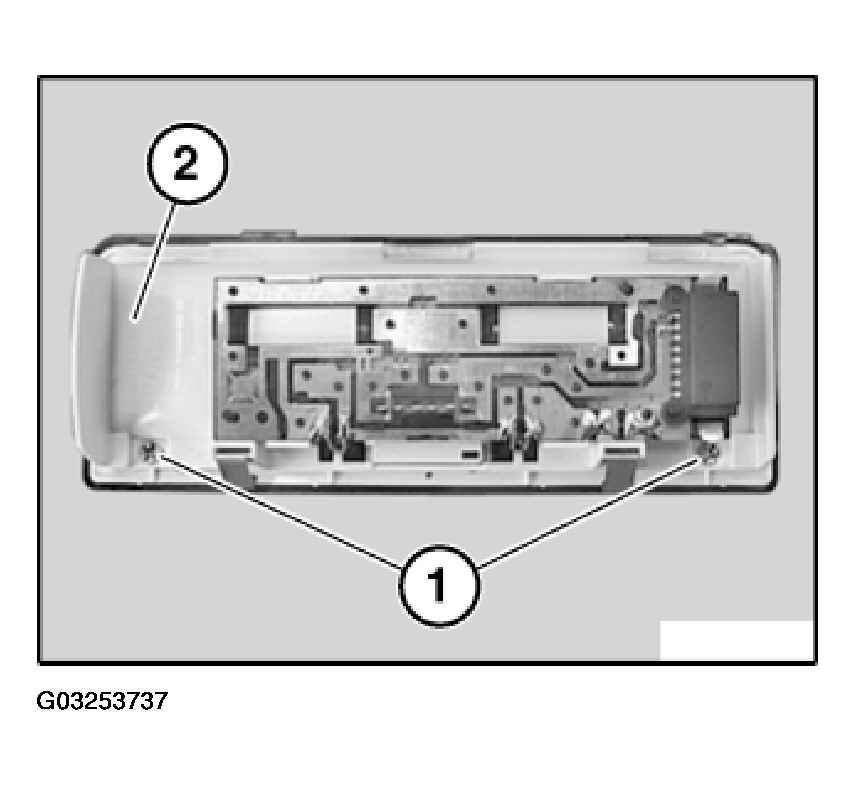

Fig 2: Removing Ceiling Light

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Remove ceiling light (2) from lens underneath.

Remove bulb(s).

All:

Installation:

Note type of bulb. Refer to 63 31 INTERIOR LIGHTS E53 .
