63 99 076 Replacing Bulb For Left Xenon Headlight

WARNING: This page is about a different variant/trim than selected.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

M62 only:

Release screws (1) and remove equipment carrier (2).

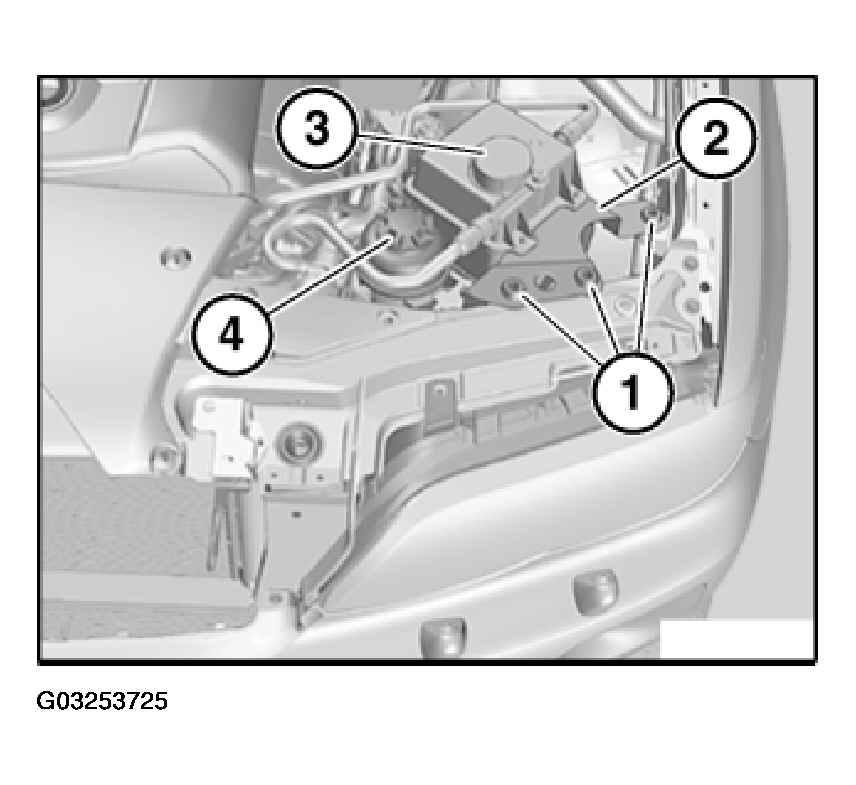

Fig 1: Removing Equipment Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

N62 only:

Release screws (1).

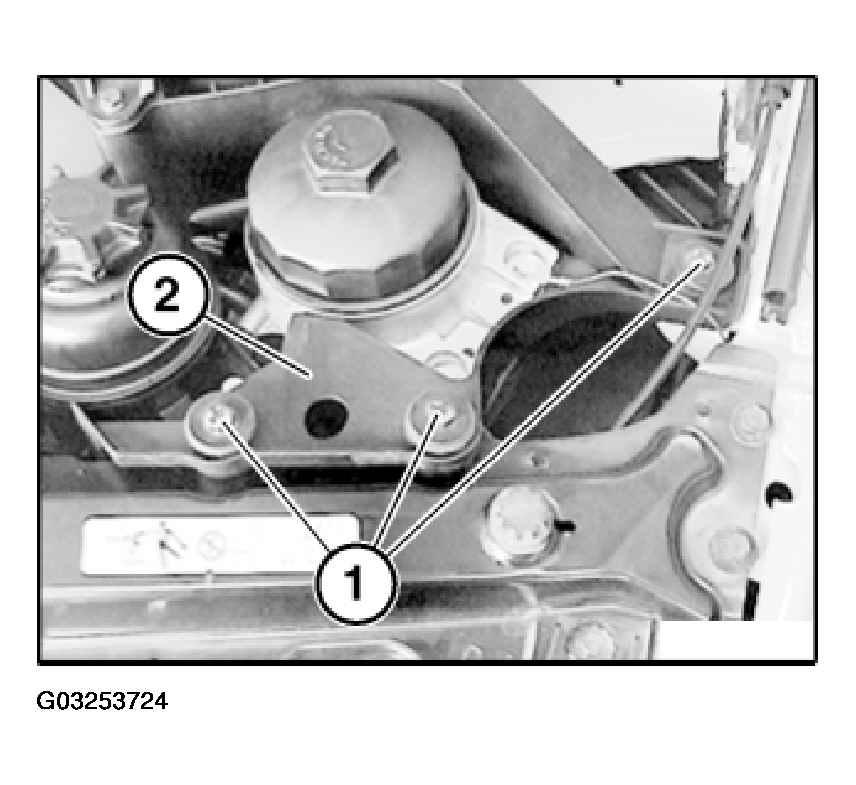

Fig 2: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Make sure cover caps (3) and (4) are firmly seated.

Lay equipment carrier (2) to one side.

Up to 10/2003:

NOTE: For purposes of clarity, illustration shows component removed.

Release screws (1) and remove protective cap (2).

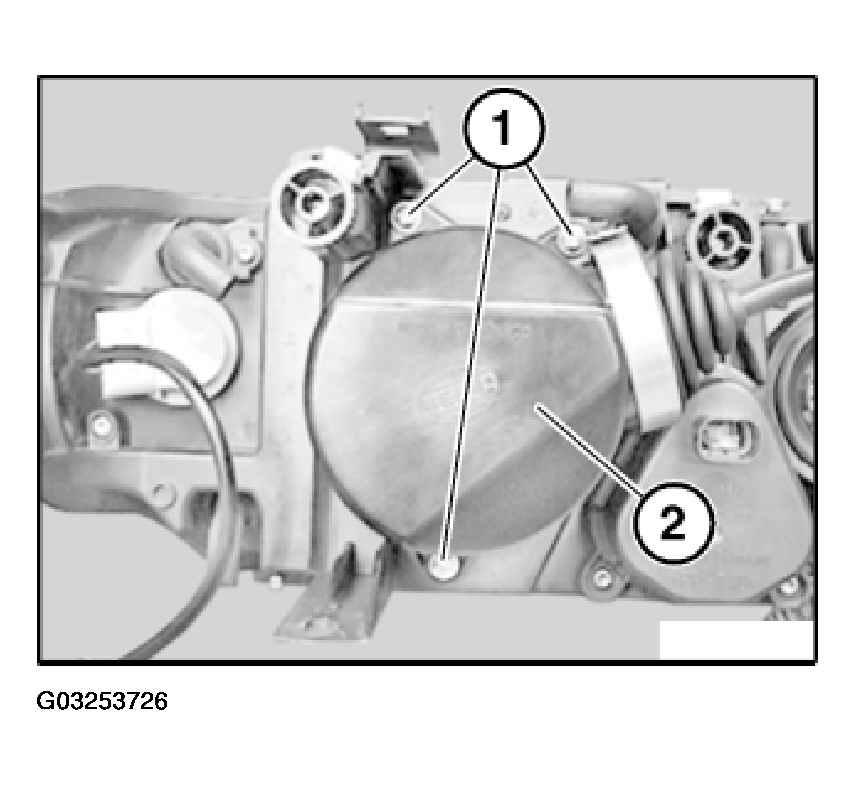

Fig 3: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace seal of protective cap (2).

Turn ignition unit plug connection (1) counterclockwise through approx. 45° and disconnect.

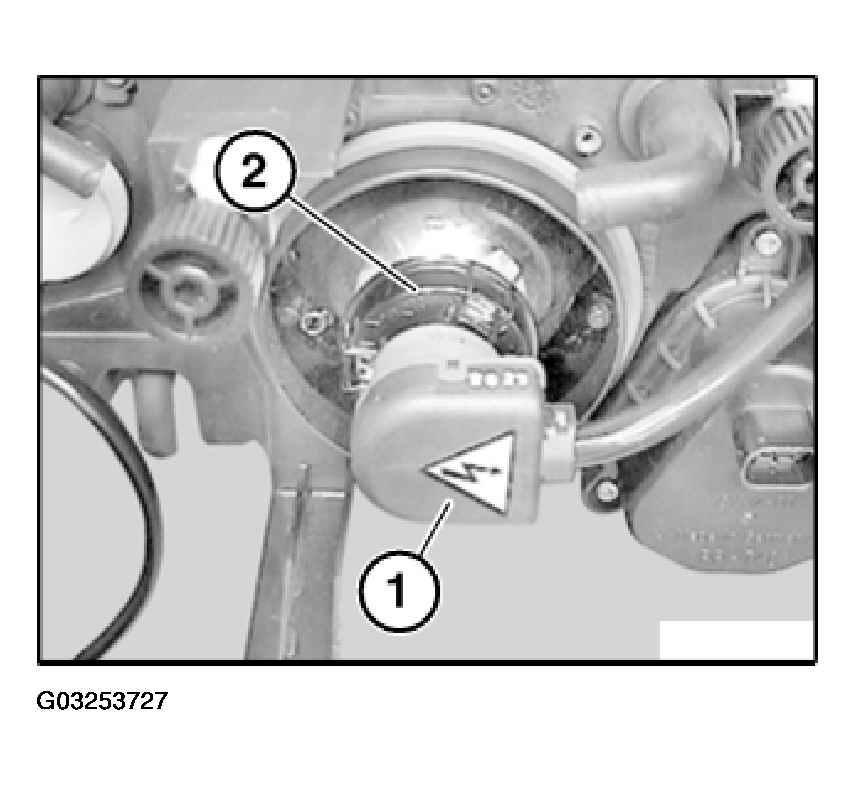

Fig 4: Removing Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Turn snap ring (2) counterclockwise through approx. 45°.

Remove lamp for xenon light.

From 10/2003:

Necessary preliminary tasks:

Press locking clip (1) and open in direction of arrow.

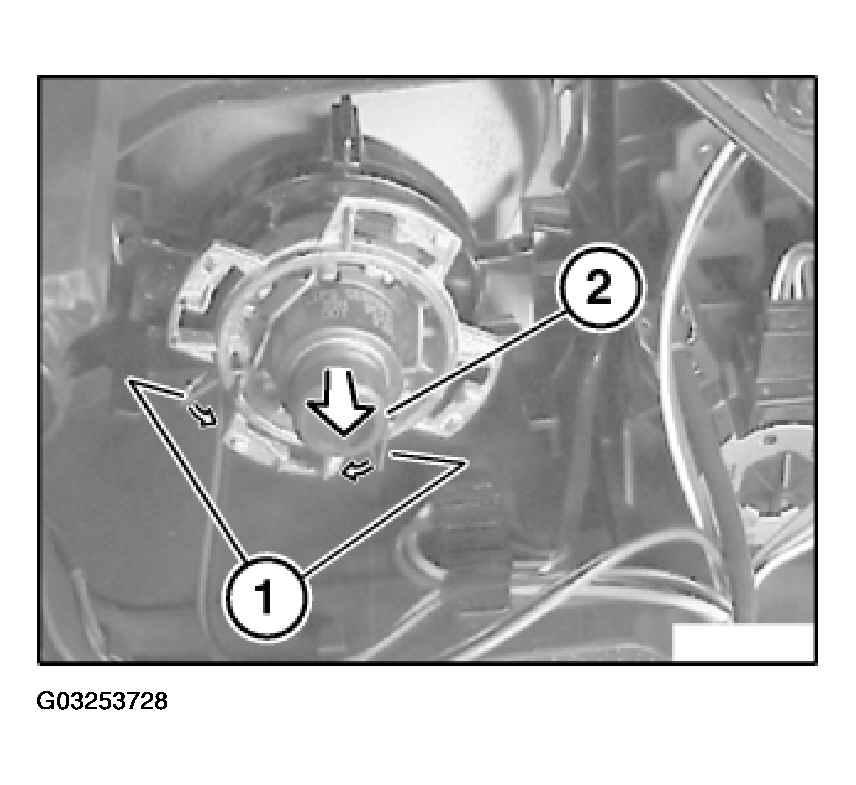

Fig 5: Removing Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bulb for xenon headlight (2) in direction of arrow.

All:

Installation:
