63 99 071 Replacing halogen-light bulb for left or right headlight

WARNING: This page is about a different variant/trim than selected.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Up to 10/2003:

Disconnect plug connection (1).

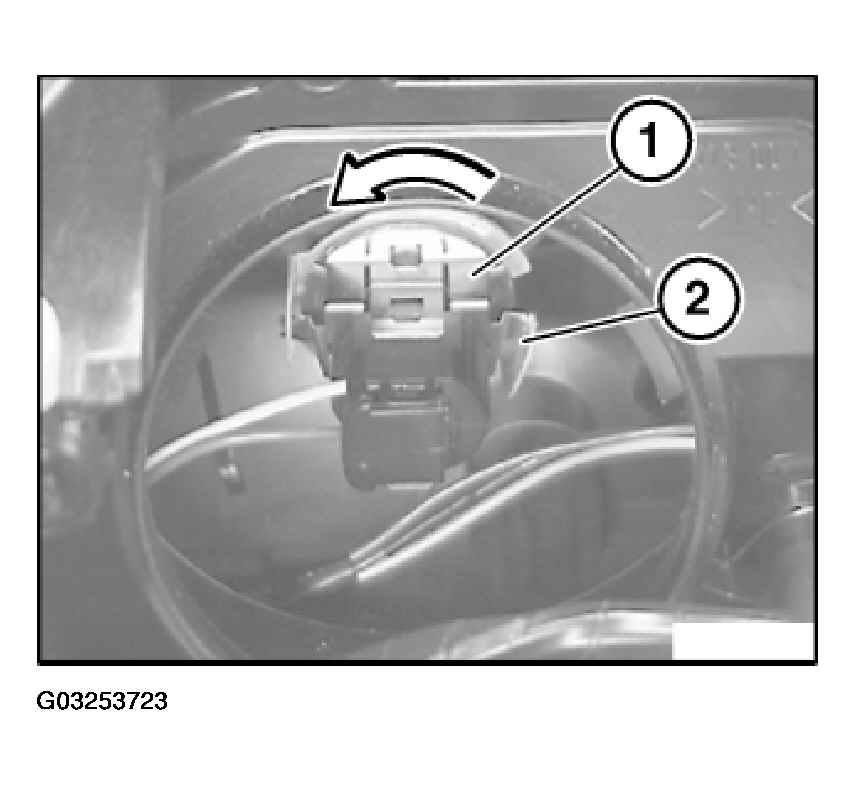

Fig 1: Removing Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb holder (2) approx. 45° in direction of arrow and remove.

Remove bulb.

From 10/2003:

Turn cover (1) in direction of arrow and remove from headlight (2).

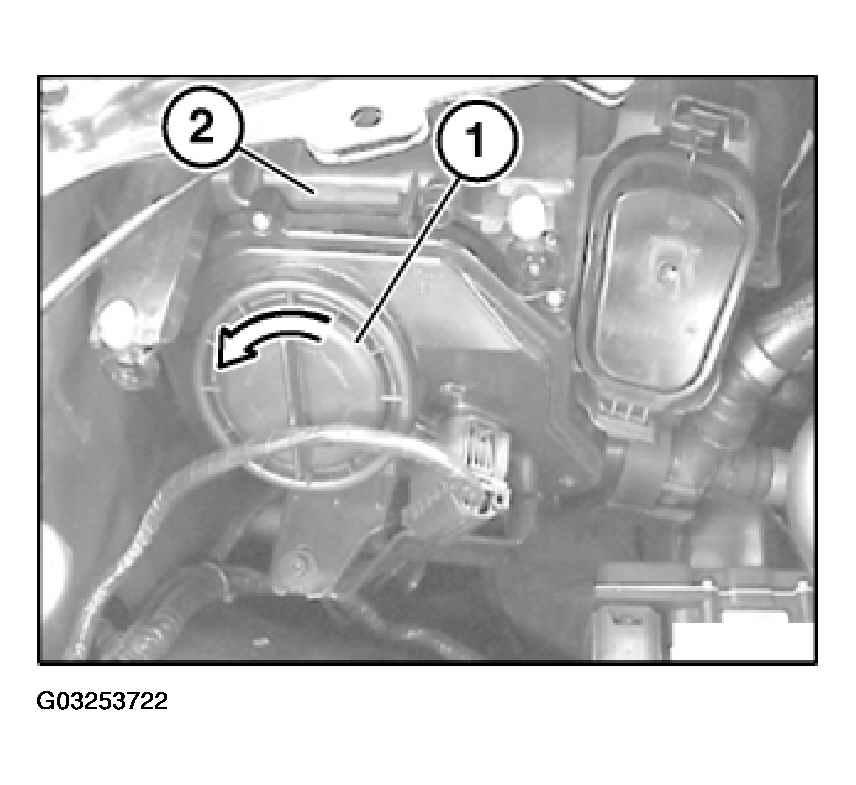

Fig 2: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure seal of cover (1) is correctly seated.

Turn bulb holder (1) in direction of arrow and remove towards rear from carrier (2).

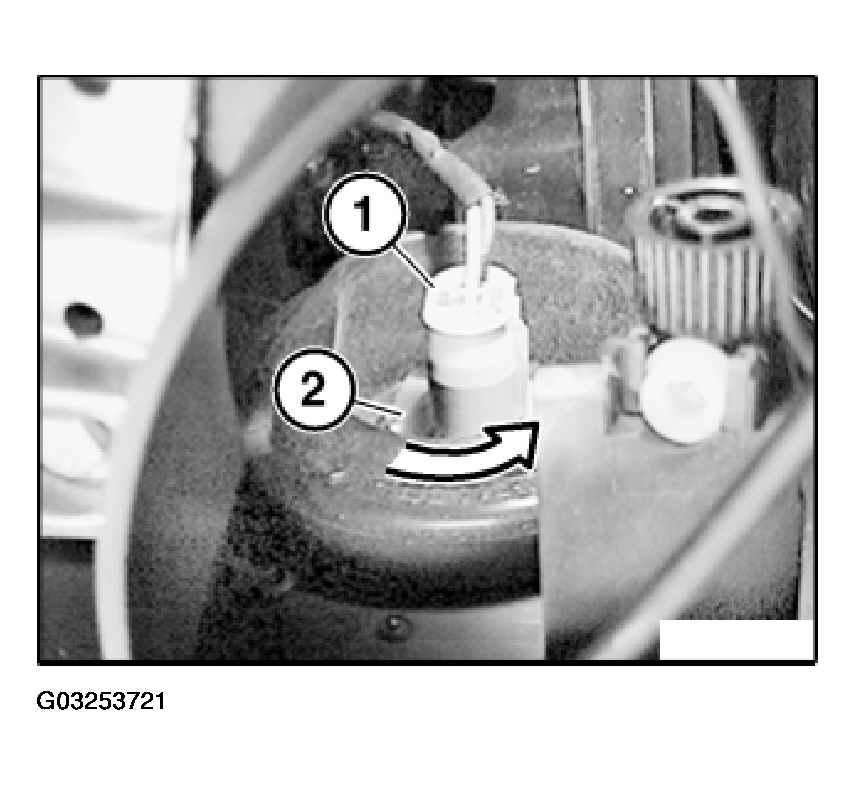

Fig 3: Detaching Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Detach bulb from bulb holder (1).

All:

Installation:
