63 31 150 Removing and installing/replacing glove box light

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Lever out glovebox light (1) in direction of arrow.

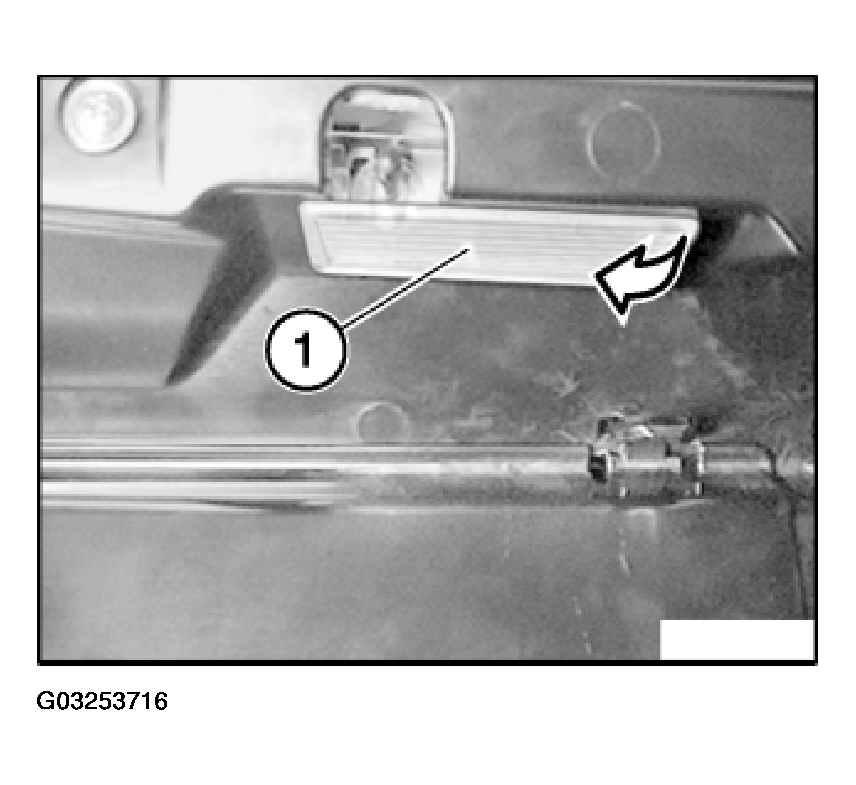

Fig 1: Removing Glovebox Light

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection and remove glovebox light (1).

Replacement:

If necessary, remove bulb.

Note type of bulb. Refer to 63 31 INTERIOR LIGHTS E53 .
