63 31 023 Removing And Installing/Replacing FOOTWELL Light (On Floor Trim Panel, Rear)

WARNING: This page is about a different variant/trim than selected.

Lever out lens cover (1) on opening in direction of arrow.

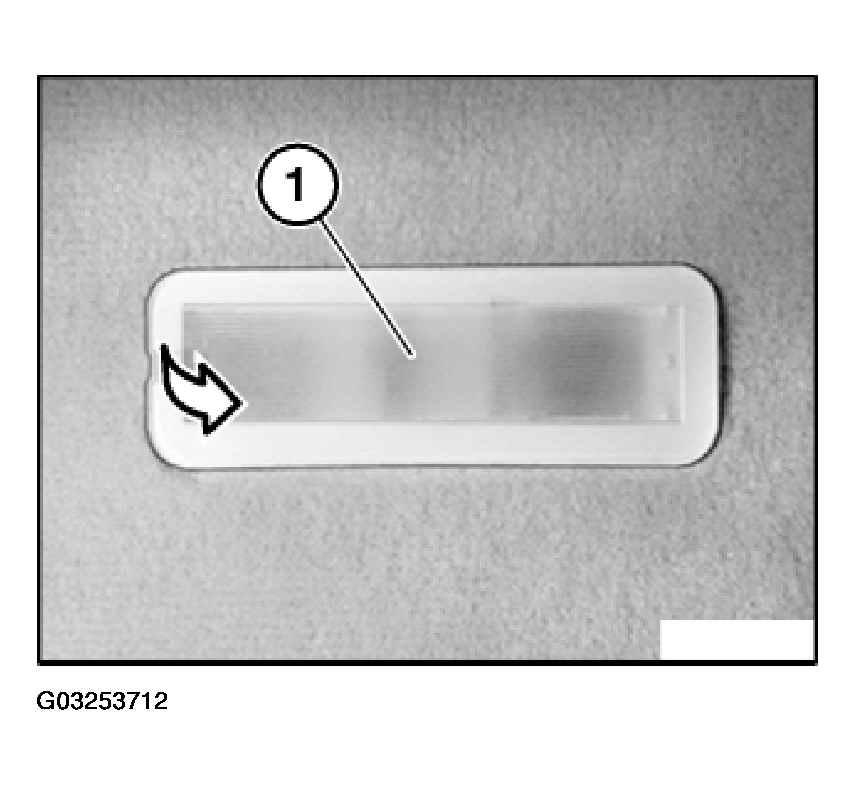

Fig 1: Removing Lens Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out bulb (1).

NOTE: Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb.
Note type of bulb. Refer to 63 31 INTERIOR LIGHTS E53 .

Release nuts (2) and remove footwell light (3).

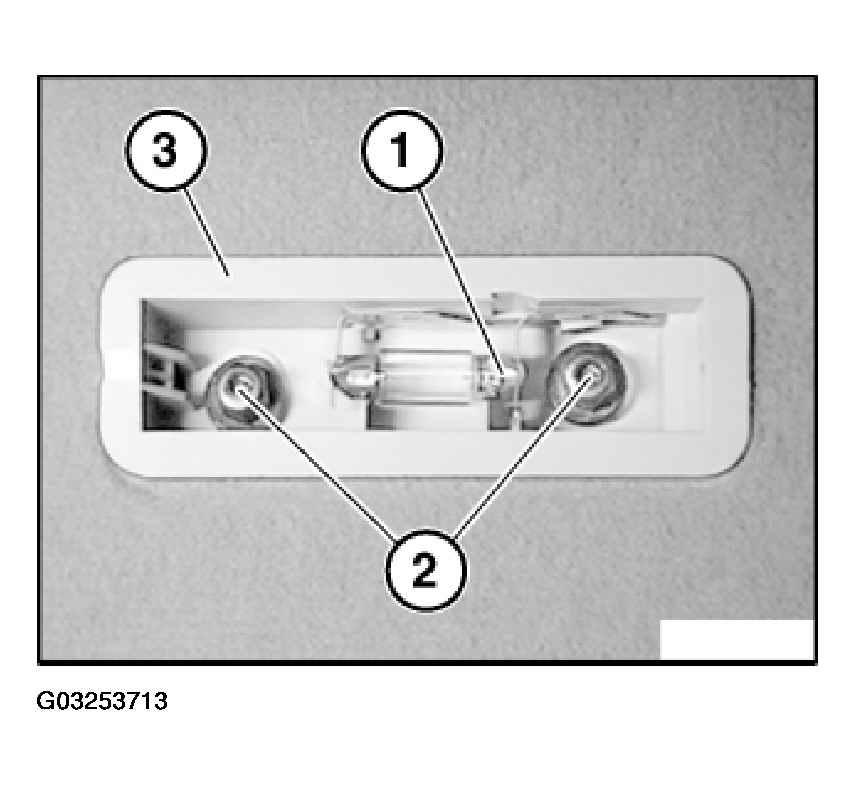

Fig 2: Removing Footwell Light

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection.
