Front Ceiling Light:

WARNING: This page is about a different variant/trim than selected.

Lever out ceiling light (1) in direction of arrow.

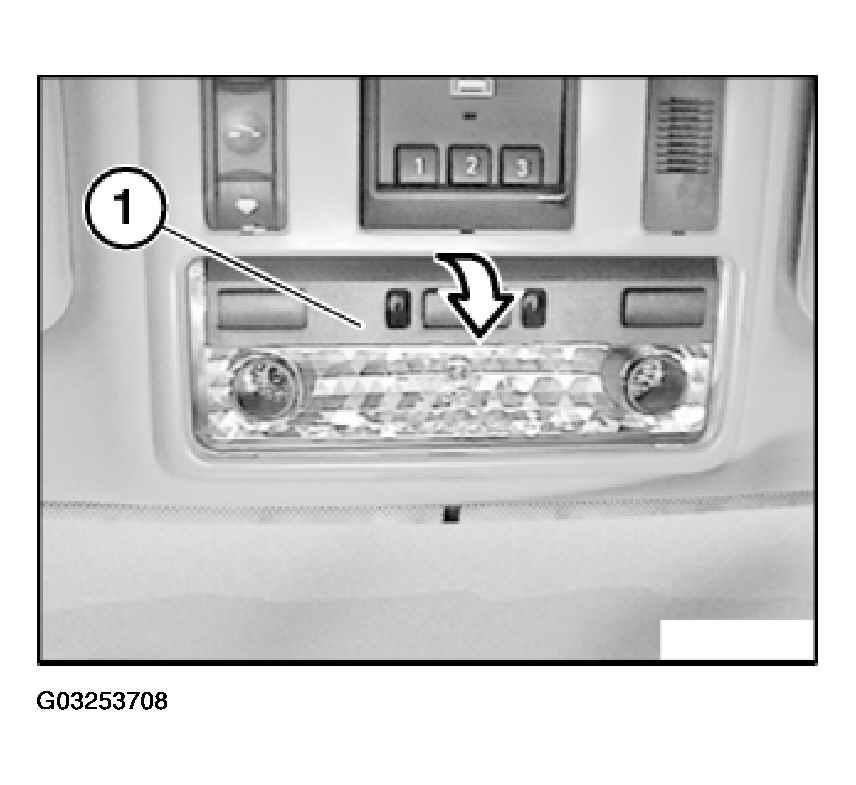

Fig 1: Removing Ceiling Light (Front)
G03253708Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection underneath and remove ceiling light (1).
