63 25 000 Removing and installing/replacing additional stop light

WARNING: This page is about a different variant/trim than selected.

Remove rear spoiler. Refer to 51 71 412 REMOVING AND INSTALLING REAR SPOILER .

Disconnect plug connection (1) and unclip plug.

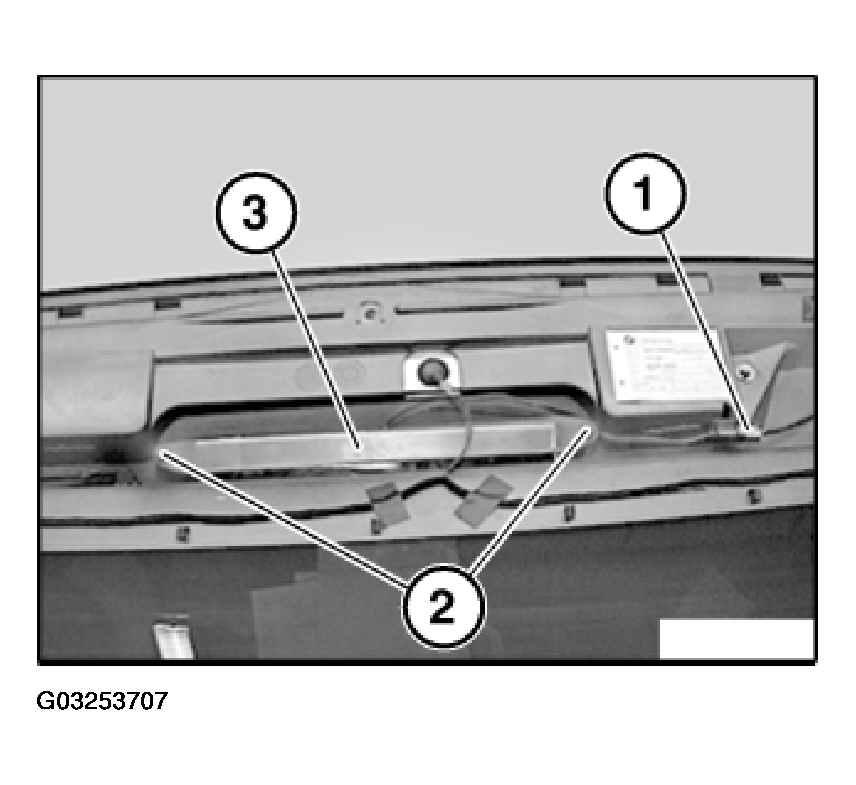

Fig 1: Removing Auxiliary Brake Light
G03253707Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove auxiliary brake light (3).
