61 11 .... Replacing wiring harness at front right

WARNING: This page is about a different variant/trim than selected.

Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM (UP TO 10/03) .

Remove cowl panel cover. Refer to 51 13 115 REMOVING AND INSTALLING/REPLACING COWL PANEL COVER .

Remove wheel arch cover at front right.

Remove passenger seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL / ELECTRIC) or 52 17 000 REMOVING AND INSTALLING FRONT SEAT (COMFORT) .

Disconnect battery negative lead. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Remove lower right trim from instrument panel. Refer to 51 45 181 REMOVING AND INSTALLING/REPLACING TRIM FOR INSTRUMENT PANEL, BOTTOM RIGHT .

Remove entrance cover strip on right. Refer to 51 47 000 REMOVING AND INSTALLING/REPLACING THE FRONT (INSIDE) LEFT OR RIGHT ROCKER PANEL STRIP .

Remove footwell side trim panel on A-pillar on right. Refer to 51 43 075 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, RIGHT .

Remove glovebox. Refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

Remove storage tray. Refer to 51 16 200 REMOVING AND INSTALLING CENTER CONSOLE .

Unhook holder (1).

Fig 1: Removing Heating Duct For Right Footwell

Courtesy of BMW OF NORTH AMERICA, INC.

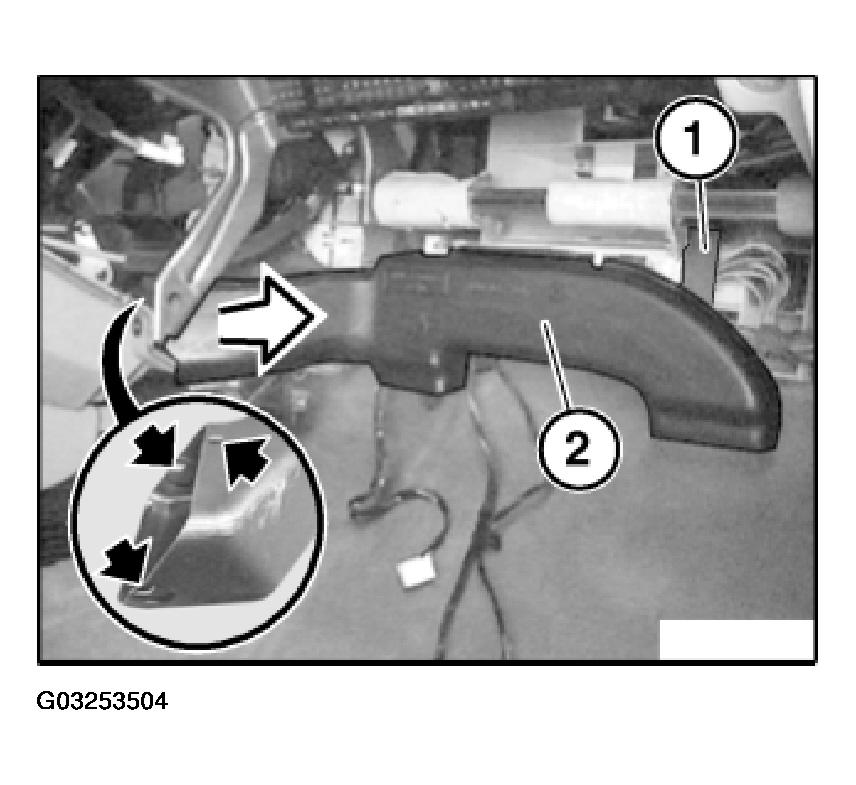

Unclip heating duct for right footwell (2) and remove in direction of arrow.

Installation:

Ensure heating channel for right footwell (2) is correctly seated.

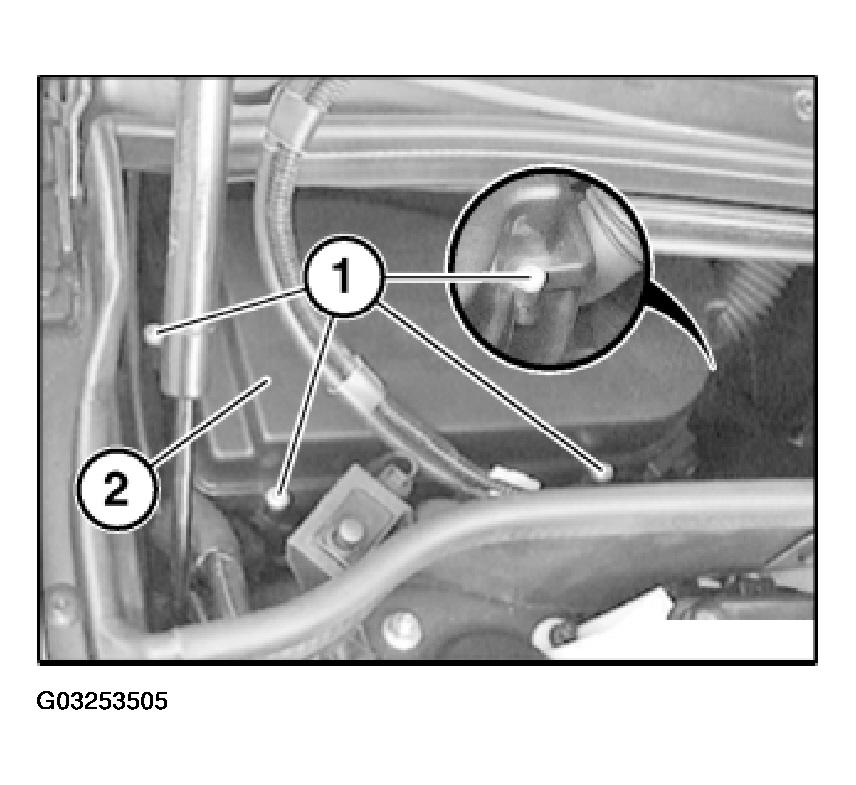

Loosen screws (1).

Fig 2: Removing Lid Of Control Unit Box

Courtesy of BMW OF NORTH AMERICA, INC.

Remove lid (2) of control unit box.

Unscrew bolt (1).

Fig 3: Removing Module Holder From Mountings

Courtesy of BMW OF NORTH AMERICA, INC.

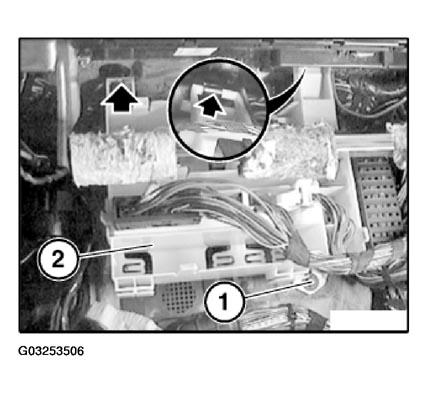

Unclip module holder (2) from both mountings and remove.

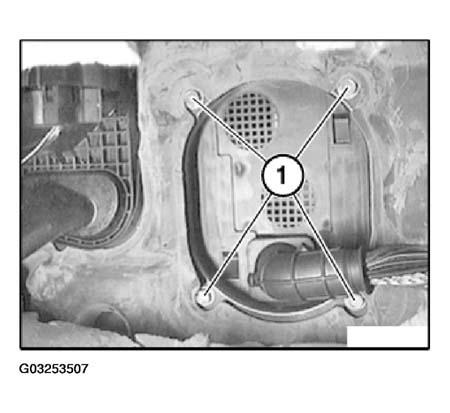

Release screws (1) on control unit box.

Fig 4: Releasing Screws On Control Unit Box

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Under no circumstances bend carpet.

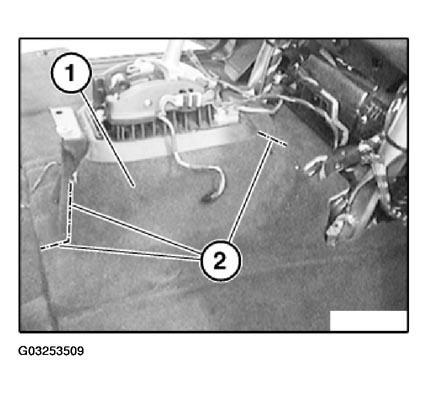

Cut carpet (1) as illustrated as closely as possible to A/C unit.

Fig 5: Cutting Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join cutting lines at marked points (2) with cable ties (short) from repair kit.

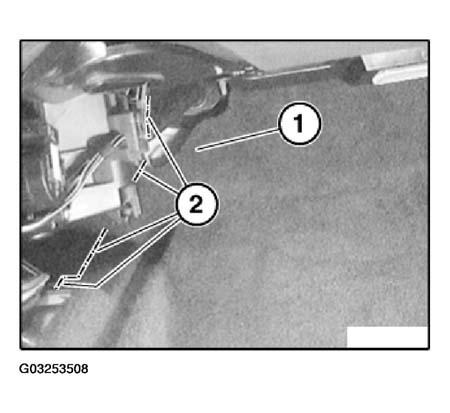

Cut carpet (1) as illustrated and remove from car.

Fig 6: Removing Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join cutting lines at marked points (2) with cable ties (short) from repair kit.

CAUTION: Vehicles with tire pressure control (RDC):

Unwind operational RDC lead from wiring harness.

Replace faulty RDC lead separately (refer to Electronic Parts Catalog).

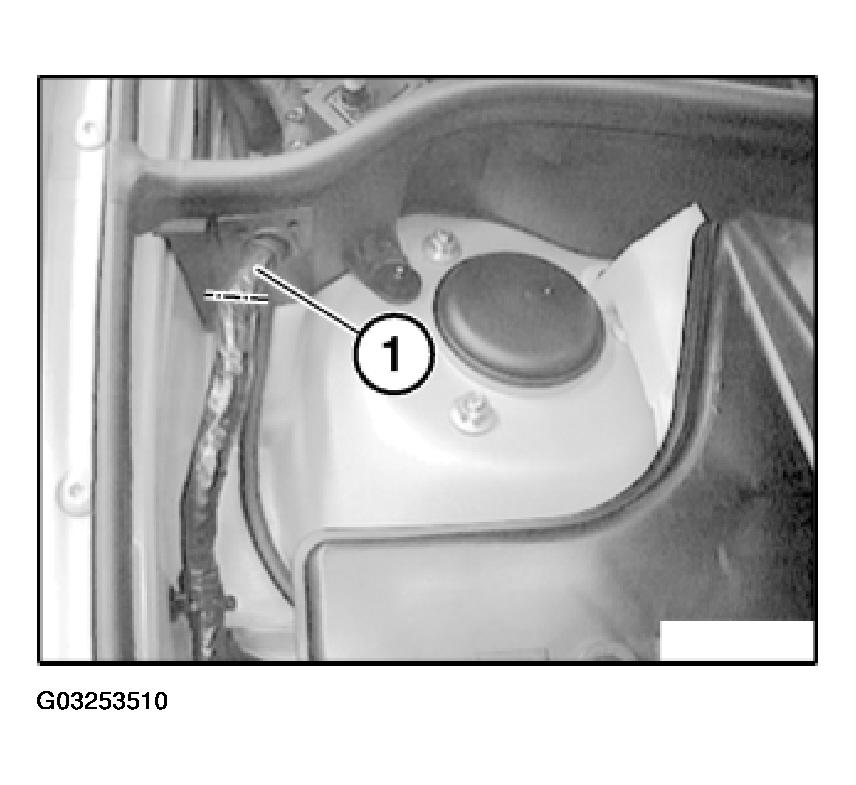

Cut through wiring harness (1) approx. 10 cm before splash shield and pull back from inside into footwell.

Fig 7: Removing Wiring Harness From Engine Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cut wiring harness from engine compartment and remove.

General information:

Information on assigning the repair connectors are contained in the DIS under the heading Component and signal information / pin, fan and solder connectors / connectors from X1... / X18987 - X18988.

Installation:

The cable ties and foam supports contained in the repair kit are for securing the repair plugs.

Fit all cut leads of main wiring harness with stop parts. Pin in leads in accordance with schematic in DIS.

Strip insulation from cable.

Crimp stop parts. Refer to 61 13 ... CRIMPING ANNULAR CONTACTS .

Connect precrimped leads to corresponding plugs (refer to schematic). Cut off and insulate unpinned leads.

Installation/removal of multiple connector systems. Refer to 61 13 ... OPENING PLUG HOUSINGS AND REMOVING CONTACTS OF DIFFERENT PLUG SYSTEMS .

Replace cable ties that have been cut open.

Installation:

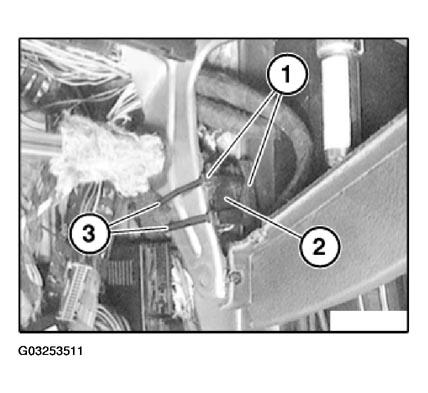

Stick foam supports (1) from repair kit as illustrated to strut and carrier. Secure repair plugs (2) with long cable ties (3) from repair kit to strut.

Fig 8: Identifying Foam Supports & Repair Plugs

Courtesy of BMW OF NORTH AMERICA, INC.
