61 61 100 Removing And Installing/Replacing Both Windshield Wiper Arms

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Remove cover (1).

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

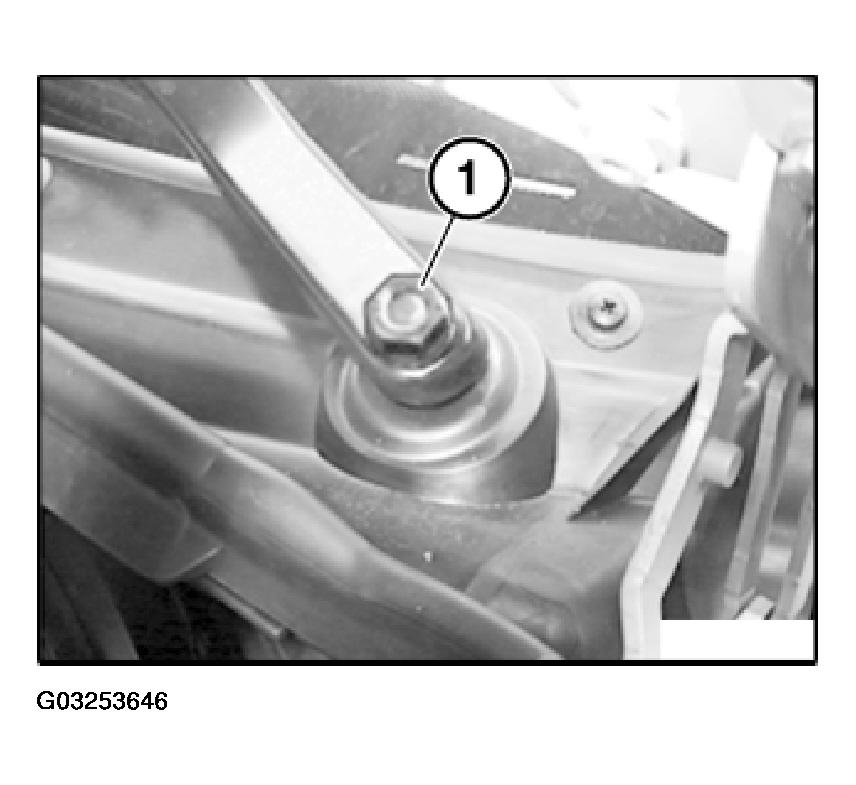

Unscrew nut (1).

Fig 2: Unscrewing Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tighten nut to appropriate torque, 61 61 8AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

After waiting 15 minutes, retighten nut to appropriate torque, 61 61 8AZ.

CAUTION: Do not bend wiper arm during removal (risk of breakage).

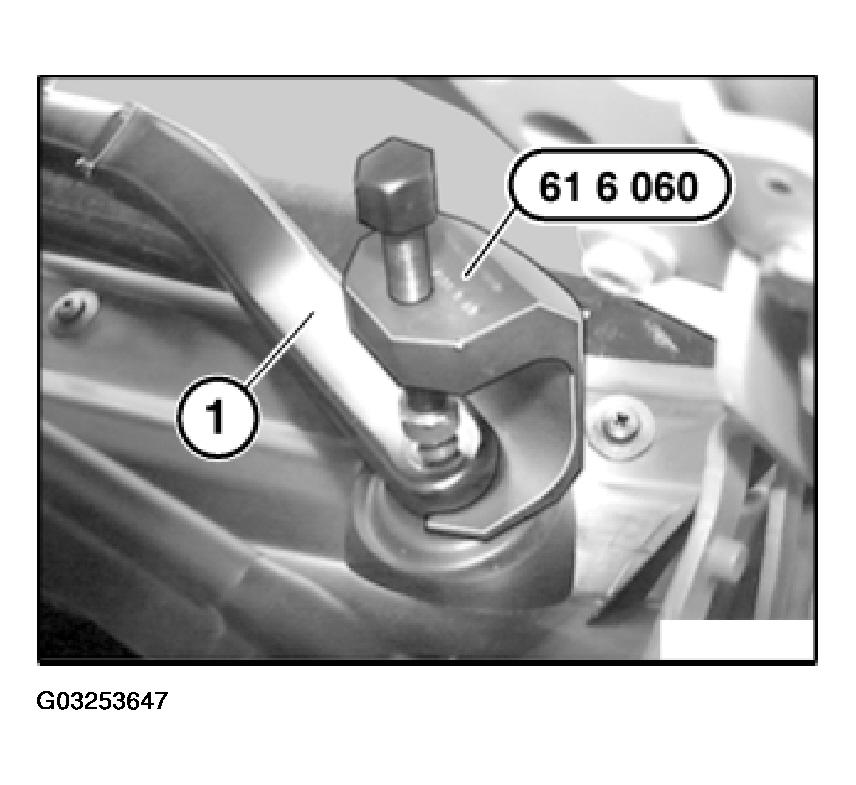

Detach windshield wiper arm with special tool 61 6 060.

Fig 3: Detaching Windshield Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove wiper blade.

Installation:

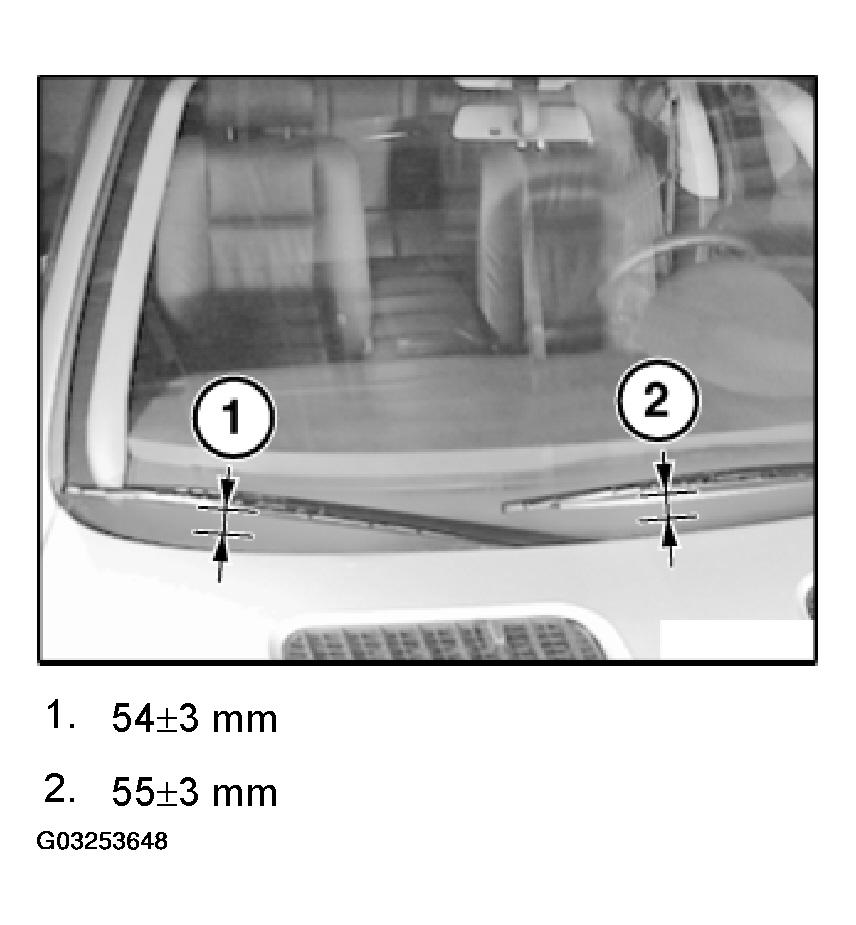

Adjust position of wiper arm in question in rest position (measured between wiper lip and top edge of cowl panel cover).

Fig 4: Adjusting Position Of Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Then tighten down wiper arm and check position of relevant wiper arm again.
