61 71 015 Removing And Installing/Replacing A Jet Nozzle In Windshield Washer System

WARNING: This page is about a different variant/trim than selected.

Special tools required:

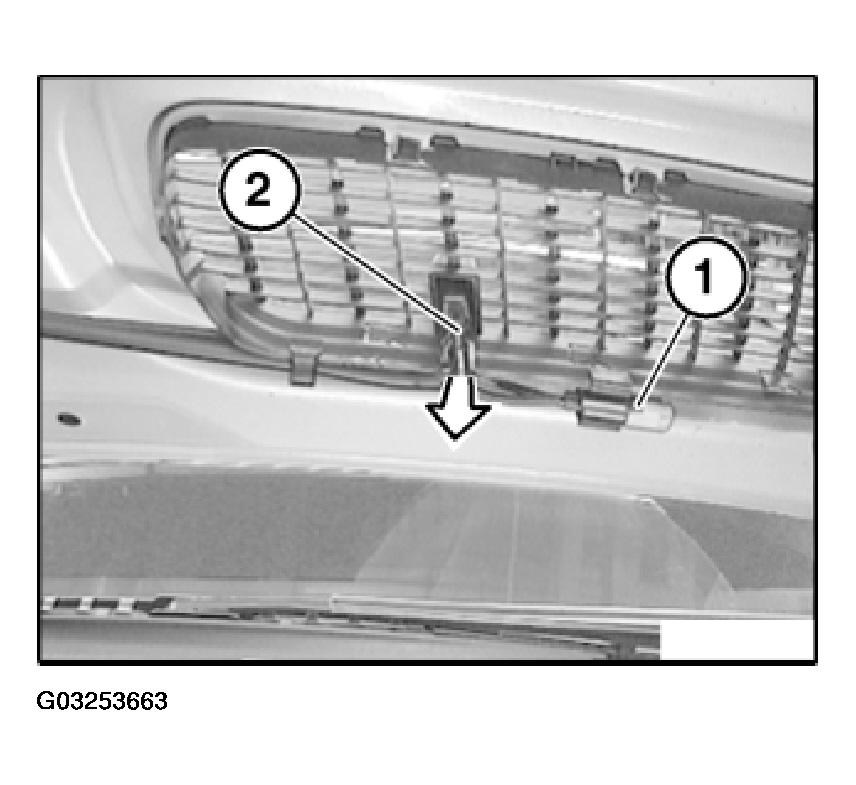

Unclip plug connection (1) and disconnect.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Detach angle (2) or T-piece from jet nozzle.

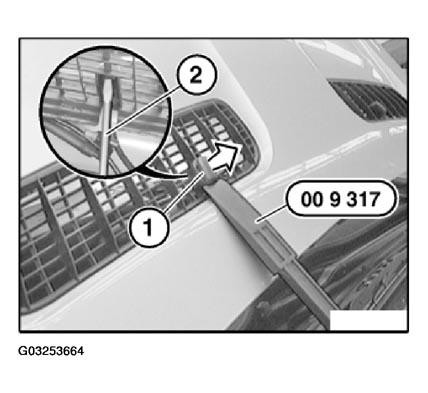

Unlock jet nozzle (1) with a suitable screwdriver (2).

Fig 2: Removing Jet Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out jet nozzle (1) with special tool 00 9 317 and remove.

Installation:

Ensure hose is laid without kinks.

Adjust jet nozzle.
