61 13 .. Unlocking And Disconnecting Different Plug Connections

WARNING: This page is about a different variant/trim than selected.

NOTE: Examples of unlocking and disconnecting different plug connections.

Press lock and open clip in direction of arrow.

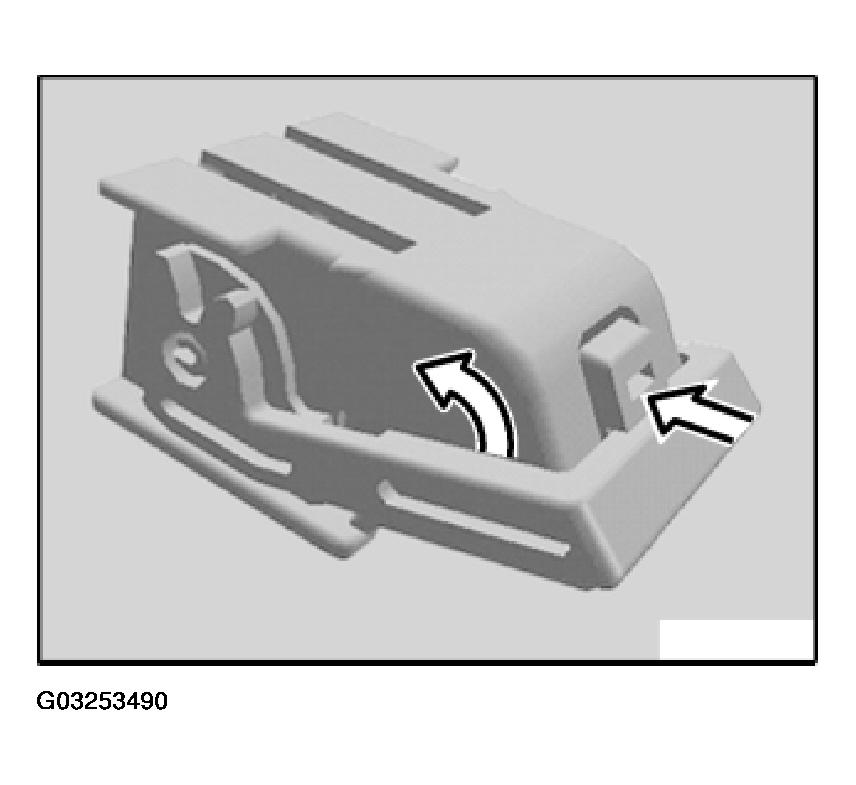

Fig 1: Pressing Lock And Opening Clip

G03253490

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection.

Press lock and open clip in direction of arrow.

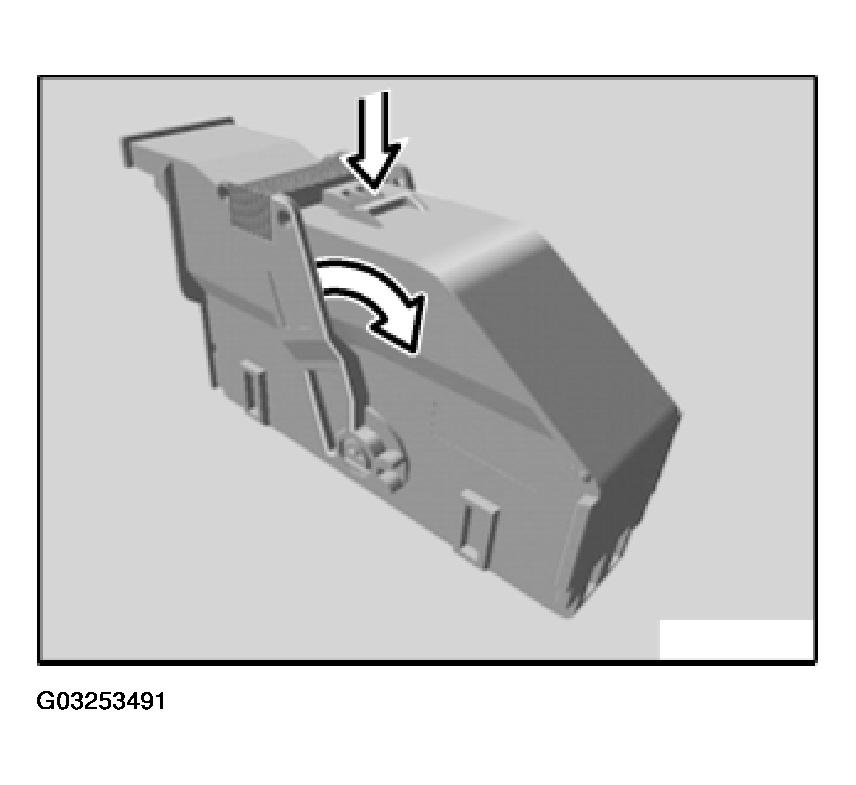

Fig 2: Opening Clip

G03253491

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection.

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

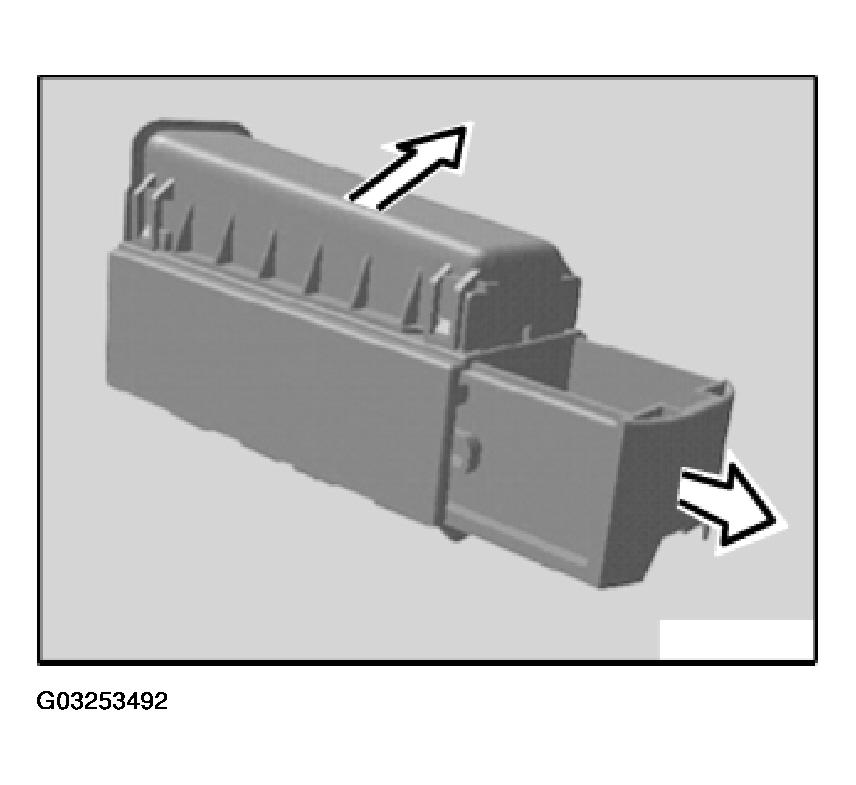

Fig 3: Opening Clip

G03253492

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

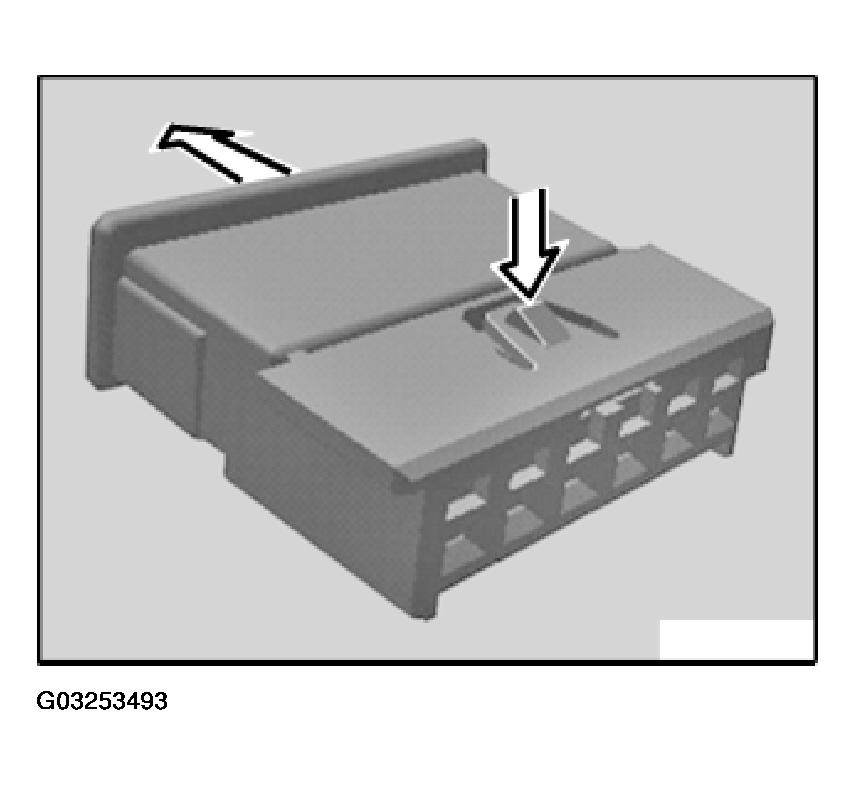

Fig 4: Disconnecting Plug Connection

G03253493

Courtesy of BMW OF NORTH AMERICA, INC.

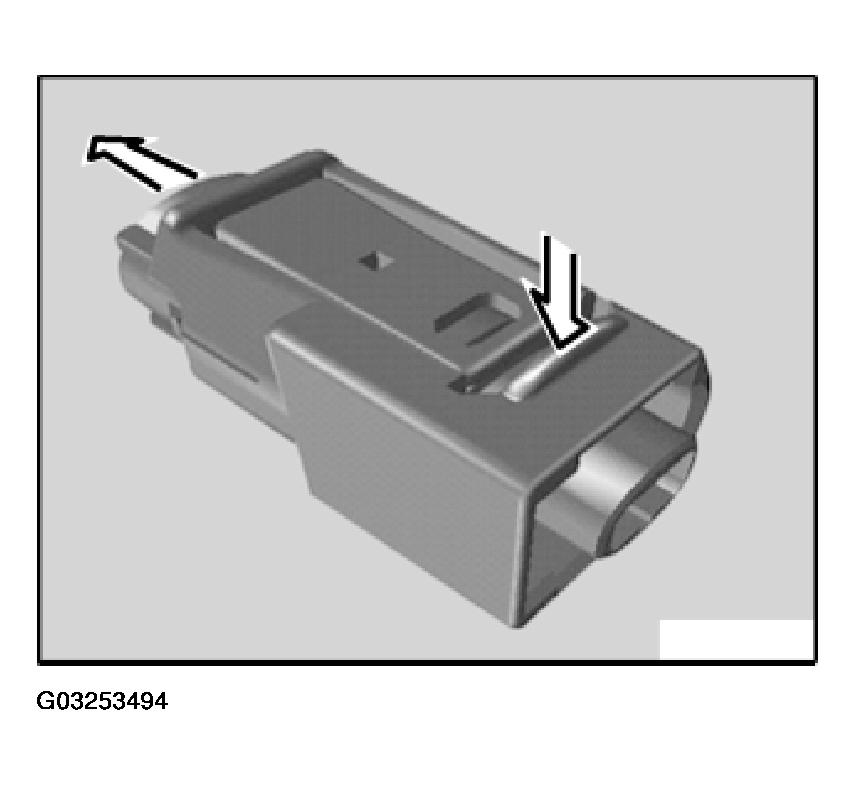

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Pressing Lock And Disconnecting Plug Connection

G03253494

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

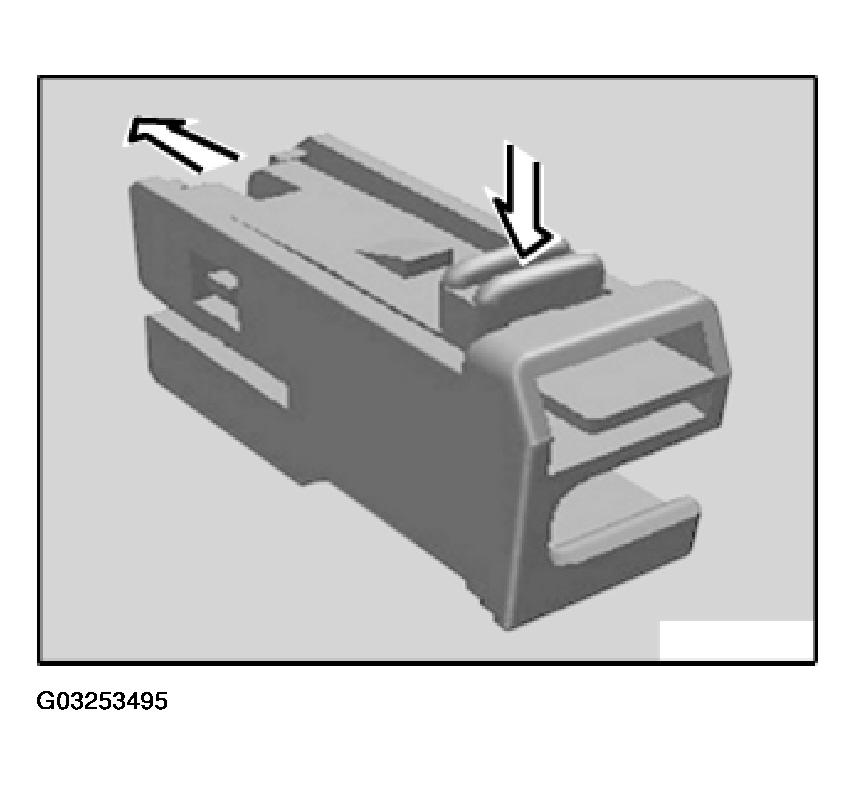

Fig 6: Pressing Lock And Disconnecting Plug Connection

G03253495

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

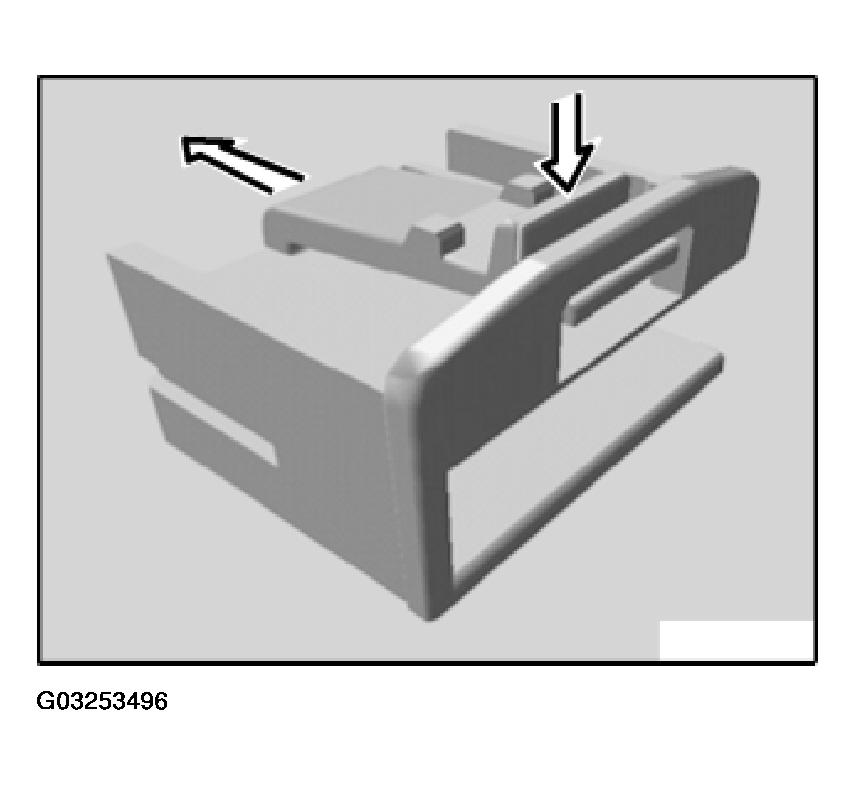

Fig 7: Pressing Lock And Disconnecting Plug Connection

G03253496

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

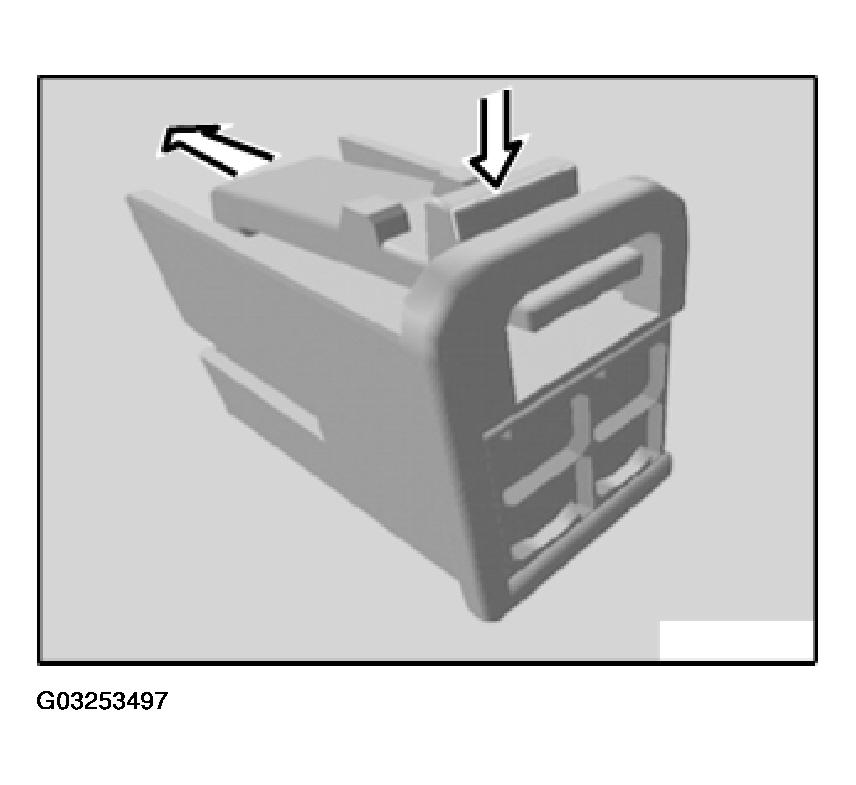

Fig 8: Pressing Lock And Disconnecting Plug Connection

G03253497

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

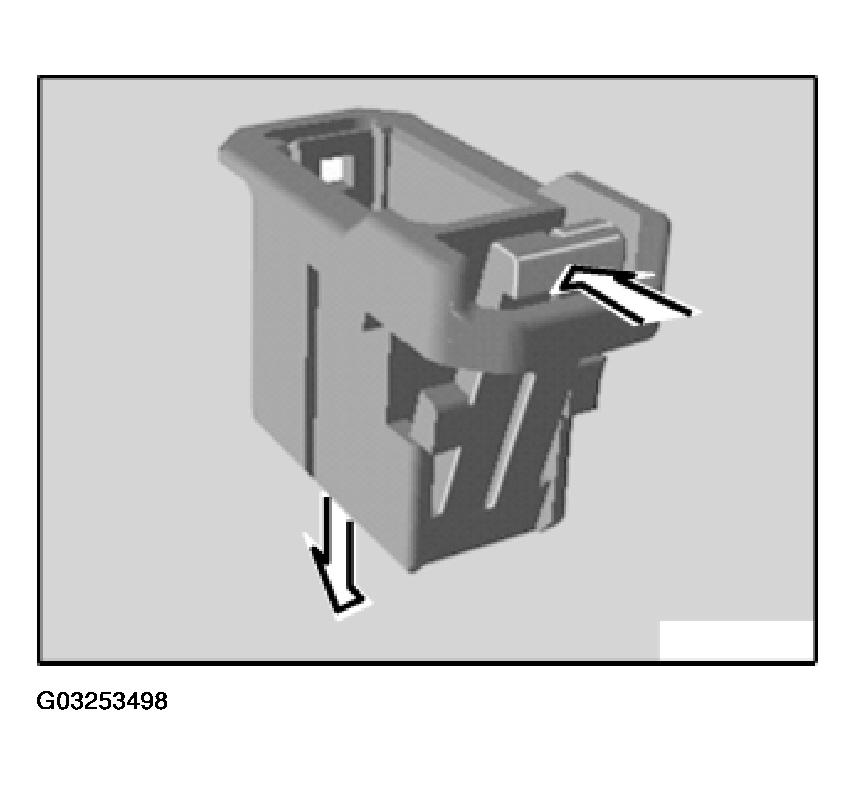

Fig 9: Pressing Lock And Disconnecting Plug Connection

G03253498

Courtesy of BMW OF NORTH AMERICA, INC.
