61 31 405 Removing and installing/replacing remote control for garage door opening

WARNING: This page is about a different variant/trim than selected.

Remove front ceiling light. Refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT .

Press out remote control for garage door opening (2) from inside.

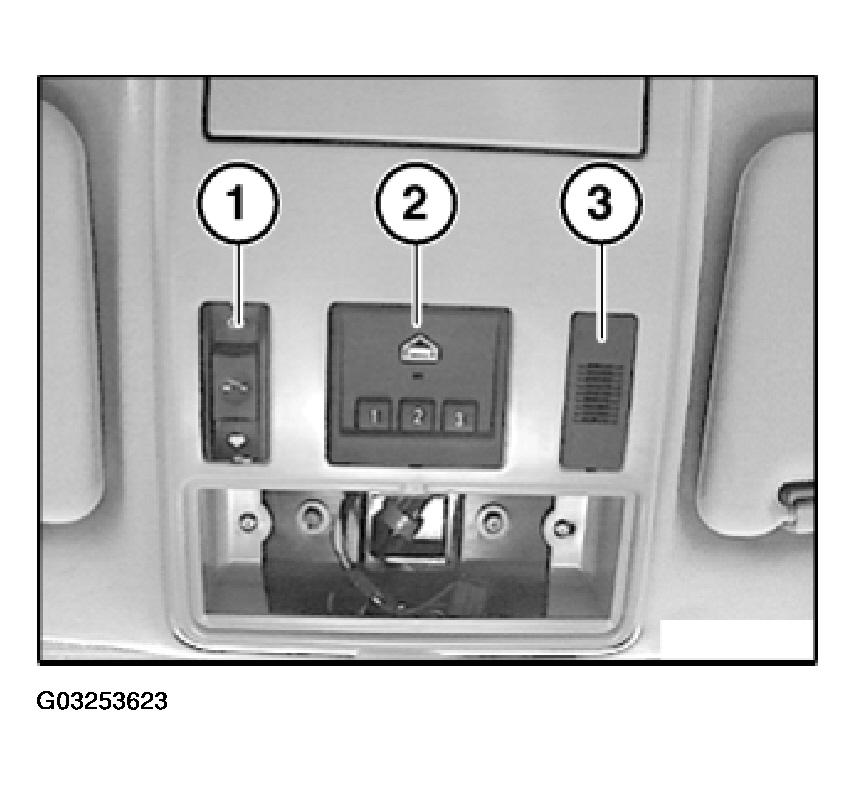

Fig 1: Pressing Out Remote Control For Garage Door Opening
G03253623Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug.

NOTE: Initialize garage door opener.
  1. (1) = Switch for sunroof.
  2. (3) = Hands-free microphone.
