61 31 382 Replacing level switch for coolant

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

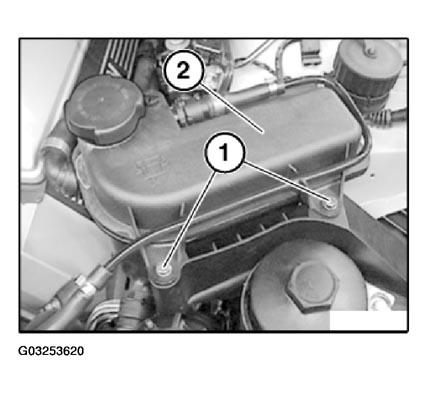

Release screws (1).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Raise expansion tank (2) slightly.

Installation:

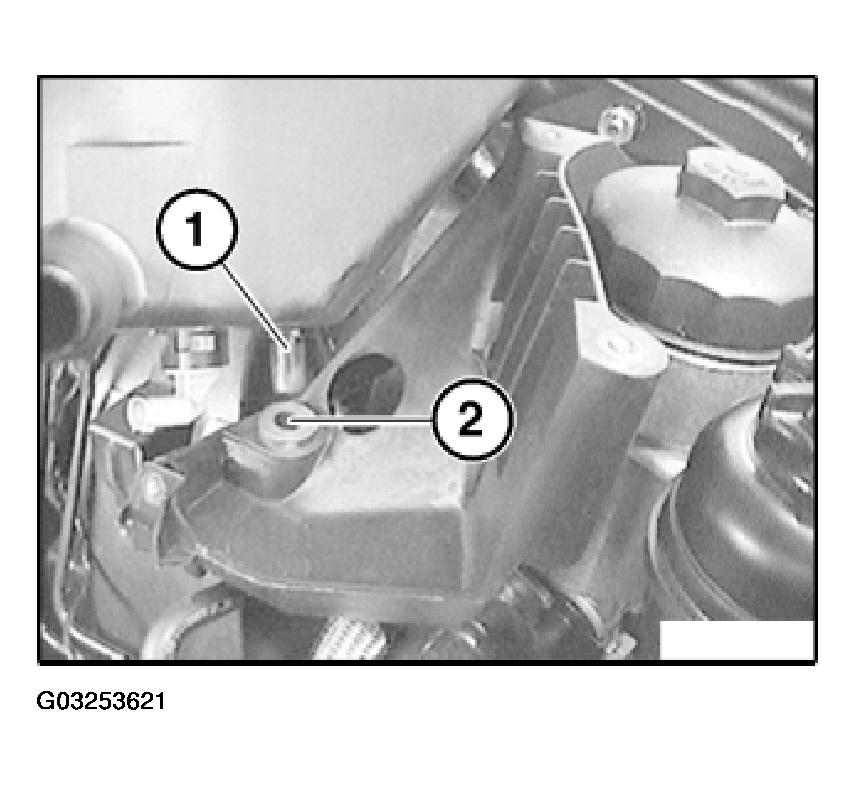

Insert locating pin (1) into locating bore (2).

Fig 2: Inserting Locating Pin Into Locating Bore

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not damage connected water hoses.

Reposition expansion tank as far as possible until coolant level switch (2) forms the highest point. This will prevent coolant from escaping on opening.

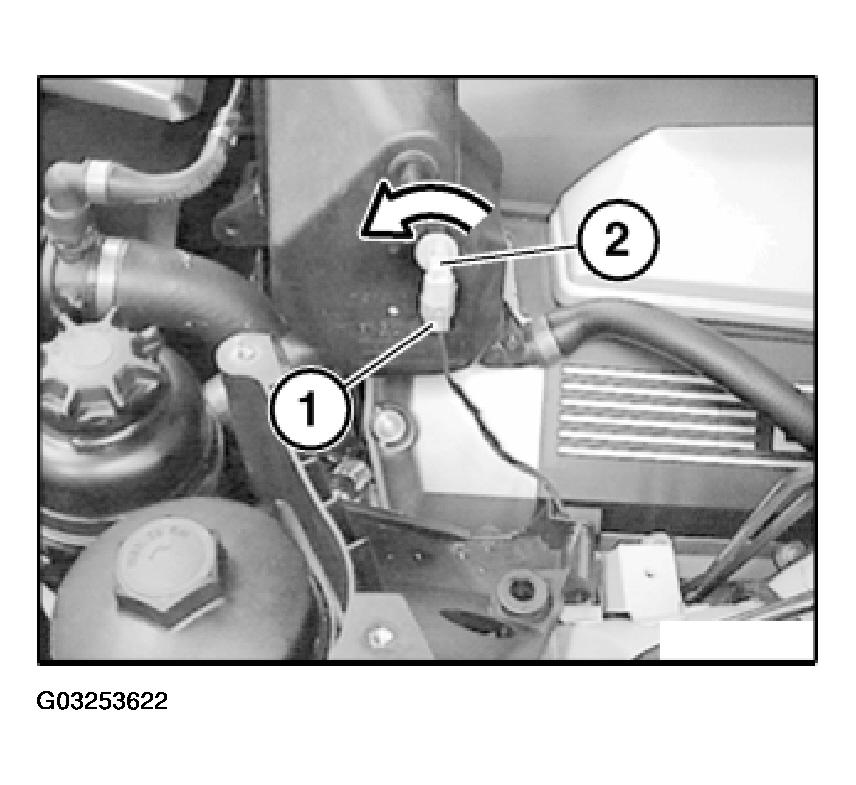

Fig 3: Removing Coolant Level Switch

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, catch escaping coolant and feed back in later.

Disconnect plug connection (1).

Turn coolant level switch (2) approx. 90° in direction of arrow and pull out.
