61 31 315 Replacing level switch for brake fluid

WARNING: This page is about a different variant/trim than selected.

Remove cover. Refer to 51 71 080 REMOVING AND INSTALLING/REPLACING HEATER BULKHEAD .

Disconnect plug connection (1).

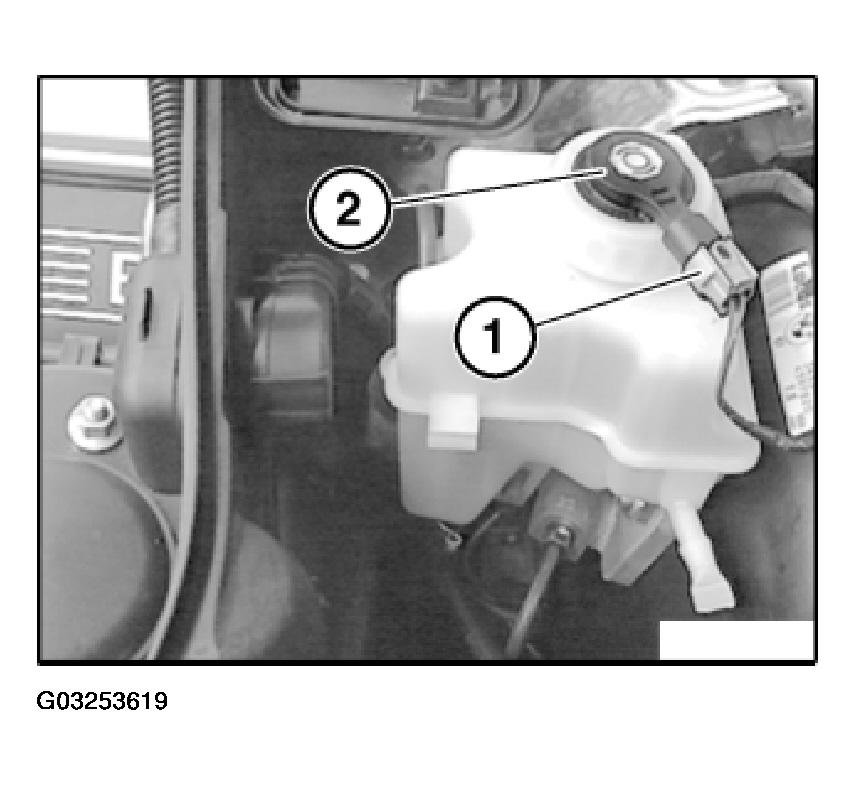

Fig 1: Removing Level Switch For Brake Fluid
G03253619Courtesy of BMW OF NORTH AMERICA, INC.

Release screw ring and remove level switch for brake fluid (2).
