61 31 273 Removing and installing/replacing air suspension switch

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Partially fit special tool 00 9 317 as illustrated.

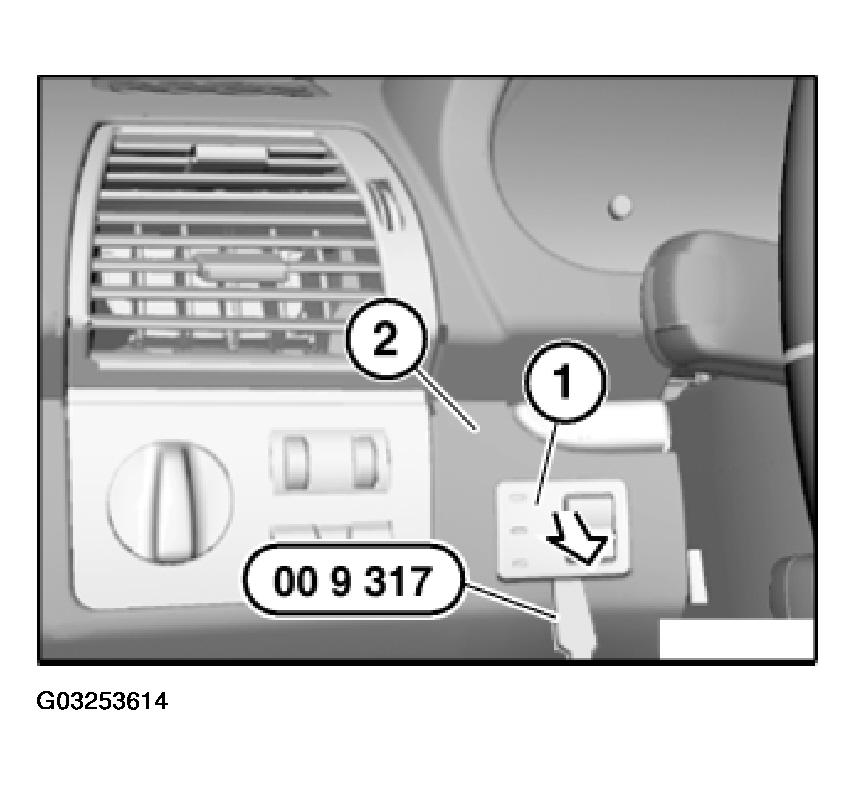

Fig 1: Removing Air Suspension Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Lever air suspension switch (1) out of instrument panel trim (2).

Unlock associated plug connection and disconnect.

Remove air suspension switch (1).
