61 31 241 Removing and installing/replacing engine hood contact switch

WARNING: This page is about a different variant/trim than selected.

Disconnect plug connection (1).

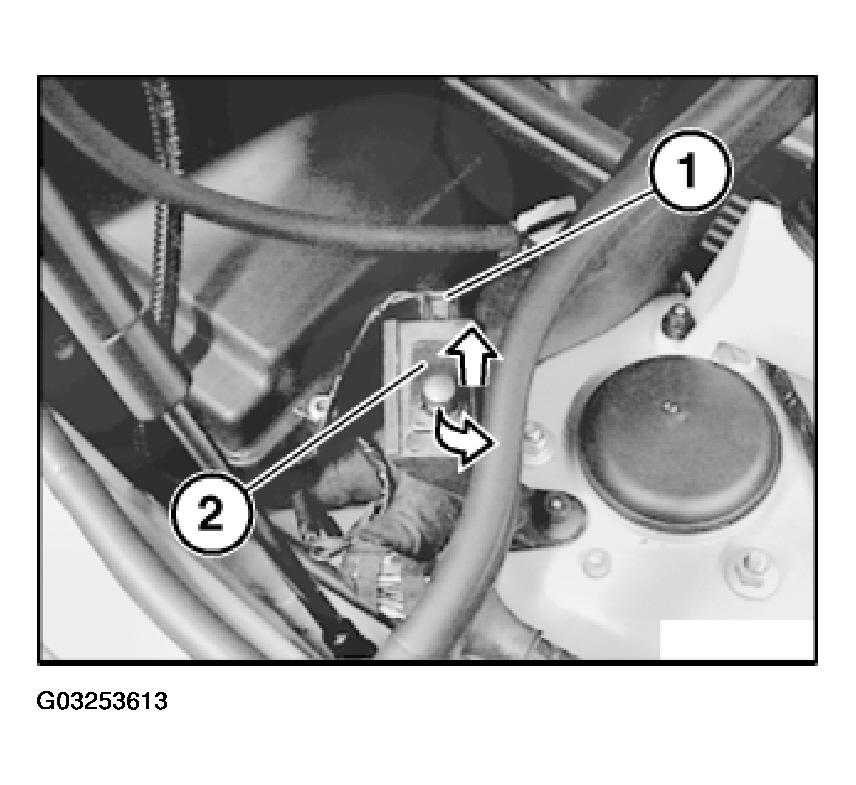

Fig 1: Removing Engine Hood Contact Switch
G03253613Courtesy of BMW OF NORTH AMERICA, INC.

Move engine hood contact switch (2) in direction of arrow and pull out.
