61 31 228 Replacing switch on sport steering wheel (with connected AIRBAG unit)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: There 2 screw variants:

Release screws (1) and (2).

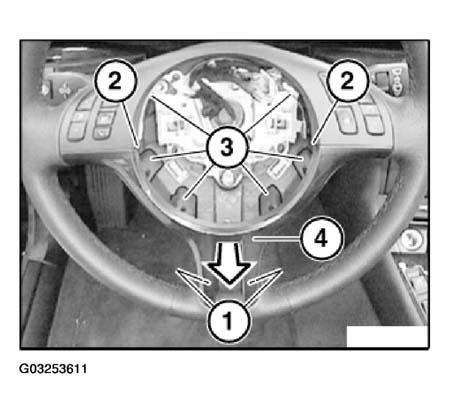

Fig 1: Disconnecting Plug Connection Underneath

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip complete trim (4) in direction of arrow from fixtures (3).

Disconnect plug connection underneath.

Release screws (1).

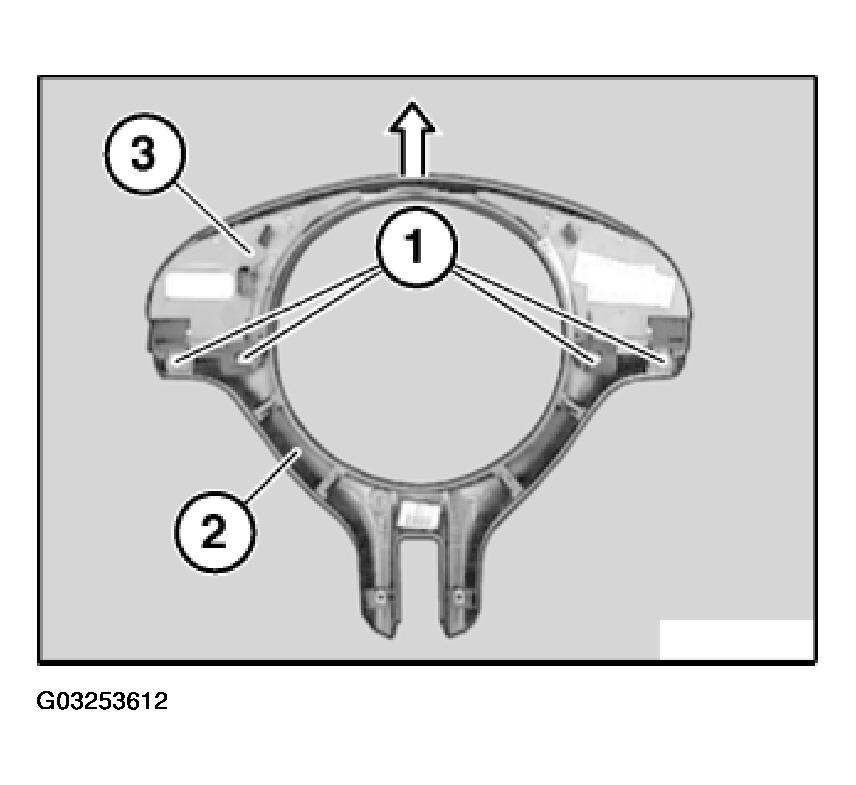

Fig 2: Detaching Switch On Sport Steering Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Detach switch on sport steering wheel (3) in direction of arrow from trim (2).

Installation:

Ensure gap dimension is uniform between trim (2) and switch on sport steering wheel (3).
