61 31 224 Replacing switch on impact cushion for left or right AIRBAG

WARNING: This page is about a different variant/trim than selected.

Remove AIRBAG unit from steering wheel. Refer to DRIVER-SIDE AIR BAG MODULE .

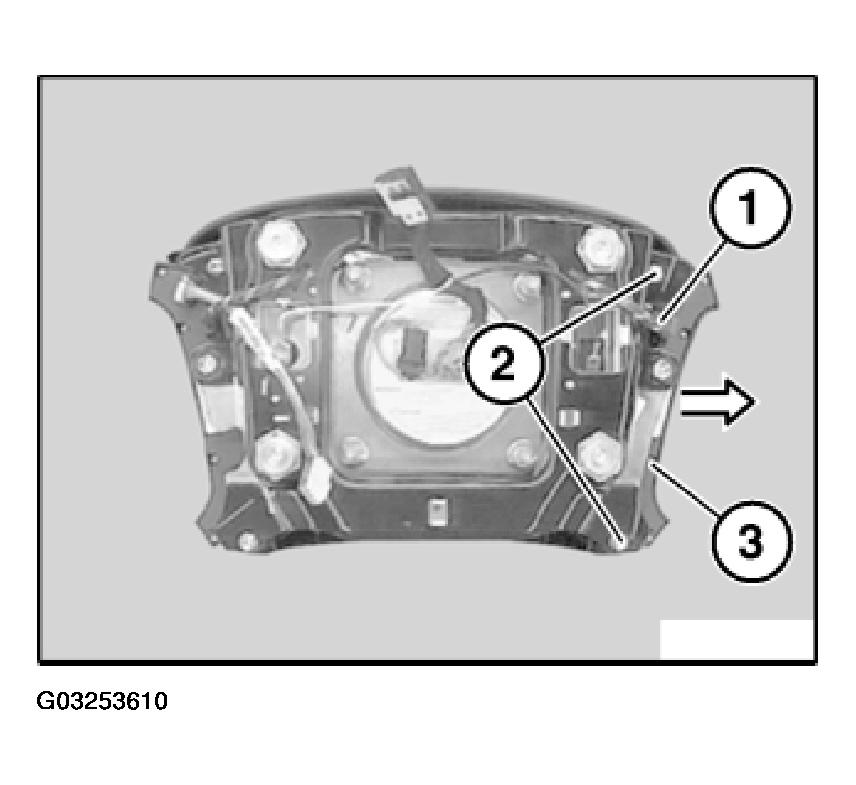

Illustration shows removal of switch on impact cushion for AIRBAG on left

Disconnect plug connection (1).

Fig 1: Removing Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (2).

Remove switch on impact cushion for AIRBAG (3) in direction of arrow.
